RTD 501

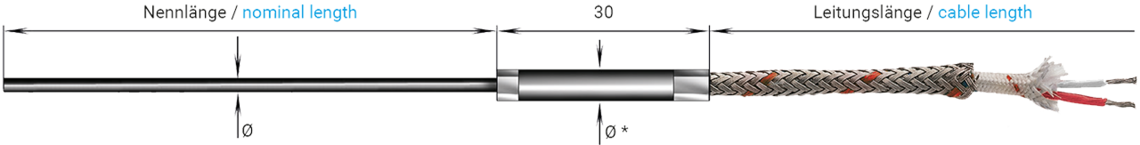

Mineral insulated resistance thermometer with PFA connection cable TGV
Mineral insulated resistance thermometer with PFA connection cable TGV
Application
Mineral insulated resistance thermometer with connecting cable can be constructed with a 1 x or 2 x Pt100. The sheath diameter is constructed according to customer requirements
Construction
| RTD | - 1 x Pt 100 class A - 2 x Pt 100 class A - 1 x Pt 100 class B - 2 x Pt 100 class B |
|---|---|
| Circuit of inner wires | - 2-wire circuit - 3-wire circuit - 4-wire circuit |
| Sheath diameter | - 1,5 mm - 3,0 mm - 4,5 mm - 6,0 mm - other sheath diameter - acc. to customer’s request |
| Type of cable ends | - bare ends - cable lugs M4 - end sleeves - tinned - other cable ends - acc. to customer’s request |
| Connection cable | - 1,0 m - 1,5 m - 2,0 m - 2,5 m - 3,0 m - 4,0 m - 5,0 m - 10,0 m - other lengths - acc. to customer’s request |
| Measuring range | ▪ -50 up to +400°C with kink protection ▪ -50 up to +600°C with kink protection ▪ -50 up to +400°C without kink protection ▪ -50 up to +600°C without kink protection |
| Nominal length | According to customer requests. Please specify in mm. |
| Connection cable | PFA connection cable TGV |
