T434

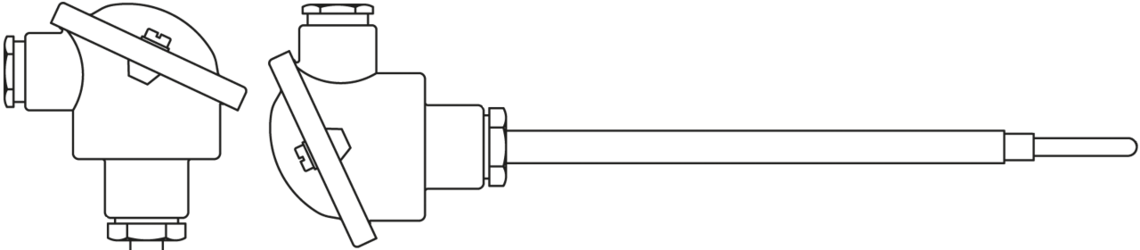

plug-in protecting armatures for gauge slides Ø 3 mm
plug-in protecting armatures for gauge slides Ø 3 mm
Construction
| Protecting tube form VKS with tapered measuring tip | 1.4571 Ø 12 x 2,5 mm |
|---|---|
| Gauge slide | - without gauge slide - with gauge slide - acc. to customer’s request |
| Screwed thread | - G 1/2 A - clamping screw connection - 1/2" NPT - clamping screw connection - without crewed thread |
| Connection head | - B (KE 122) - DAN-WZ (KE 202) - DAN-Z (KE 064) - DAN-WS (KE 204) - DAN-S (KE 066) - BNK (KK 029) - without connection head - other connection head - acc. to customer’s request |

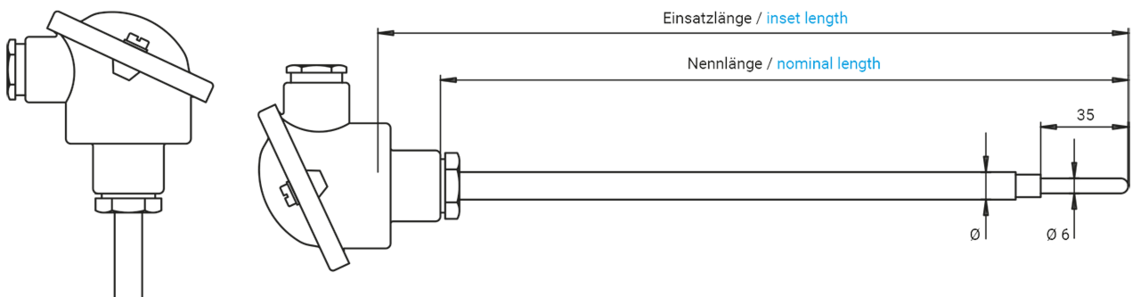

| Nominal / inset length | - 250/275 mm - 290/315 mm - 350/375 mm - 380/405 mm - 410/435 mm - 500/525 mm - 530/555 mm - 630/655 mm - other length - acc. to customer’s request |
1.4571 Ø 12 x 2,5 mm
- without gauge slide
- with gauge slide - acc. to customer’s request
- G 1/2 A - clamping screw connection
- 1/2" NPT - clamping screw connection
- without crewed thread
- B (KE 122)
- DAN-WZ (KE 202)
- DAN-Z (KE 064)
- DAN-WS (KE 204)
- DAN-S (KE 066)
- BNK (KK 029)
- without connection head
- other connection head - acc. to customer’s request
- 250/275 mm
- 290/315 mm
- 350/375 mm
- 380/405 mm
- 410/435 mm
- 500/525 mm
- 530/555 mm
- 630/655 mm
- other length - acc. to customer’s request
