T999
Surface thermocouple
Surface thermocouple
Application

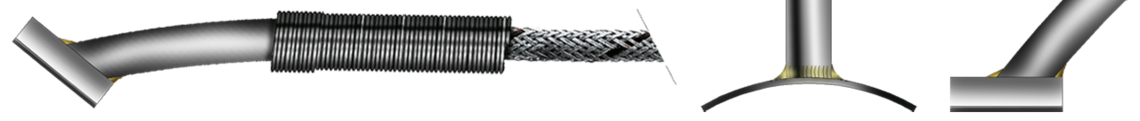

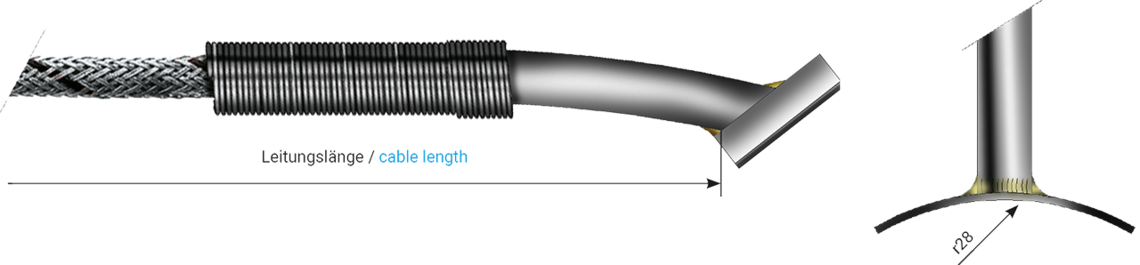

The surface thermocouple T999 is appropriate for the temperature collection at conduits, generally spoken, at all cylindric dimensions as well as at plastics processing machines. It gets fixed by a pipe clamp. The stainless steel wire armouring of the connection cable is used as mechanical protection.
Additional information
- Also available in type K, T or L and classes 1 or 2.
- The on the left mentioned technical data are standard datan.
- Individual parameters, e. g. connection cable, double thermocouple, radius or cable end can be added or modified on requestn.
Construction
| Thermocouple | The following thermocouple types can be selected depending on the application: class 2 - 1 x type J - 1 x type K - other thermocouples - acc. to customer’s request |
|---|---|
| Measuring point | form B, grounded measuring point |
| Material | 1.4571 |
| Nominal length | - 38 mm - other nominal length - acc. to customer’s request |
| Diameter | Ø 6,0 mm |
| Fix accessories | - sheet 15 x 30 mm, radius: 28 mm - other accessories - acc. to customer’s request |
| Temperature range | + 400°C |
| Connection cable | - extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C - extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C - other connection cables - acc. to customer’s request see also survey of connecting cables for thermocouples |
| Cable length | The length of the connection cable can be freely selected. Please specify in m. |
| Connection ends | - miniature thermoplug - standard plug - miniature socket - clips - bare ends - Lemo plug type - acc. to customer’s request - Lemo socket type - acc. to customer’s request - other cable ends - acc. to customer’s request |
The following thermocouple types can be selected depending on the application:
class 2
- 1 x type J
- 1 x type K
- other thermocouples - acc. to customer’s request
form B, grounded measuring point
1.4571
- 38 mm
- other nominal length - acc. to customer’s request
Ø 6,0 mm
- sheet 15 x 30 mm, radius: 28 mm
- other accessories - acc. to customer’s request
+ 400°C
- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C
- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C
- other connection cables - acc. to customer’s request
see also survey of connecting cables for thermocouples
The length of the connection cable can be freely selected. Please specify in m.
- miniature thermoplug
- standard plug
- miniature socket
- clips
- bare ends
- Lemo plug type - acc. to customer’s request
- Lemo socket type - acc. to customer’s request
- other cable ends - acc. to customer’s request
