T542

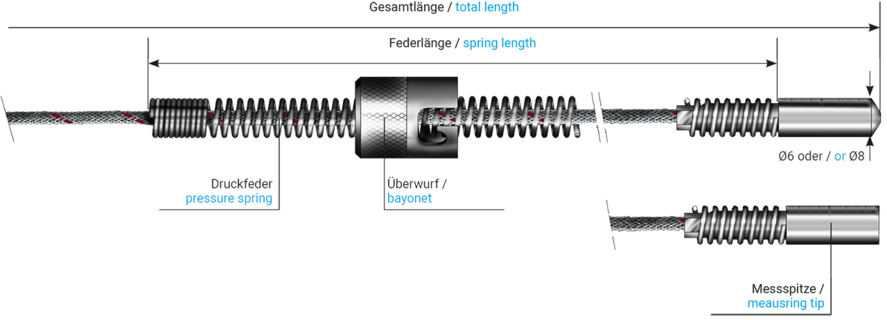

Bayonet resistance thermometer Pt100, Pt500, Pt1000
Application
Bayonet RTD sensors (bayonet resistance thermometers,) with protective sleeve are used in industrial process measurement, particularly for temperature monitoring on tools and machines in the plastics processing industry. As bayonet probe with Pt100, Pt500, or Pt1000 sensors, they provide precise and long term stable temperature measurement under demanding production conditions.
The bayonet locking system with threaded spring ensures secure mounting and a constant contact pressure at the measuring point. A rotatable bayonet cap allows immersion depth and mounting length to be adjusted to the specific application, which is essential for reproducible measurement results. Depending on the installation requirements, the sensors are available with a flat, angled, or spherical measuring tip.
The design of these bayonet sensors can be individually configured, for example with regard to sensor type, accuracy class A or B, connection type on iner wire, spring length, diameter, and tip geometry. Robust connection cables with stainless steel wire braiding provide mechanical protection, while freely selectable cable lengths and various connection ends or connectors ensure reliable integration into existing measurement and control systems.
These bayonet sensors, for example with flat measuring tip and protective sleeve, are ideally suited for precise, robust, and application-optimised temperature measurement in machine and plant engineering.
Outstanding features
- Precise temperature measurement with Pt100, Pt500, or Pt1000 sensors for reproducible results
- Flexible installation depth and immersion length thanks to the rotatable bayonet cap and threaded spring
- Customisable design for sensor type, accuracy class, spring length, diameter, tip shape, connection cable, and connectors
- Robust construction with stainless steel wire braiding for mechanical protection and long service life
- Easy integration into machines and plants with various cable ends and connection options
Additional information
- Also available as Pt 500 or Pt 1000 with limit deviations in classes A or B.
- The on the left mentioned technical data are standard data.
- Individual parameters, e. g. connection cable, spring length, double resistance thermometer in 3-or 4- wire circuit, cable end or higher temperature resistance can be added or modified on request.
- With a 2-wire circuit only one class accuracy class B accuracy can be confirmed.
- In addition to bayonet resistance sensors, bayonet thermocouples of type K and type J are also available for the plastics processing industry.
→ To the bayonet thermocouples type K and type J
For custom solutions or further information, please feel free to contact us by phone, email, or via our contact form.
Construction
| RTD | - 1 x Pt 100 - 2 x Pt 100 - other thermocouples - acc. to customer’s request |
|---|---|
| Limit deviation | - class A - class B |
| Limiting deviation | - class A - -30°C / +300°C - -100°C / +450°C - class B - -50°C / +500°C - -196°C / +600°C |
| Connection type of inner wire | - 2-wire circuit - other wires - acc. to customer’s request |
| Material | 1.4305 |
| Spring length | - 200 mm - other spring lengths - acc. to customer’s request |
| Diameter | - Ø 6,0 mm - Ø 8,0 mm |
| Bottom shape | - flat - 118° - spherical |
| Bayonet | - Ø i = 12,2 mm / 1 bajonet - Ø i = 12,2 mm / 2 bajonet - Ø i = 15,0 mm / 1 bajonet - Ø i = 15,0 mm / 2 bajonet dimension: __________ |
| Connection cable | - extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C - extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C - other connection cables - acc. to customer’s request see also survey of connecting cables for thermocouples |
| Cable length | The length of the connection cable can be freely selected. Please specify in m. |
| Connection ends | - miniature thermoplug - standard plug - miniature socket - clips - bare ends - Lemo plug type - acc. to customer’s request - Lemo socket type - acc. to customer’s request - other cable ends - acc. to customer’s request |
- 1 x Pt 100
- 2 x Pt 100
- other thermocouples - acc. to customer’s request
- class A
- class B
- class A - -30°C / +300°C - -100°C / +450°C
- class B - -50°C / +500°C - -196°C / +600°C
- 2-wire circuit
- other wires - acc. to customer’s request
1.4305
- 200 mm
- other spring lengths - acc. to customer’s request
- Ø 6,0 mm
- Ø 8,0 mm
- flat
- 118°
- spherical
- Ø i = 12,2 mm / 1 bajonet
- Ø i = 12,2 mm / 2 bajonet
- Ø i = 15,0 mm / 1 bajonet
- Ø i = 15,0 mm / 2 bajonet
dimension: __________
- extension cable strand/fiber glass/fiber glass/stainless steel wire armouring +400°C
- extension cable strand/PFA/fiber glass/stainless steel wire armouring +250°C
- other connection cables - acc. to customer’s request
see also survey of connecting cables for thermocouples
The length of the connection cable can be freely selected. Please specify in m.
- miniature thermoplug
- standard plug
- miniature socket
- clips
- bare ends
- Lemo plug type - acc. to customer’s request
- Lemo socket type - acc. to customer’s request
- other cable ends - acc. to customer’s request
