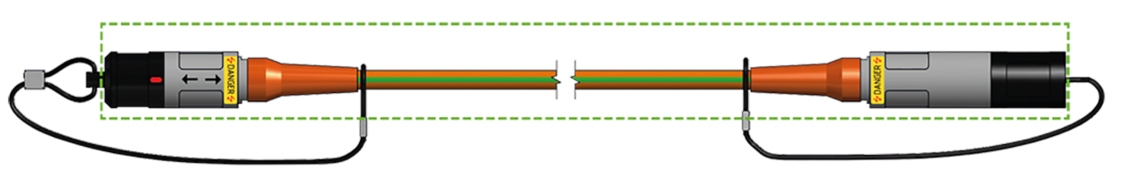

HV 4- and 1-channel extension cable with FEP insulated thermo channels type K
Application
Extension of 4- or 1-channel high voltage sensors type K
Outstanding features
- contact protection over all components
Additional information
Issue of HV test certificate with reference to batch number due to optimum traceability.
Optional: Test and repair of already used sensors on request.
SAB identification: item number, batch number, length
Cable data
| Connection cable | HV thermo cable type K |
|---|---|
| Insulation | FEP – green and white |
| Pair sheath | FEP – orange with green vertical stripes |
| Inner sheath | FEP – blue acc. to RAL 5024 |
| Outer sheath | PUR |
| Sheath colour | orange with green vertical stripes |
| Stranding | paired construction (for EMC) |
| Outer diameter | 4-channel: approx. 6,1 mm 1-channel: approx. 3,4 mm |
| Dielectric strength | 4-channel: 1000 V AC 1-channel: 1000 V AC over single channel |
| Temperature range | fixed laying: -50°C / +150°C flexible application: -40°C / +150°C |
HV thermo cable type K
FEP – green and white
FEP – orange with green vertical stripes
FEP – blue acc. to RAL 5024
PUR
orange with green vertical stripes
paired construction (for EMC)
4-channel: approx. 6,1 mm
1-channel: approx. 3,4 mm
4-channel: 1000 V AC
1-channel: 1000 V AC over single channel
fixed laying: -50°C / +150°C
flexible application: -40°C / +150°C
Connectors
| Lemo Redel connector | male and female, with orange kink protection sleeve and black protecting cap
4-channel: 8-pin, B-coded 1000 V AC voltage-stable - IP 67 when connected
2-channel: 2-pin, C-coded 1000 V AC voltage-stable - IP 67 when connected |
|---|
male and female, with orange kink protection sleeve and black protecting cap
4-channel: 8-pin, B-coded
1000 V AC voltage-stable - IP 67 when connected
2-channel: 2-pin, C-coded
1000 V AC voltage-stable - IP 67 when connected
Tests
| Cable test | over pair sheath in water bath – 5000 V AC – 5 min – with reference to EN 50264-2-1 |
|---|---|
| Product test | Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE). Control of contact protection towards outside – 3000 V/1 min AC |
over pair sheath in water bath –
5000 V AC – 5 min – with reference to EN 50264-2-1
Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE).
Control of contact protection towards outside – 3000 V/1 min AC
Configuration examples

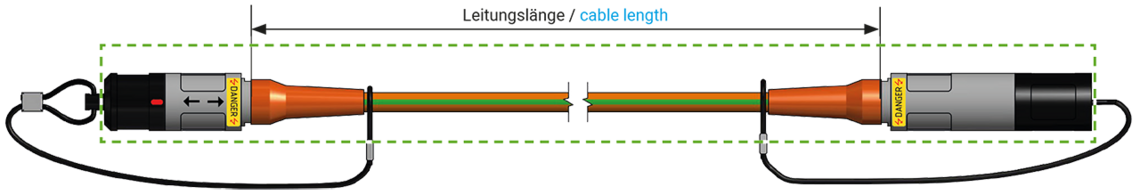

| item no. | Connection cable length | Channels | |
|---|---|---|---|
| T141-054-030 | 1000 mm | 4 | Send inquiry |
| T141-054-143 | 2000 mm | 4 | Send inquiry |
| T141-058-575 | 3000 mm | 4 | Send inquiry |
| T141-058-576 | 5000 mm | 4 | Send inquiry |
| T141-062-840 | 1000 mm | 1 | Send inquiry |
| T141-062-843 | 3000 mm | 1 | Send inquiry |
| T141-062-844 | 5000 mm | 1 | Send inquiry |
Total lengths can be realised on customer’s request.
