HF SABmed S

Power supply cable

Application

UL approved power supply cable suitable for permanent bending and torsion. This cable can be used for the areas of application including the following:

  • Coagulation
  • Orthopaedics
  • Ophthalmology
  • Surgery robots
  • Operating tables

Outstanding features

  • UL approved
  • 2 MOP tested

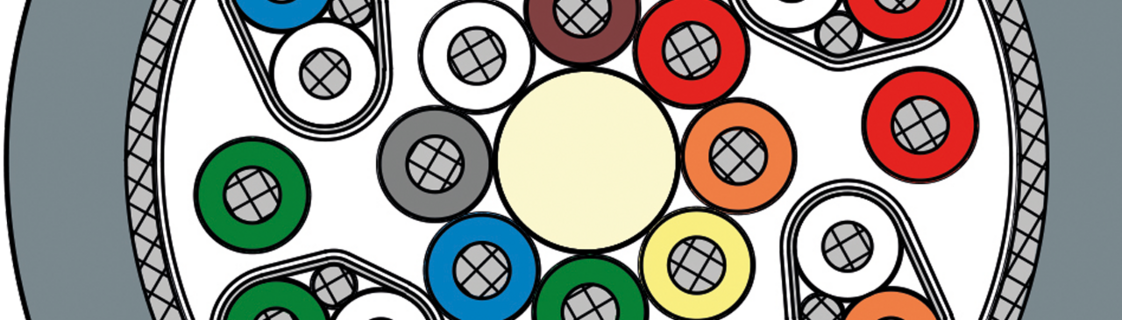

Typical Construction

Conductor

finely-stranded, silver-plated copper

Insulation

FEP

Screen

highly-efficient tinned copper braid

Sheath material

biocompatible SABmed S

Conductor

finely-stranded, silver-plated copper

Insulation

FEP

Screen

highly-efficient tinned copper braid

Sheath material

biocompatible SABmed S

Technical Data

Voltage

up to 900 V

Temperature range

-40°C/+180°C

Testing voltage

selection test acc. to 2 MOP

Cleaning

autoclavable, standard whipe disinfection

Surface

„non-sticky“

Application

permanent bending and torsion

Voltage

up to 900 V

Temperature range

-40°C/+180°C

Testing voltage

selection test acc. to 2 MOP

Cleaning

autoclavable, standard whipe disinfection

Surface

„non-sticky“

Application

permanent bending and torsion

Highly flexible cables according to your special requirements
