Biocompatible drive cable

Application

  • Drive cable
  • Treatment unit
  • Intraoral camera

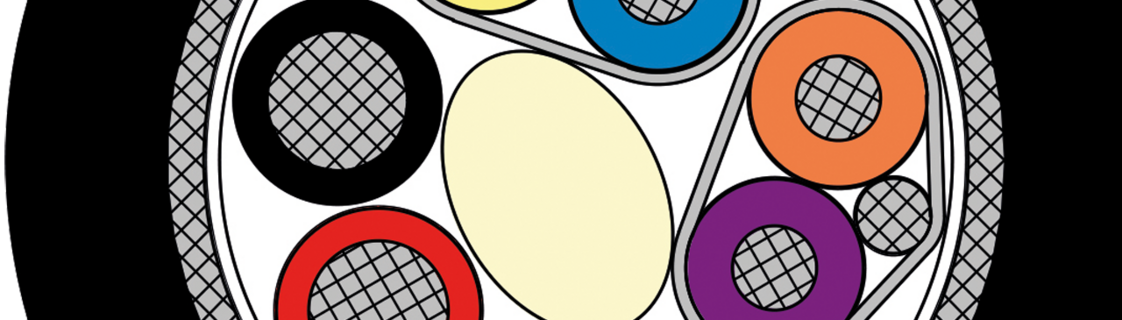

Typical Construction

Conductor

finely-stranded, silver-plated copper

Insulation

FEP or PFA

Screen

highly-efficient tinned or silver copper braid

Sheath material

biocompatible SABmed S

Conductor

finely-stranded, silver-plated copper

Insulation

FEP or PFA

Screen

highly-efficient tinned or silver copper braid

Sheath material

biocompatible SABmed S

Technical Data

Voltage

up to 900 V

Temperature range

-40°C/+180°C

Testing voltage

selection test acc. to 2 MOP

Cleaning

autoclavable, standard whipe disinfection

Surface

„non-sticky“

Application

permanent bending and torsion

Voltage

up to 900 V

Temperature range

-40°C/+180°C

Testing voltage

selection test acc. to 2 MOP

Cleaning

autoclavable, standard whipe disinfection

Surface

„non-sticky“

Application

permanent bending and torsion

Highly flexible cables according to your special requirements

Family business for construction and production since 1947

Please send us your inquiry
