CATLine CAT 7A RT
CAT 7A Gigabit Ethernet cable, suitable for robots with UL recognition, CSA approval

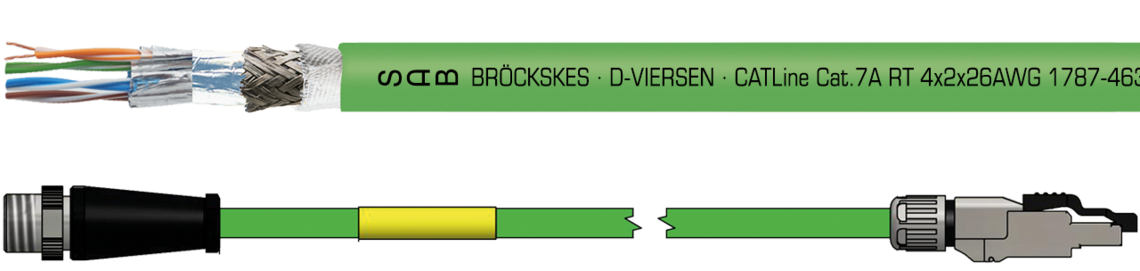

Marking for CATLine CAT 7A RT: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.7A RT 4x2x26AWG 1787-4631 UL AWM Style 20549 80°C 300V CSA AWM I/II A/B 80°C 300V FT2 CE
Application
Our robot-compatible CAT 7 and CAT 7A Industrial Ethernet cables are suitable for use under harsh industrial conditions, e.g. high temperatures, contamination with oils and greases, aggressive chemicals or humidity, especially in automation.
Outstanding features
- UL recognized, CSA approved
- suitable for robots
- halogen-free
- flame retardant and self-extinguishing
- very good oil resistance
- good against aggressive chemicals
Additional information
- +90°C on request!
- also possible as harnessed cable with M12 or RJ 45 plug
Construction
| Dimension | 4 x 2 x 26 AWG + 4 x 2 x 24 AWG |
|---|---|
| Conductor | bare copper strands, fine wires |
| Insulation | special polymer |
| Colour code | white-blue/blue, white-orange/orange, white-green/green, white-brown/brown |
| Stranding | cores twisted to pairs, pairs screened with foil, pairs together |
| Screen | aluminized non-woven tape and tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR |
| Sheath colour | green (similar RAL 6018) |
4 x 2 x 26 AWG + 4 x 2 x 24 AWG
bare copper strands, fine wires
special polymer
white-blue/blue, white-orange/orange, white-green/green, white-brown/brown
cores twisted to pairs, pairs screened with foil, pairs together
aluminized non-woven tape and tinned copper braiding
non-woven tape
PUR
green (similar RAL 6018)
Technical data
| Peak operating voltage | max. 90 V |
|---|---|
| Voltage UL/CSA | 300 V |
| Testing voltage | core/core 2000 V core/screen 2000 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d |
| Torsion angle | up to ± 180°/m |
| Temperature range | VDE fixed laying: -40°C/+70°C VDE flexible application: -40°C/+70°C UL: up to + 80°C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Flame test | UL Horizontal Flame Test FT2 |
| Oil resistance | |
| Characteristic impedance (100 MHz) | 100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-9-2 + VDE 0819-9-2 / CAT 7A |
| Flexibility | very good |
| UL Style | 20549 |
| Application | suitable for EtherCAT and EtherNET/IP applications |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 90 V
300 V
core/core 2000 V
core/screen 2000 V
fixed laying: 5 x d
flexible application: 10 x d
up to ± 180°/m
VDE fixed laying: -40°C/+70°C
VDE flexible application: -40°C/+70°C
UL: up to + 80°C
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
UL Horizontal Flame Test FT2
100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency
with reference to EN 50288-9-2 + VDE 0819-9-2 / CAT 7A
very good
20549
suitable for EtherCAT and EtherNET/IP applications
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Approx. core-ø | Copper figure | Cable weight ≈ | Outer-ø ± 5% | |
|---|---|---|---|---|---|---|
| L17874631 | 4 x 2 x 26 AWG | 1,5 mm | 38,5 kg/km | 83 kg/km | 8,9 mm | Send inquiry |
| L17874431 | 4 x 2 x 24 AWG | 1,6 mm | 44,0 kg/km | 98 kg/km | 9,3 mm | Send inquiry |
Other dimensions and colours are possible on request.
