CATLine CAT 7A DR
reeling CAT 7A Gigabit Ethernet cable
Marking for CATLine CAT 7A DR: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.7A DR 4x2x26AWG 1739-4651 CE
Application
CAT 7A Gigabit Ethernet cable for reelable use. The coilable CAT 7A cable with small bending radius has been designed for different applications where higher data volumes have to be transmitted safely. Exemplary applications are theatre technology, signal transmission of mobile screen cleaning systems or high-bay warehouse technology.
Outstanding features
- halogen-free
- very good oil resistance
- very good weather resistance
- reeling cable
- good against aggressive chemicals
Additional information

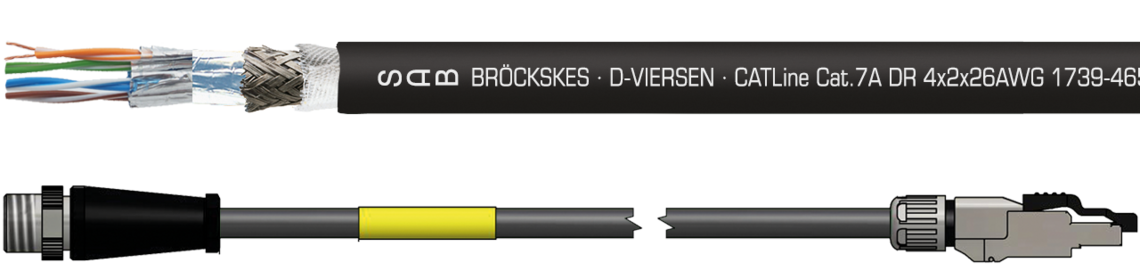

also possible as harnessed cable with M12 or RJ 45 plug
Construction
| Conductor | bare copper strands, fine wires |
|---|---|
| Insulation | special polymer |
| Colour code | white-blue/blue, white-orange/orange, white-green/green, white-brown/brown |
| Stranding | cores twisted to pairs, pairs screened with foil, pairs together |
| Screen | aluminized non-woven tape and tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR / supporting braid / PUR |
| Sheath colour | black (RAL 9005) |
bare copper strands, fine wires
special polymer
white-blue/blue, white-orange/orange, white-green/green, white-brown/brown
cores twisted to pairs, pairs screened with foil, pairs together
aluminized non-woven tape and tinned copper braiding
non-woven tape
PUR / supporting braid / PUR
black (RAL 9005)
Technical data
| Peak operating voltage | max. 90 V |
|---|---|
| Testing voltage | core/core 750 V core/screen 750 V |
| Min. bending radius | for laying and installation (fixed laying): 5 x d for repeated winding action (flexible): 10 x d guided on pulleys (flexible): 12 x d |
| Temperature range VDE | fixed laying: -50°C/+90°C flexible application: -40°C/+90°C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Oil resistance | |
| Characteristic impedance (100 MHz) | 100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-9-2 / CAT 7A |
| Weather resistance | very good |
| Application | suitable for EtherCAT and EtherNET/IP applications |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 90 V
core/core 750 V
core/screen 750 V
for laying and installation (fixed laying): 5 x d
for repeated winding action (flexible): 10 x d
guided on pulleys (flexible): 12 x d
fixed laying: -50°C/+90°C
flexible application: -40°C/+90°C
acc. to IEC 60754-1 + VDE 0482-754-1
100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-9-2 / CAT 7A
very good
suitable for EtherCAT and EtherNET/IP applications
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | max. core-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ |
Tensile strength max. | |
|---|---|---|---|---|---|---|---|
| L17394651 | 4 x 2 x 26 AWG | 1,6 mm | 10,5 mm | 38,5 kg/km | 117 kg/km | 200 N | Send inquiry |
max.
Other dimensions and colours are possible on request.
