CATLine CAT 6A DR
reeling CAT 6A Gigabit Ethernet cable
Marking for CATLine CAT 6A DR: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.6A DR 4x2x26AWG 1639-4651 CE
Application
The reelable CAT 6A Gigabit Ethernet cable is designed for various applications. In addition to the very good oil resistance, the cable is extremely weather-resistant and has a very small bending radius: For laying and assembly (fixed): 5 x d; For repeated winding (moved): 10 x d; Folded over deflection rollers (moved): 12 x d. Exemplary applications for the CAT 6A cable can be found in theatre technology, in signal transmission of mobile screen cleaning systems or in high-bay warehouse technology.
Outstanding features
- small bending radius
- oil resistant
- weather resistant
- halogen-free
Additional information

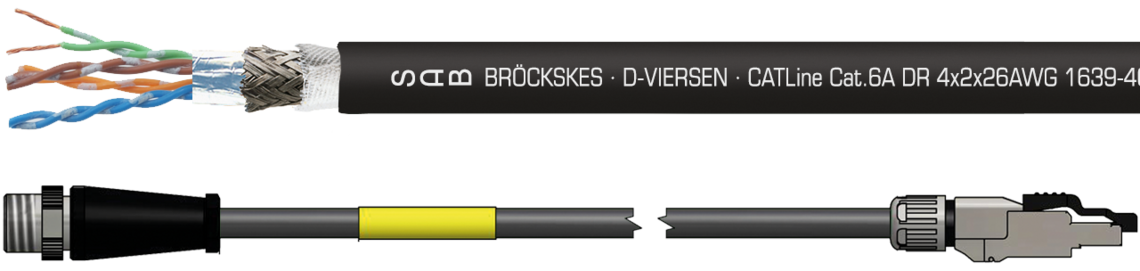

- also possible as harnessed cable with M12 or RJ 45 plug
Construction
| Dimensions | 4 x 2 x 26 AWG |
|---|---|
| Conductor | bare copper strands, fine wires |
| Insulation | special polymer |
| Colour code | white-blue/blue, white-orange/orange, white-green/green, white-brown/brown |
| Stranding | cores twisted to pairs, pairs together |
| Wrapping | non-woven tape |
| Screen | alu foil and tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR / supporting braid / PUR |
| Sheath colour | black (RAL 9005) |
4 x 2 x 26 AWG
bare copper strands, fine wires
special polymer
white-blue/blue, white-orange/orange, white-green/green, white-brown/brown
cores twisted to pairs, pairs together
non-woven tape
alu foil and tinned copper braiding
non-woven tape
PUR / supporting braid / PUR
black (RAL 9005)
Technical data
| Peak operating voltage | max. 90 V |
|---|---|
| Testing voltage | core/core 750 V core/screen 750 V |
| Min. bending radius | for laying and installation (fixed laying): 5 x d for repeated winding action (flexible): 10 x d guided on pulleys (flexible): 12 x d |
| Temperature range VDE | fixed laying: -50°C/+90°C flexible application: -40°C/+90°C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Oil resistance | |
| Characteristic impedance (100 MHz) | 100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-10-2 / CAT 6A |
| Weather resistance | very good |
| Application | suitable for EtherCAT and EtherNET/IP applications |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 90 V
core/core 750 V
core/screen 750 V
for laying and installation (fixed laying): 5 x d
for repeated winding action (flexible): 10 x d
guided on pulleys (flexible): 12 x d
fixed laying: -50°C/+90°C
flexible application: -40°C/+90°C
acc. to IEC 60754-1 + VDE 0482-754-1
100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-10-2 / CAT 6A
very good
suitable for EtherCAT and EtherNET/IP applications
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | max. core-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ |
Tensile strength max. | |
|---|---|---|---|---|---|---|---|
| L16394651 | 4 x 2 x 26 AWG | 1,05 mm | 8,7 mm | 32 kg/km | 81 kg/km | 200 N | Send inquiry |
max.
Other dimensions and colours are possible on request.
