Reeling DC charging cable
Application
The reeling DC charging cable from SAB Bröckskes has been specially developed for applications that require high mechanical strength and flexibility. Its reeling capability makes it ideal for use in automated charging systems where the cable is regularly wound and unwound.
An integrated strain relief with a tensile strength of up to 4000 N ensures effective strain relief and guarantees the longevity and reliability of the cable even under demanding conditions. The robust jacket protects against abrasion, oil, chemicals and the effects of the weather and enables use in a variety of environments.

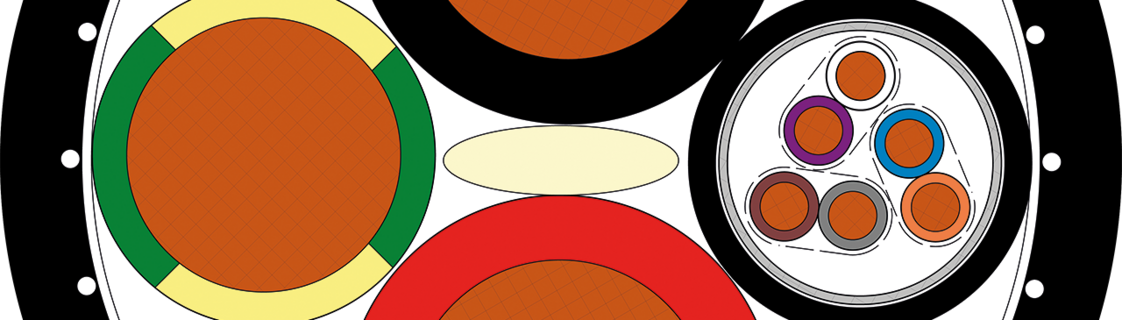

Construction
| Conductor | bare copper strands |
|---|---|
| Insulation | TPE |
| Colour code | 0,75 mm²: white, violet, orange, blue, brown, grey 25,0 mm²: green-yellow 50,0 mm²: red, black |
| Stranding | 0,75mm²: cores twisted to pairs, pairs stranded in layers |
| Wrapping | non-woven tape |
| Inner sheath | PUR, black (RAL 9005) |
| Stranding | all elements stranded in layers, filler in centre and interstices |
| Wrapping | non-woven tape |
| Supporting screen | high-tech yarn |
| Sheath material | PUR |
| Sheath colour | black (RAL 9005) |
bare copper strands
TPE
0,75 mm²: white, violet, orange, blue, brown, grey
25,0 mm²: green-yellow
50,0 mm²: red, black
0,75mm²: cores twisted to pairs, pairs stranded in layers
non-woven tape
PUR, black (RAL 9005)
all elements stranded in layers, filler in centre and interstices
non-woven tape
high-tech yarn
PUR
black (RAL 9005)
Technical data
| Nominal voltage | Uo/U 0,6/1 kV |
|---|---|
| Testing voltage | core/core 4000 V |
| Temperature range | fixed laying: -50/+90 °C flexible application: -40/+90 °C |
| Min. bending radius | for laying and installation: 5 x d for repeated winding action: 7,5 x d |
| Tensile strength | suspension unit max. 4000 N |
| Absence of harmful substances | gemäß RoHS-Richtlinie der Europäischen Union |
Uo/U 0,6/1 kV
core/core 4000 V
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
for laying and installation: 5 x d
for repeated winding action: 7,5 x d
suspension unit max. 4000 N
gemäß RoHS-Richtlinie der Europäischen Union
Dimensions
| item no. | Dimension | Approx. outer-ø | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| ... | 2 x 50,0 mm² + 1 x 25,0 mm² + (3 x 2 x 0,75 mm²) C | 28,0 mm | 1267,0 kg/km | 1604 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
