Transmission cable / Encoder cable
8 x (2 x 0,22mm²) D or 8 x 2 x 0,25mm²

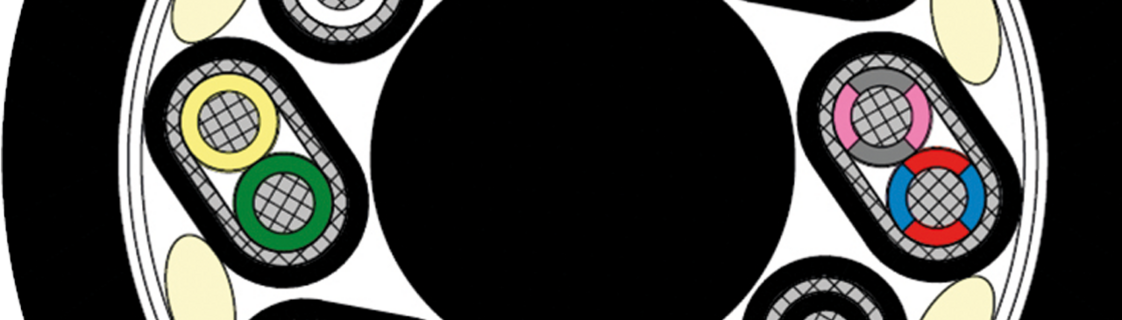

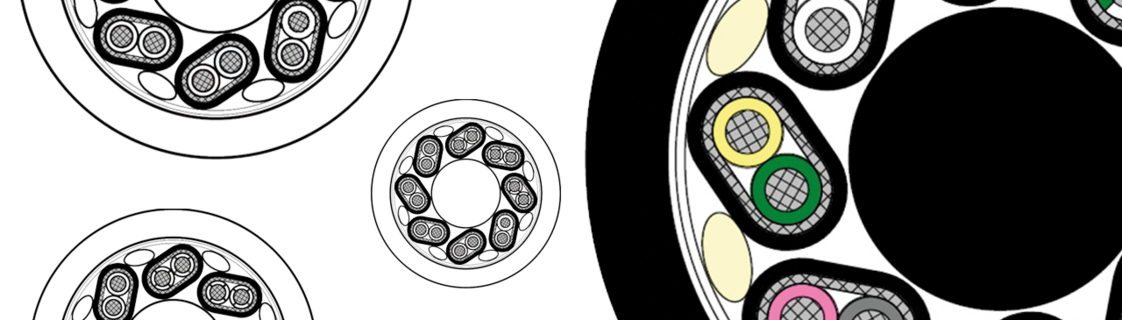

Construction
| Conductor | bare copper strands, fine wires acc. to IEC 60228 |
|---|---|
| Insulation | TPE |
| Colour code | with reference to DIN 47100 |
| Stranding | cores twisted to pairs, pairs in layers |
| Screen | wrapped with tinned copper wires |
| Sheath material | PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Sheath colour | black (RAL 9005) |
bare copper strands, fine wires acc. to IEC 60228
TPE
with reference to DIN 47100
cores twisted to pairs, pairs in layers
wrapped with tinned copper wires
PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
black (RAL 9005)
Technical Data
| Peak operating voltage | max. 350 V |
|---|---|
| Testing voltage | core/core 1500 V core/screen 1200 V |
| Temperature range | flexible application: -40/+90 °C |
| Min. bending radius | recommended: 10 x d |
| Torsion angle | up to ±180°/0,5 m |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
core/core 1500 V
core/screen 1200 V
flexible application: -40/+90 °C
recommended: 10 x d
up to ±180°/0,5 m
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Outer-ø | |
|---|---|---|---|
| L0789-9041 | 8 x (2 x 0,22 mm²) D | 12,2 mm | Send inquiry |
| L0796-9237 | 8 x 2 x 0,25 mm² | 8,9 mm | Send inquiry |
Other dimensions and colours are possible on request.
