Special CATLine CAT6
flexible, halogen-free Ethernet cable
Application
Operating depth up to 6.000 metres!
Outstanding features
- high tensile strength
- high tear strength
- high abrasion resistance
- high notch resistance
- high shear strength
- very good oil resistance
- good resistance against UV rays, ozone and vapours and resistant to water

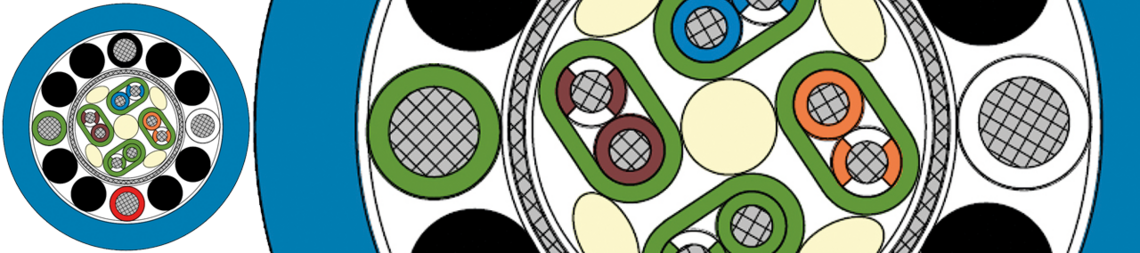

Construction
| Conductor | 24 AWG: silver-plated copper strands, fine wires 18 AWG: tinned copper strands, fine wires |
|---|---|
| Insulation | FEP |
| Colour code | 24 AWG: blue-white/blue, orange-white/orange, green-white/green, brown-white/brown 18 AWG: black, white, red, green |
| Stranding | 24 AWG: pairwise |
| Inner sheath | SABIX® |
| Stranding | 24 AWG: sheathed pairs stranded in a specially adjusted layer, wrapped with alu/PETP foil |
| Screen | 24 AWG: tinned copper braiding, optical coverage approx. 85% |
| Stranding | core: (4x2x24AWG)Cat.6 wrapped with PETP foil. Outer layer: cores 18 AWG wrapped with non-woven tape |
| Sheath material | PUR |
| Sheath colour | sky blue (RAL 5015) |
| Marking | SAB BRÖCKSKES · D-Viersen · Special CATLine Cat.6 (4x2x24AWG)Cat.6 + 4x18AWG <SAB Article no.> CE <SAB ID no.> |
24 AWG: silver-plated copper strands, fine wires
18 AWG: tinned copper strands, fine wires
FEP
24 AWG: blue-white/blue, orange-white/orange, green-white/green, brown-white/brown
18 AWG: black, white, red, green
24 AWG: pairwise
SABIX®
24 AWG: sheathed pairs stranded in a specially adjusted layer, wrapped with alu/PETP foil
24 AWG: tinned copper braiding, optical coverage approx. 85%
core: (4x2x24AWG)Cat.6 wrapped with PETP foil.
Outer layer: cores 18 AWG wrapped with non-woven tape
PUR
sky blue (RAL 5015)
SAB BRÖCKSKES · D-Viersen · Special CATLine Cat.6 (4x2x24AWG)Cat.6 + 4x18AWG <SAB Article no.> CE <SAB ID no.>
Technical data
| Operating voltage | AWG 18: 600 V AWG 24: 250 V |
|---|---|
| Testing voltage | AWG 24 core/core: 1500 V core/screen: 1200 V
AWG 18 core/core: 2500 V core/screen: 2500 V |
| Temperature range | fixed laying: -50°C/+90°C flexible application: -40°C/+90°C |
| Min. bending radius | fixed laying: 130 mm flexible application: 130 mm |
| Chemical resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Absence of harmful substances | gemäß RoHS-Richtlinie der Europäischen Union |
| REACH | The product does not contain any SVHC (Substance of Very High Concern) acc. to REACH Regulation (EC no. 1907/2006) |
| Data transmission | Characteristic impedance 100 Ω ± 15 Ω. The element (4x2x26AWG) fulfils the transmission requirements with reference to EN 50288-5-2 (Cat.6 acc. to EN 50173) |
AWG 18: 600 V
AWG 24: 250 V
AWG 24
core/core: 1500 V
core/screen: 1200 V
AWG 18
core/core: 2500 V
core/screen: 2500 V
fixed laying: -50°C/+90°C
flexible application: -40°C/+90°C
fixed laying: 130 mm
flexible application: 130 mm
good against acids, alkalines, solvents, hydraulic liquids etc.
gemäß RoHS-Richtlinie der Europäischen Union
The product does not contain any SVHC (Substance of Very High Concern) acc. to REACH Regulation (EC no. 1907/2006)
Characteristic impedance 100 Ω ± 15 Ω.
The element (4x2x26AWG) fulfils the transmission requirements with reference to EN 50288-5-2 (Cat.6 acc. to EN 50173)
Dimensions
| item no. | Dimension | Approx. outer-ø | Copper figure | Cable weigh in salt water approx. | Cable weigh in air approx. |
Ohmic resistance at 20°C max. | |
|---|---|---|---|---|---|---|---|
| item gr. 1639 | (4x2xAWG24) Cat.6 + 4xAWG18 | 14,0 mm | 82,8 kg/km | 76 kg/km | 235 kg/km | 85 Ω/km / 21 Ω/km | Send inquiry |
at 20°C max.
Other dimensions and colours are possible on request.
