Robot motor cable

f.e. 4 x 0,75mm² + 2 x (2 x 0,34mm²) or 4 x 2,5 mm² + 2 x 1,0 mm²

Roboter-Motorleitung für Industrieroboter

Roboter-Motorleitung für Industrieroboter

Application

Robot motor cable TPE/PUR with nominal voltage of Uo/U 450/750 V and a temperature range of -40 to +90 °C.  This halogen-free robot motor cable can be provided in the dimensions below.

Additional information

Further robot motor cables on request!

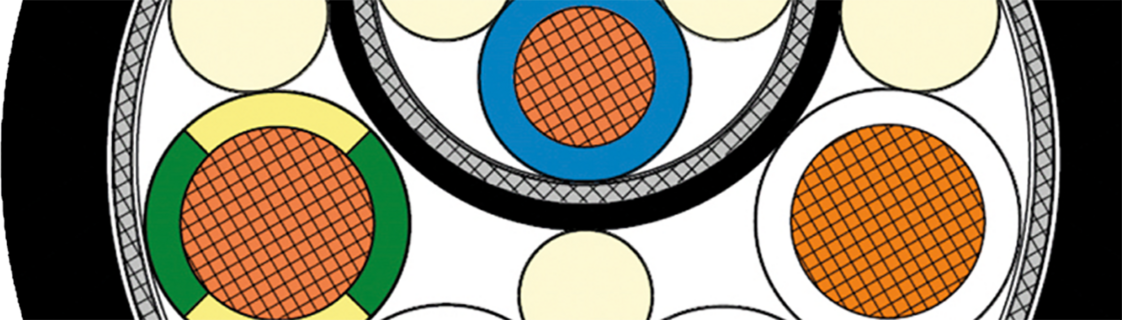

Construction

Conductor

bare copper strands acc. to IEC 60228

Insulation

TPE

Colour code

acc. to specification

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228

Insulation

TPE

Colour code

acc. to specification

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Technical Data

Nominal voltage

Uo/U 450/750 V

Temperature range

flexible application: -40/+90 °C

Halogen-free

acc. to IEC 60754-1 +

VDE 0482-754-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 450/750 V

Temperature range

flexible application: -40/+90 °C

Halogen-free

acc. to IEC 60754-1 +

VDE 0482-754-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Outer-ø
L0764-91204 x 0,75 mm² + 2 x (2 x 0,34 mm²)9,7 mm Send inquiry
L0796-92534 x 1,5 mm² + 2 x (2 x 0,75 mm²) D13,9 mm Send inquiry
L0779-90434 x 2,5 mm² + 2 x 1,0 mm²12,1 mm Send inquiry
L0726-00704 x 2,5 mm² + (2 x 1,0 mm²) C12,1 mm Send inquiry
L0841-92024 x 2,5 mm² + (2 x 1,5 mm²) C12,9 mm Send inquiry
item no.
Dimension
Outer-ø
L0764-9120
4 x 0,75 mm² + 2 x (2 x 0,34 mm²)
9,7 mm
L0796-9253
4 x 1,5 mm² + 2 x (2 x 0,75 mm²) D
13,9 mm
L0779-9043
4 x 2,5 mm² + 2 x 1,0 mm²
12,1 mm
L0726-0070
4 x 2,5 mm² + (2 x 1,0 mm²) C
12,1 mm
L0841-9202
4 x 2,5 mm² + (2 x 1,5 mm²) C
12,9 mm

Other dimensions and colours are possible on request.
