Hybrid cable
with special polymer insulation and overall aramid screen as strain relief
Application
Operating depth up to 300 metres!
Outstanding features
- high tensile strength
- high tear strength
- high abrasion resistance
- high notch resistance
- high shear strength
- good seawater resistance
- good UV resistance
- good oil resistance

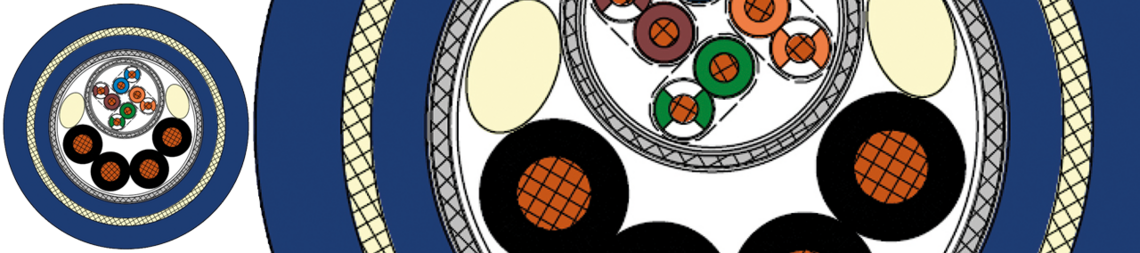

Construction
| Conductor | bare copper strands, fine wires |
|---|---|
| Insulation | special polymer |
| Colour code | AWG 26: blue-white/blue, orange-white/orange, green-white/green, brown-white/brown 1,0 mm²: black cores with consecutive numbers 1-4, Ø 2,3 mm |
| Stranding | cores AWG 26: pairwise and pairs together optimized twisted, PP foils with overlap wrapping |
| Screen | (4x2xAWG 26): alu foil and tinned copper braiding, optical coverage ≥ 85 % |
| Stranding | all elements twisted together optimized, swelling yarn in the fillers, non-woven tape with overlap wrapping |
| Screen | tinned copper braiding, optical coverage ≥ 85 % |
| Inner sheath | PUR, ultramarine blue (RAL 5002) |
| Strain relief element | aramid braiding |
| Sheath material | PUR |
| Sheath colour | ultramarine blue (RAL 5002) |
| Marking | acc. to customers requirements |
bare copper strands, fine wires
special polymer
AWG 26: blue-white/blue, orange-white/orange, green-white/green, brown-white/brown
1,0 mm²: black cores with consecutive numbers 1-4, Ø 2,3 mm
cores AWG 26: pairwise and pairs together optimized twisted, PP foils with overlap wrapping
(4x2xAWG 26): alu foil and tinned copper braiding, optical coverage ≥ 85 %
all elements twisted together optimized, swelling yarn in the fillers, non-woven tape with overlap wrapping
tinned copper braiding, optical coverage ≥ 85 %
PUR, ultramarine blue (RAL 5002)
aramid braiding
PUR
ultramarine blue (RAL 5002)
acc. to customers requirements
Technical data
| Peak operating voltage | max. 90 V |
|---|---|
| Nominal voltage | Uo/U 0,6/1kV |
| Testing voltage | core/core: 1000V, 1 min core/screen: 1000V, 1 min core/core: 4000V, 10 min core/screen: 4000V, 10 min |
| Temperature range | fixed laying: -20°C/+80°C flexible application: -20°C/+80°C |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d |
| Halogenfree | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Insulation resistance | ≥ 5 GΩ x km |
| Chemical resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Strain relief element | Min. tensile strength: 20 kN* *Size can´t be controlled by the manufacturer. Testing is the responsibility of the user |
| Data transmission | Element (4x2xAWG 26)Cat.6: Characteristic impedance 100 Ω ±10 Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-5-2 - Operating capacity is tested after first production - Attenuation values are tested after first production |
| Absence of harmful substances | gemäß RoHS-Richtlinie der Europäischen Union |
max. 90 V
Uo/U 0,6/1kV
core/core: 1000V, 1 min
core/screen: 1000V, 1 min
core/core: 4000V, 10 min
core/screen: 4000V, 10 min
fixed laying: -20°C/+80°C
flexible application: -20°C/+80°C
fixed laying: 5 x d
flexible application: 10 x d
acc. to IEC 60754-1 + VDE 0482-754-1
≥ 5 GΩ x km
good against acids, alkalines, solvents, hydraulic liquids etc.
Min. tensile strength: 20 kN*
*Size can´t be controlled by the manufacturer. Testing is the responsibility of the user
Element (4x2xAWG 26)Cat.6:
Characteristic impedance 100 Ω ±10 Ω,
fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-5-2
- Operating capacity is tested after first production
- Attenuation values are tested after first production
gemäß RoHS-Richtlinie der Europäischen Union
Dimensions
| item no. | Dimension | Approx. outer-ø | Copper figure | Cable weigh in salt water approx. | Cable weigh in air approx. |
Ohmic resistance at 20°C max. | |
|---|---|---|---|---|---|---|---|
| item gr. 1639 | (4x2xAWG26) Cat.6 + 4x1,0 mm² | 16,0 mm | 129,1 kg/km | 70 kg/km | 261 kg/km | 121,9 / 19,5 Ω/km | Send inquiry |
at 20°C max.
Other dimensions and colours are possible on request.
