Hybrid cables

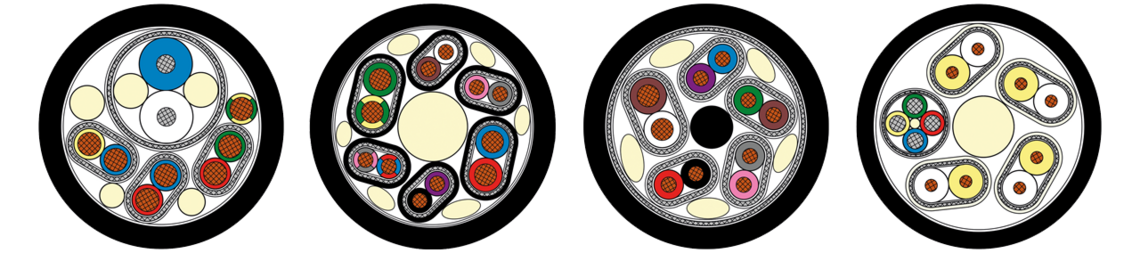

various types of cables for industrial robots

Application

Robotic Hybrid Cables are used on robots as PNZ and EMZ cables for welding control. They are included into the dress package of the robot and thus, fulfil the high claims on flexibility. Robotic cables move with single axes of the robot and unite the control as well as the electrical supply of the welding gun.



Dimensions

item no. Dimension Nominal voltage
L0625-9019(2 x 0,34 mm²) D CB + 3 x (2 x 0,50 mm²) D + 1 x 0,50 mm²9,4 mm Send inquiry
L0803-92084 x (2 x 0,25 mm²) D + 2 x (2 x 0,50 mm²) D10,6 mm Send inquiry
L0796-92384 x (2 x 0,25 mm²) D + (2 x 0,50 mm²) D10,4 mm Send inquiry
L1639-90094 x (2 x AWG 24) D Cat.6 + (4 x 0,50 mm²) D11,6 mm Send inquiry
item no.
Dimension
Nominal voltage
L0625-9019
(2 x 0,34 mm²) D CB + 3 x (2 x 0,50 mm²) D + 1 x 0,50 mm²
9,4 mm
L0803-9208
4 x (2 x 0,25 mm²) D + 2 x (2 x 0,50 mm²) D
10,6 mm
L0796-9238
4 x (2 x 0,25 mm²) D + (2 x 0,50 mm²) D
10,4 mm
L1639-9009
4 x (2 x AWG 24) D Cat.6 + (4 x 0,50 mm²) D
11,6 mm

Other dimensions and colours are possible on request.

Highly flexible cables according to your special requirements
