Highly flexible DC charging cable
Marking for DC charging cable: SAB BRÖCKSKES · D-VIERSEN · DC-Ladekabel 2x35,00mm²+1G25,0mm²+(3x2x0,75 mm²)C 0390-9594 CE
Application
The highly flexible DC charging cable from SAB Bröckskes was specially developed for fast and safe charging of electric vehicles. Its high flexibility and resilience make it ideal for use in charging stations and wallboxes. The resistant PUR sheath protects against mechanical stress, abrasion and the effects of the weather, guaranteeing a long service life.
The finely stranded copper wire ensures efficient energy transmission and the robust insulation meets the highest safety standards. Thanks to its optimized design, the cable remains flexible and easy to handle even at low temperatures down to -40 °C. It therefore offers a reliable solution for modern electromobility applications.
Outstanding features
- Hydrolysis resistance
- Ozone resistant
- Sunlight and weather resistant
- Flexible at low temperatures
- Resistant to oil and chemicals
- high tensile strength
- high tear strength
- high abrasion resistance
- high notch resistance
- high shear strength

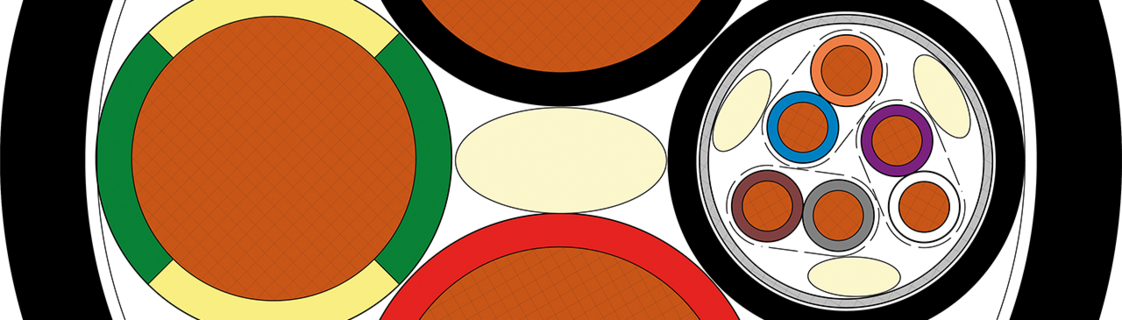

Construction
| Conductor | bare copper strands, fine wires acc. to IEC 60228, VDE 0295, class 6 |
|---|---|
| Insulation | SABIX® |
| Colour code | 0,75mm²: orange, blue, white, purple, brown, grey 25,0mm²: green-yellow 35,0mm²: black, red |
| Stranding | 0,75mm²: cores twisted to pairs, pairs stranded in layers |
| Wrapping | non-woven tape |
| Screen | 0,75 mm²: tinned copper braiding |
| Inner sheath | 0,75 mm²: PUR, black (RAL 9005) |
| Stranding | all elements stranded in layers, filler in centre and interstices |
| Wrapping | non-woven tape |
| Sheath material | PUR |
| Sheath colour | black (RAL 9005) |
bare copper strands, fine wires acc. to IEC 60228, VDE 0295, class 6
SABIX®
0,75mm²: orange, blue, white, purple, brown, grey
25,0mm²: green-yellow
35,0mm²: black, red
0,75mm²: cores twisted to pairs, pairs stranded in layers
non-woven tape
0,75 mm²: tinned copper braiding
0,75 mm²: PUR, black (RAL 9005)
all elements stranded in layers, filler in centre and interstices
non-woven tape
PUR
black (RAL 9005)
Technical data
| Nominal voltage | 0,75 mm²: Uo/U 300/500 V DC 25,0 mm² + 35,0 mm²: Uo/U 0,6/1 kV DC |
|---|---|
| Testing voltage at 50 Hz | 0,75 mm² core/core: 2000 V AC 0,75 mm² core/screen: 2000 V AC 25,0 mm² + 35,0 mm² core/core: 4000 V AC |
| Temperature range | fixed laying: -50/+90 °C flexible application: -40/+90 °C in case of short circuit: +160 °C (max. 5 sec.) |
| Min. bending radius | fixed laying: 5 x d flexible application: 7,5 x d |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Hydrolysis resistance | acc. to EN 50363-10-2 |
| Ozone resistance | acc. to EN 50396 |
| Sunlight resistance | acc. to HD 605 |
| Weather resistance | very good |
| Low temperature flexibility | very good |
| Oil resistance | very good - TMPU acc. to EN 50363-10-2 (tested acc. to EN 60811-404) |
| Chemical resistance | good against acids, alkalines, solvents, hydraulic liquids, etc. |
| Absence of harmful substances | gemäß RoHS-Richtlinie der Europäischen Union |
0,75 mm²: Uo/U 300/500 V DC
25,0 mm² + 35,0 mm²: Uo/U 0,6/1 kV DC
0,75 mm² core/core: 2000 V AC
0,75 mm² core/screen: 2000 V AC
25,0 mm² + 35,0 mm² core/core: 4000 V AC
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
in case of short circuit: +160 °C (max. 5 sec.)
fixed laying: 5 x d
flexible application: 7,5 x d
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
acc. to IEC 60754-1 + VDE 0482-754-1
acc. to EN 50363-10-2
acc. to EN 50396
acc. to HD 605
very good
very good
very good - TMPU acc. to EN 50363-10-2 (tested acc. to EN 60811-404)
good against acids, alkalines, solvents, hydraulic liquids, etc.
gemäß RoHS-Richtlinie der Europäischen Union
Dimensions
| item no. | Dimension | Approx. outer-ø | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| L03909594 | 2 x 35,0 mm² + 1 x 25,0 mm² + (3 x 2 x 0,75 mm²) C | 25,6 mm | 979,0 kg/km | 1275 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
