(6 x 2 x 22 AWG)C CAT 5e + 8 x 22 AWG – 20-pole

(6 x 2 x 22 AWG)C CAT 5e + 8 x 22 AWG

bare copper strands, fine wires

FEP

CAT 5e:

white/blue, white/orange,

white/green, white/brown,

white/black, white/red

22 AWG:

black, brown, red, orange,

yellow, green, blue, violet

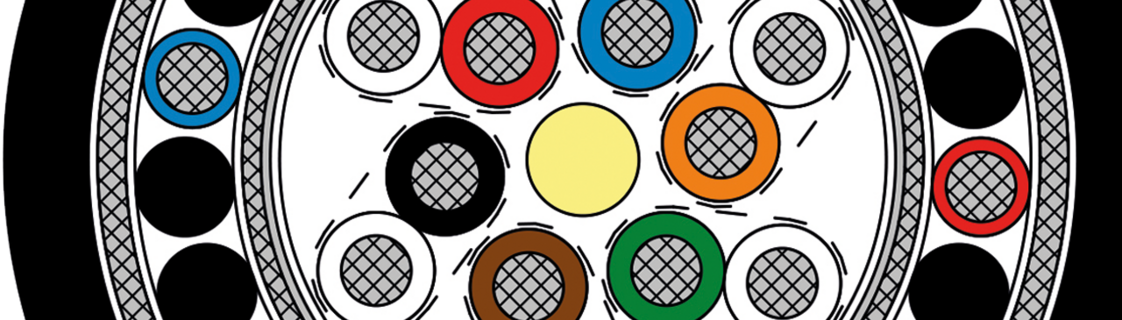

Aramid in the centre, cores twisted to pairs, pairs in specially adjusted layering

foil

tinned copper braiding,

optical coverage > 85%

tape

22 AWG: together

foil

tinned copper braiding,

optical coverage > 85%

tape

PUR

black (similar RAL 9005)

with mat surface, non-reflective

max. 60 V

core/core 600 V

core/screen 600 V

fixed laying: 5 x d

flexible application: 10 x d

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

short-time use: +125 °C (2000 h)

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

good against acids, alkalines, solvents, hydraulic liquids etc.

very good - acc. to EN 50363-10-2 + VDE 0207-363-10-2

very good acc. to HD 605 S1

very good acc. to EN 50396

100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-2-2 (CAT 5e acc. to EN 50173)

the main mechanical characteristics accomplished by the PUR outer sheath are:

- high tensile strength

- high tear strength (≥ 40 N/mm)

- high abrasion resistance

- high notch resistance

- high transverse stregth

acc. to RoHS directive of the European Union
