S 910 P continuously flexible TPE/PUR single conductor

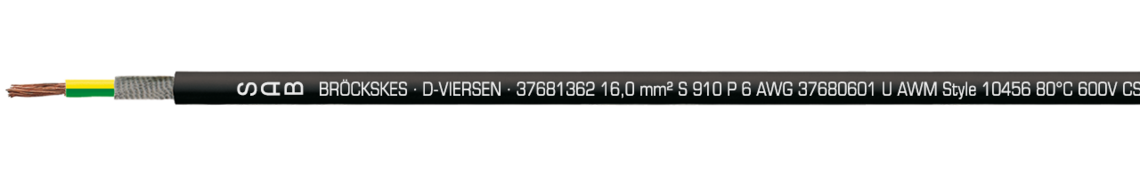

Marking for S 910 P 37681362: SAB BRÖCKSKES · D-VIERSEN · 37681362 16,0 mm² S 910 P 6 AWG 37680601 UL AWM Style 10456 80°C 600V CSA AWM I/II A/B 80°C 1000V FT1 FT2 C
Application
TPE/PUR single conductor with very good flexibility for use in hybrid and battery vehicles for earthing.
Outstanding features
- highly flexible single conductor for use in cable tracks
- good chemical resistance
- high abrasion resistance
- halogen-free
Construction
| Conductor | bare copper strands acc. to IEC 60228, VDE 0295, class 6 |
|---|---|
| Insulation | TPE, green-yellow |
| Wrapping | non-woven tape |
| Sheath material | PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface |
| Sheath colour | black (RAL 9005) |
bare copper strands acc. to IEC 60228, VDE 0295, class 6
TPE, green-yellow
non-woven tape
PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface
black (RAL 9005)
Technical Data
| Nominal voltage | Uo/U 0,6/1 kV |
|---|---|
| Voltage | UL: 600 V CSA: 1000 V |
| Min. bending radius | continuously flexible: 7,5 x d |
| Radiation resistance | 1 x 10⁷ cJ/kg |
| Temperature range | DIN VDE: fixed laying: -50/+90 °C flexible application: -40/+90 °C
UL/CSA: up to +80 °C |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL/CSA FT1, FT2 |
| Oil resistance | very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Chem. resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Continuous flexibility | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 0,6/1 kV
UL: 600 V
CSA: 1000 V
continuously flexible: 7,5 x d
1 x 10⁷ cJ/kg
DIN VDE:
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
UL/CSA: up to +80 °C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL/CSA FT1, FT2
very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
good against acids, alkalines, solvents, hydraulic liquids etc.
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
Nominal cross section |
Largest single wire-ø | AWG/ MCM | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|---|
| L37681140 | 4 mm | 0,16 mm | 12 (224/34) | 6,6 mm | 38,4 kg/km | 69 kg/km | Send inquiry |
| L37681160 | 6 mm | 0,21 mm | 10 (186/32) | 7,5 mm | 57,6 kg/km | 94 kg/km | Send inquiry |
| L37681161 | 10 mm | 0,21 mm | 8 (320/32) | 8,4 mm | 96,0 kg/km | 138 kg/km | Send inquiry |
| L37681162 | 16 mm | 0,21 mm | 6 (512/32) | 9,9 mm | 153,6 kg/km | 206 kg/km | Send inquiry |
| L37681163 | 25 mm | 0,21 mm | 4 (798/32) | 11,1 mm | 240,0 kg/km | 296 kg/km | Send inquiry |
| L37681164 | 35 mm | 0,21 mm | 2 (1083/32) | 12,6 mm | 336,0 kg/km | 390 kg/km | Send inquiry |
| L37681165 | 50 mm | 0,31 mm | 1 (703/28) | 14,7 mm | 480,0 kg/km | 554 kg/km | Send inquiry |
| L37681166 | 70 mm | 0,31 mm | 2/0 (988/28) | 17,0 mm | 672,0 kg/km | 771 kg/km | Send inquiry |
| L37681167 | 95 mm | 0,31 mm | 3/0 (1340/28) | 20,4 mm | 912,0 kg/km | 1024 kg/km | Send inquiry |
| L37681168 | 120 mm | 0,31 mm | 4/0 (1680/28) | 23,0 mm | 1152,0 kg/km | 1318 kg/km | Send inquiry |
| L37681169 | 150 mm | 0,31 mm | 250 MCM (2122/28) | 25,7 mm | 1440,0 kg/km | 1649 kg/km | Send inquiry |
| L37681170 | 185 mm | 0,41 mm | 350 MCM (1472/26) | 27,6 mm | 1776,0 kg/km | 2020 kg/km | Send inquiry |
section
wire-ø
Other dimensions and colours are possible on request.
