HV measuring cable for DC voltage measurement (cable harness)

Application

Safe HV measurement of DC voltages

Additional information

SAB identification: item number, batch number

Cable data

Connection cable

HV measuring cable

Core insulation

FEP – red and black

Stranding

together

with tinned copper drain wire, AWG 24

Screen

100% screen with alu foil and braiding

Inner sheath

PUR – blue acc. to RAL 5024

Outer sheath

PUR

Sheath colour

orange with black vertical stripes

Outer diameter

unscreened

2 x 0,25 mm²: 5,2 mm



screened

2 x 0,25 mm²: 6,5 mm

4 x 0,25 mm²: 7,2 mm

2 x 0,50 mm²: 7,1 mm

2 x 1,00 mm²: 7,8 mm

2 x 1,50 mm²: 8,4 mm

Scoop-proof

1000 V DC over blue inner sheath

Operating voltage

1800 V DC

Temperature range

fixed laying: -50°C / +125°C

flexible application: -40°C / +125°C

short time use: +150°C (up to 3000 h)

Connection cable

HV measuring cable

Core insulation

FEP – red and black

Stranding

together

with tinned copper drain wire, AWG 24

Screen

100% screen with alu foil and braiding

Inner sheath

PUR – blue acc. to RAL 5024

Outer sheath

PUR

Sheath colour

orange with black vertical stripes

Outer diameter

unscreened

2 x 0,25 mm²: 5,2 mm



screened

2 x 0,25 mm²: 6,5 mm

4 x 0,25 mm²: 7,2 mm

2 x 0,50 mm²: 7,1 mm

2 x 1,00 mm²: 7,8 mm

2 x 1,50 mm²: 8,4 mm

Scoop-proof

1000 V DC over blue inner sheath

Operating voltage

1800 V DC

Temperature range

fixed laying: -50°C / +125°C

flexible application: -40°C / +125°C

short time use: +150°C (up to 3000 h)

Connection end

Stripping length

250 mm

Screen

led out with filler and insulated with shrinkable sleeve

Temperature range of single core

-55°C / +180°C

Stripping length

250 mm

Screen

led out with filler and insulated with shrinkable sleeve

Temperature range of single core

-55°C / +180°C

Connectors

Safety lab plugs

1000 V, CAT III, red and black, 4 mm cable lug M4

Safety lab plugs

1000 V, CAT III, red and black, 4 mm cable lug M4

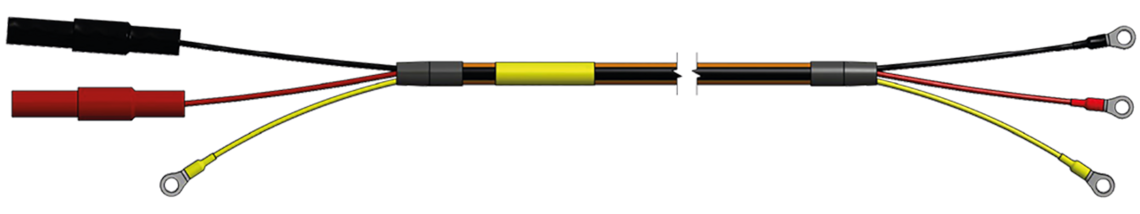

Configuration example

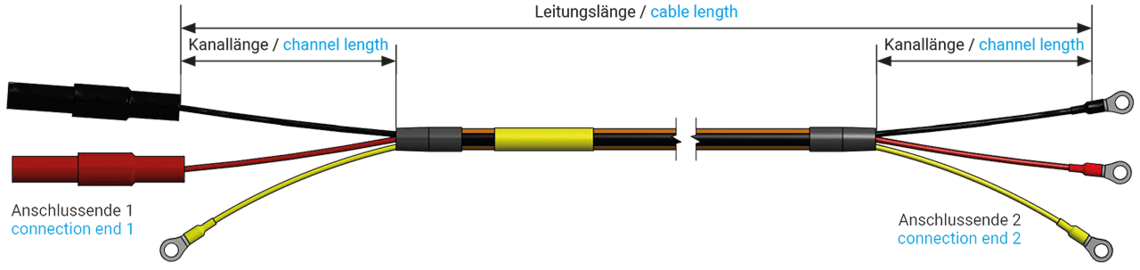

item no. Connection cable length Length channel 1 Length channel 2 Connector Outer-ø ± 5%
T645-062-9126500 mm250 mm250 mmsafety lab plugs + M4 cable lugs5,2 mm Send inquiry
item no.
Connection cable length
Length channel 1
Length channel 2
Connector
Outer-ø ± 5%
T645-062-912
6500 mm
250 mm
250 mm
safety lab plugs + M4 cable lugs
5,2 mm

Total cable and channel lengths can be realised on customer’s request.
