S 90

Continuously flexible PVC/PUR control cable with numbered cores

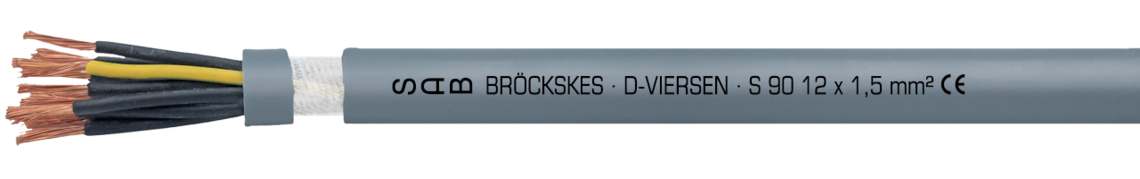

Marking for S 90 07780715: SAB BRÖCKSKES · D-VIERSEN · S 90 12 x 1,5 mm² CE

Application

Continuous flex control cable with numbered cores as well as high tear resistance. The acid-resistant flexible control cable with increased efficiency due to the permanent use with millions of bending cycles is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, welding machine and cutting systems.

Outstanding features

oil resistant
improved abrasion resistance
high tear resistance
good chemical resistance (acid-resistant)
increased efficiency due to the permanent use with millions of bending cycles

Additional information

Also available as hybrid cable for example
3G1,0 + 16 x 0,34 mm²
3G1,0 + 08 x 0,34 mm²
1G0,5 + 04 x 0,34 mm²
Peak operating voltage of data conductors: max. 500 V

Construction

Conductor	bare copper strands acc. to IEC 60228, VDE 0295, class 6
Insulation	PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
Colour code	black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Stranding	specially adjusted layering with non-woven tape over each layer
Wrapping	non-woven tape
Sheath material	PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface
Sheath colour	grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage	Uo/U 300/500 V
Testing voltage	core/core 3000 V
Min. bending radius	continuously flexible: 7,5 x d
Radiation resistance	5 x 10⁷ cJ/kg
Temperature range	fixed laying: -40/+70°C flexible application: +5/+70°C
Oil resistance	very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
Chem. resistance	good against acids, alkalines, solvents, hydraulic liquids etc
Flexibility	very good
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L07780205	2 x 0,50 mm²	0,16 mm	5,3 mm	9,6 kg/km	32 kg/km	Send inquiry
L07780305	3 x 0,50 mm²	0,16 mm	5,6 mm	14,4 kg/km	40 kg/km	Send inquiry
L07780405	4 x 0,50 mm²	0,16 mm	6 mm	19,2 kg/km	48 kg/km	Send inquiry
L07780505	5 x 0,50 mm²	0,16 mm	6,5 mm	24 kg/km	58 kg/km	Send inquiry
L07780705	7 x 0,50 mm²	0,16 mm	7,6 mm	33,6 kg/km	81 kg/km	Send inquiry
L07781205	12 x 0,50 mm²	0,16 mm	9,5 mm	57,6 kg/km	115 kg/km	Send inquiry
L07781805	18 x 0,50 mm²	0,16 mm	11,1 mm	86,4 kg/km	175 kg/km	Send inquiry
L07782505	25 x 0,50 mm²	0,16 mm	13,2 mm	120 kg/km	230 kg/km	Send inquiry
L07783605	36 x 0,50 mm²	0,16 mm	14,7 mm	172,8 kg/km	319 kg/km	Send inquiry
L07785005	50 x 0,50 mm²	0,16 mm	18 mm	240 kg/km	452 kg/km	Send inquiry
L07786505	65 x 0,50 mm²	0,16 mm	20,2 mm	312 kg/km	583 kg/km	Send inquiry
L07780207	2 x 0,75 mm²	0,16 mm	5,8 mm	14,4 kg/km	40 kg/km	Send inquiry
L07780307	3 x 0,75 mm²	0,16 mm	6,1 mm	21,6 kg/km	51 kg/km	Send inquiry
L07780407	4 x 0,75 mm²	0,16 mm	6,6 mm	28,8 kg/km	61 kg/km	Send inquiry
L07780507	5 x 0,75 mm²	0,16 mm	7,2 mm	36 kg/km	76 kg/km	Send inquiry
L07780707	7 x 0,75 mm²	0,16 mm	8,5 mm	50,4 kg/km	106 kg/km	Send inquiry
L07781207	12 x 0,75 mm²	0,16 mm	10,6 mm	86,4 kg/km	160 kg/km	Send inquiry
L07781807	18 x 0,75 mm²	0,16 mm	12,4 mm	129,6 kg/km	233 kg/km	Send inquiry
L07782507	25 x 0,75 mm²	0,16 mm	14,7 mm	180 kg/km	305 kg/km	Send inquiry
L07783607	36 x 0,75 mm²	0,16 mm	16,9 mm	259,2 kg/km	441 kg/km	Send inquiry
L07785007	50 x 0,75 mm²	0,16 mm	20,1 mm	360 kg/km	602 kg/km	Send inquiry
L07786507	65 x 0,75 mm²	0,16 mm	22,6 mm	468 kg/km	778 kg/km	Send inquiry
L07780210	2 x 1,00 mm²	0,16 mm	6 mm	19,2 kg/km	46 kg/km	Send inquiry
L07780310	3 x 1,00 mm²	0,16 mm	6,3 mm	28,8 kg/km	59 kg/km	Send inquiry
L07780410	4 x 1,00 mm²	0,16 mm	6,9 mm	38,4 kg/km	73 kg/km	Send inquiry
L07780510	5 x 1,00 mm²	0,16 mm	7,5 mm	48 kg/km	90 kg/km	Send inquiry
L07780710	7 x 1,00 mm²	0,16 mm	8,8 mm	67,2 kg/km	126 kg/km	Send inquiry
L07781210	12 x 1,00 mm²	0,16 mm	11 mm	115,2 kg/km	191 kg/km	Send inquiry
L07781810	18 x 1,00 mm²	0,16 mm	12,8 mm	172,8 kg/km	275 kg/km	Send inquiry
L07782510	25 x 1,00 mm²	0,16 mm	15,7 mm	240 kg/km	382 kg/km	Send inquiry
L07783610	36 x 1,00 mm²	0,16 mm	18 mm	345,6 kg/km	547 kg/km	Send inquiry
L07785010	50 x 1,00 mm²	0,16 mm	21 mm	480 kg/km	732 kg/km	Send inquiry
L07786510	65 x 1,00 mm²	0,16 mm	23,7 mm	624 kg/km	963 kg/km	Send inquiry
L07780215	2 x 1,50 mm²	0,16 mm	6,6 mm	28,8 kg/km	58 kg/km	Send inquiry
L07780315	3 x 1,50 mm²	0,16 mm	7 mm	43,2 kg/km	78 kg/km	Send inquiry
L07780415	4 x 1,50 mm²	0,16 mm	7,6 mm	57,6 kg/km	97 kg/km	Send inquiry
L07780515	5 x 1,50 mm²	0,16 mm	8,3 mm	72 kg/km	120 kg/km	Send inquiry
L07780715	7 x 1,50 mm²	0,16 mm	10,2 mm	100,8 kg/km	175 kg/km	Send inquiry
L07781215	12 x 1,50 mm²	0,16 mm	12,3 mm	172,8 kg/km	259 kg/km	Send inquiry
L07781815	18 x 1,50 mm²	0,16 mm	14,4 mm	259,2 kg/km	380 kg/km	Send inquiry
L07782515	25 x 1,50 mm²	0,16 mm	18 mm	360 kg/km	533 kg/km	Send inquiry
L07783615	36 x 1,50 mm²	0,16 mm	20,1 mm	518,4 kg/km	746 kg/km	Send inquiry
L07785015	50 x 1,50 mm²	0,16 mm	23,9 mm	720 kg/km	1021 kg/km	Send inquiry
L07786515	65 x 1,50 mm²	0,16 mm	26,8 mm	936 kg/km	1321 kg/km	Send inquiry
L07780225	2 x 2,50 mm²	0,16 mm	8,4 mm	48 kg/km	93 kg/km	Send inquiry
L07780325	3 x 2,50 mm²	0,16 mm	8,9 mm	72 kg/km	125 kg/km	Send inquiry
L07780425	4 x 2,50 mm²	0,16 mm	10,1 mm	96 kg/km	163 kg/km	Send inquiry
L07780525	5 x 2,50 mm²	0,16 mm	11,1 mm	120 kg/km	201 kg/km	Send inquiry
L07780725	7 x 2,50 mm²	0,16 mm	13,2 mm	168 kg/km	285 kg/km	Send inquiry
L07781225	12 x 2,50 mm²	0,16 mm	16,4 mm	288 kg/km	431 kg/km	Send inquiry
L07781825	18 x 2,50 mm²	0,16 mm	19,7 mm	432 kg/km	650 kg/km	Send inquiry
L07782525	25 x 2,50 mm²	0,16 mm	23,9 mm	600 kg/km	879 kg/km	Send inquiry
L07783625	36 x 2,50 mm²	0,16 mm	27,2 mm	864 kg/km	1255 kg/km	Send inquiry
L07780240	2 x 4,00 mm²	0,16 mm	10,2 mm	76,8 kg/km	145 kg/km	Send inquiry
L07780340	3 x 4,00 mm²	0,16 mm	10,8 mm	115,2 kg/km	190 kg/km	Send inquiry
L07780440	4 x 4,00 mm²	0,16 mm	11,6 mm	153,6 kg/km	238 kg/km	Send inquiry
L07780540	5 x 4,00 mm²	0,16 mm	12,9 mm	192 kg/km	305 kg/km	Send inquiry
L07780740	7 x 4,00 mm²	0,16 mm	15,2 mm	268,8 kg/km	426 kg/km	Send inquiry
L07781240	12 x 4,00 mm²	0,16 mm	18,9 mm	460,8 kg/km	657 kg/km	Send inquiry
L07780260	2 x 6,00 mm²	0,21 mm	12,5 mm	115,2 kg/km	218 kg/km	Send inquiry
L07780360	3 x 6,00 mm²	0,21 mm	13,2 mm	172,8 kg/km	286 kg/km	Send inquiry
L07780460	4 x 6,00 mm²	0,21 mm	14,4 mm	230,4 kg/km	364 kg/km	Send inquiry
L07780560	5 x 6,00 mm²	0,21 mm	15,9 mm	288 kg/km	461 kg/km	Send inquiry
L07780760	7 x 6,00 mm²	0,21 mm	18,7 mm	403,2 kg/km	642 kg/km	Send inquiry
L07780361	3 x 10,0 mm²	0,21 mm	15,9 mm	288 kg/km	416 kg/km	Send inquiry
L07780461	4 x 10,0 mm²	0,21 mm	17,3 mm	384 kg/km	570 kg/km	Send inquiry
L07780561	5 x 10,0 mm²	0,21 mm	19,1 mm	480 kg/km	724 kg/km	Send inquiry
L07780362	3 x 16,0 mm²	0,21 mm	18,6 mm	460,8 kg/km	664 kg/km	Send inquiry
L07780462	4 x 16,0 mm²	0,21 mm	20,3 mm	614,4 kg/km	849 kg/km	Send inquiry
L07780562	5 x 16,0 mm²	0,21 mm	22,4 mm	768 kg/km	1081 kg/km	Send inquiry
L07780463	4 x 25,0 mm²	0,21 mm	24,1 mm	960 kg/km	1247 kg/km	Send inquiry
L07780563	5 x 25,0 mm²	0,21 mm	26,7 mm	1200 kg/km	1601 kg/km	Send inquiry
L07780464	4 x 35,0 mm²	0,21 mm	27,5 mm	1344 kg/km	1665 kg/km	Send inquiry
L07780564	5 x 35,0 mm²	0,21 mm	30,4 mm	1680 kg/km	2140 kg/km	Send inquiry
L07780465	4 x 50,0 mm²	0,31 mm	32,5 mm	1920 kg/km	2354 kg/km	Send inquiry
L07780565	5 x 50,0 mm²	0,31 mm	36,5 mm	2400 kg/km	3066 kg/km	Send inquiry
