S 86

Continuously flexible PVC control cable with numbered cores

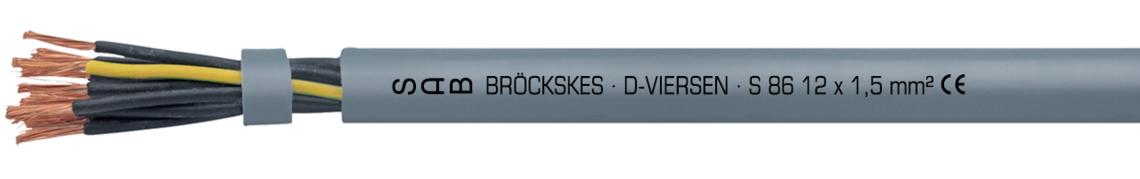

Marking for S 86 37721215: SAB BRÖCKSKES · D-VIERSEN · S 86 12 x 1,5 mm² CE

Application

S 86 is a continuously flexible PVC control cable for energy chain systems with numbered cores as well as a small bending radius. This energy chain cable is recommended for use in wood working and packaging machines, assembly lines, and automation plants.

Outstanding features

very good flexibility
small bending radius
reinforced outer sheath

Additional information

Also available as hybrid cable for example
3G1,0 + 16 x 0,34 mm²
3G1,0 + 08 x 0,34 mm²
1G0,5 + 04 x 0,34 mm²
Peak operating voltage of data conductors: max. 500 V

Construction

Conductor	bare copper strands acc. to IEC 60228, VDE 0295, class 6
Insulation	PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
Colour code	black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Stranding	specially adjusted layering with non-woven tape over each layer
Sheath material	PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1, reinforced wall thickness
Sheath colour	grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbersacc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1,

reinforced wall thickness

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage	Uo/U 300/500 V
Testing voltage	core/core 3000 V
Min. bending radius	continuously flexible: 7,5 x d
Radiation resistance	8 x 10⁷ cJ/kg
Temperature range	fixed laying: -40/+70°C flexible application: +5/+70°C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Oil resistance	acc. to internal standard
Chem. resistance	see "Technical Data" - Chemical resistance
Flexibility	very good
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 3000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L37720205	2 x 0,50 mm²	0,16 mm	5,3 mm	9,6 kg/km	38 kg/km	Send inquiry
L37720305	3 x 0,50 mm²	0,16 mm	5,6 mm	14,4 kg/km	45 kg/km	Send inquiry
L37720405	4 x 0,50 mm²	0,16 mm	6,2 mm	19,2 kg/km	56 kg/km	Send inquiry
L37720505	5 x 0,50 mm²	0,16 mm	6,8 mm	24 kg/km	69 kg/km	Send inquiry
L37720705	7 x 0,50 mm²	0,16 mm	8 mm	33,6 kg/km	97 kg/km	Send inquiry
L37721205	12 x 0,50 mm²	0,16 mm	9,9 mm	57,6 kg/km	141 kg/km	Send inquiry
L37721805	18 x 0,50 mm²	0,16 mm	11,6 mm	86,4 kg/km	203 kg/km	Send inquiry
L37722505	25 x 0,50 mm²	0,16 mm	14,2 mm	120 kg/km	280 kg/km	Send inquiry
L37723605	36 x 0,50 mm²	0,16 mm	15,9 mm	172,8 kg/km	283 kg/km	Send inquiry
L37724405	44 x 0,50 mm²	0,16 mm	18,2 mm	211,2 kg/km	472 kg/km	Send inquiry
L37725205	52 x 0,50 mm²	0,16 mm	18,9 mm	249,6 kg/km	537 kg/km	Send inquiry
L37726505	65 x 0,50 mm²	0,16 mm	21,5 mm	312 kg/km	677 kg/km	Send inquiry
L37720207	2 x 0,75 mm²	0,16 mm	5,8 mm	14,4 kg/km	46 kg/km	Send inquiry
L37720307	3 x 0,75 mm²	0,16 mm	6,3 mm	21,6 kg/km	59 kg/km	Send inquiry
L37720407	4 x 0,75 mm²	0,16 mm	6,8 mm	28,8 kg/km	71 kg/km	Send inquiry
L37720507	5 x 0,75 mm²	0,16 mm	7,6 mm	36 kg/km	90 kg/km	Send inquiry
L37720707	7 x 0,75 mm²	0,16 mm	9,1 mm	50,4 kg/km	128 kg/km	Send inquiry
L37721207	12 x 0,75 mm²	0,16 mm	11,1 mm	86,4 kg/km	186 kg/km	Send inquiry
L37721807	18 x 0,75 mm²	0,16 mm	13,1 mm	129,6 kg/km	270 kg/km	Send inquiry
L37722507	25 x 0,75 mm²	0,16 mm	15,9 mm	180 kg/km	368 kg/km	Send inquiry
L37723607	36 x 0,75 mm²	0,16 mm	18,1 mm	259,2 kg/km	516 kg/km	Send inquiry
L37725207	52 x 0,75 mm²	0,16 mm	21,4 mm	374,4 kg/km	721 kg/km	Send inquiry
L37726507	65 x 0,75 mm²	0,16 mm	24,3 mm	468 kg/km	913 kg/km	Send inquiry
L37720210	2 x 1,00 mm²	0,16 mm	6,2 mm	19,2 kg/km	56 kg/km	Send inquiry
L37720310	3 x 1,00 mm²	0,16 mm	6,5 mm	28,8 kg/km	68 kg/km	Send inquiry
L37720410	4 x 1,00 mm²	0,16 mm	7,1 mm	38,4 kg/km	82 kg/km	Send inquiry
L37720510	5 x 1,00 mm²	0,16 mm	7,9 mm	48 kg/km	104 kg/km	Send inquiry
L37720710	7 x 1,00 mm²	0,16 mm	9,4 mm	67,2 kg/km	147 kg/km	Send inquiry
L37721210	12 x 1,00 mm²	0,16 mm	11,5 mm	115,2 kg/km	218 kg/km	Send inquiry
L37721810	18 x 1,00 mm²	0,16 mm	13,8 mm	172,8 kg/km	324 kg/km	Send inquiry
L37722510	25 x 1,00 mm²	0,16 mm	16,7 mm	240 kg/km	442 kg/km	Send inquiry
L37723610	36 x 1,00 mm²	0,16 mm	18,8 mm	345,6 kg/km	615 kg/km	Send inquiry
L37725210	52 x 1,00 mm²	0,16 mm	22,5 mm	499,2 kg/km	867 kg/km	Send inquiry
L37726510	65 x 1,00 mm²	0,16 mm	25,4 mm	624 kg/km	1095 kg/km	Send inquiry
L37720215	2 x 1,50 mm²	0,16 mm	6,8 mm	28,8 kg/km	70 kg/km	Send inquiry
L37720315	3 x 1,50 mm²	0,16 mm	7,2 mm	43,2 kg/km	87 kg/km	Send inquiry
L37720415	4 x 1,50 mm²	0,16 mm	8 mm	57,6 kg/km	111 kg/km	Send inquiry
L37720515	5 x 1,50 mm²	0,16 mm	8,7 mm	72 kg/km	136 kg/km	Send inquiry
L37720715	7 x 1,50 mm²	0,16 mm	10,6 mm	100,8 kg/km	198 kg/km	Send inquiry
L37721215	12 x 1,50 mm²	0,16 mm	13 mm	172,8 kg/km	294 kg/km	Send inquiry
L37721815	18 x 1,50 mm²	0,16 mm	15,5 mm	259,2 kg/km	437 kg/km	Send inquiry
L37722515	25 x 1,50 mm²	0,16 mm	18,8 mm	360 kg/km	594 kg/km	Send inquiry
L37723615	36 x 1,50 mm²	0,16 mm	21,3 mm	518,4 kg/km	835 kg/km	Send inquiry
L37725215	52 x 1,50 mm²	0,16 mm	25,4 mm	748,8 kg/km	1182 kg/km	Send inquiry
L37726515	65 x 1,50 mm²	0,16 mm	28,7 mm	936 kg/km	1491 kg/km	Send inquiry
L37720225	2 x 2,50 mm²	0,16 mm	8,6 mm	48 kg/km	111 kg/km	Send inquiry
L37720325	3 x 2,50 mm²	0,16 mm	9,3 mm	72 kg/km	143 kg/km	Send inquiry
L37720425	4 x 2,50 mm²	0,16 mm	10,1 mm	96 kg/km	176 kg/km	Send inquiry
L37720525	5 x 2,50 mm²	0,16 mm	11,3 mm	120 kg/km	221 kg/km	Send inquiry
L37720725	7 x 2,50 mm²	0,16 mm	13,6 mm	168 kg/km	224 kg/km	Send inquiry
L37721225	12 x 2,50 mm²	0,16 mm	16,9 mm	288 kg/km	486 kg/km	Send inquiry
L37721825	18 x 2,50 mm²	0,16 mm	20,3 mm	432 kg/km	707 kg/km	Send inquiry
L37722525	25 x 2,50 mm²	0,16 mm	24,7 mm	600 kg/km	995 kg/km	Send inquiry
L37723625	36 x 2,50 mm²	0,16 mm	27,9 mm	864 kg/km	1390 kg/km	Send inquiry
L37720240	2 x 4,00 mm²	0,16 mm	9,9 mm	76,8 kg/km	156 kg/km	Send inquiry
L37720340	3 x 4,00 mm²	0,16 mm	10,8 mm	115,2 kg/km	213 kg/km	Send inquiry
L37720440	4 x 4,00 mm²	0,16 mm	11,8 mm	153,6 kg/km	269 kg/km	Send inquiry
L37720540	5 x 4,00 mm²	0,16 mm	13,1 mm	192 kg/km	321 kg/km	Send inquiry
L37720740	7 x 4,00 mm²	0,16 mm	16,5 mm	268,8 kg/km	488 kg/km	Send inquiry
L37720260	2 x 6,00 mm²	0,21 mm	12,3 mm	115,2 kg/km	227 kg/km	Send inquiry
L37720360	3 x 6,00 mm²	0,21 mm	13 mm	172,8 kg/km	305 kg/km	Send inquiry
L37720460	4 x 6,00 mm²	0,21 mm	14,4 mm	230,4 kg/km	391 kg/km	Send inquiry
L37720560	5 x 6,00 mm²	0,21 mm	16,1 mm	288 kg/km	472 kg/km	Send inquiry
L37720760	7 x 6,00 mm²	0,21 mm	19,5 mm	403,2 kg/km	690 kg/km	Send inquiry
L37720361	3 x 10,0 mm²	0,21 mm	15,7 mm	288 kg/km	475 kg/km	Send inquiry
L37720461	4 x 10,0 mm²	0,21 mm	17,3 mm	384 kg/km	630 kg/km	Send inquiry
L37720561	5 x 10,0 mm²	0,21 mm	19,5 mm	480 kg/km	773 kg/km	Send inquiry
L37720462	4 x 16,0 mm²	0,21 mm	20,9 mm	614,4 kg/km	943 kg/km	Send inquiry
L37720562	5 x 16,0 mm²	0,21 mm	23,3 mm	768 kg/km	1133 kg/km	Send inquiry
L37720463	4 x 25,0 mm²	0,21 mm	24,7 mm	960 kg/km	1310 kg/km	Send inquiry
L37720464	4 x 35,0 mm²	0,21 mm	28,7 mm	1344 kg/km	1807 kg/km	Send inquiry
L37720465	4 x 50,0 mm²	0,31 mm	34,5 mm	1920 kg/km	2623 kg/km	Send inquiry
