SABorganic S 1000 Control

Extremely flexible SABIX®/PUR control cable with numbered cores and reduced carbon footprint for continuous movement

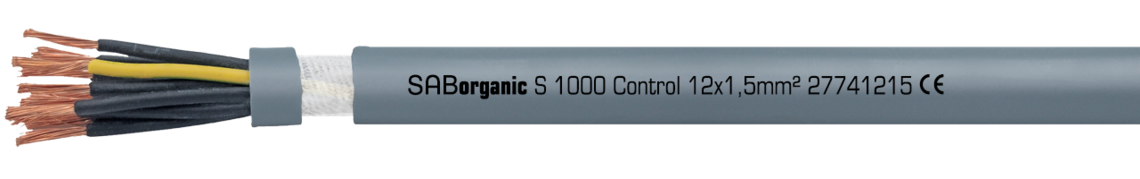

Marking for SABorganic S 1000 Control 27741215:
SAB BRÖCKSKES · D-VIERSEN · SABorganic S 1000 Control 12x1,5mm² 27741215 CE

Marking for SABorganic S 1000 Control 27741215: SAB BRÖCKSKES · D-VIERSEN · SABorganic S 1000 Control 12x1,5mm² 27741215 CE

Application

The control cable SABorganic S 1000 Control is suitable for cable chains and equipped with an outer sheath made of bio-based PUR material that is mainly obtained of sustainable resources. This reduces the carbon footprint by a quarter compared to conventional types. The SABorganic S 1000 Control is particularly suitable for use in cable chains and moveable machine parts. The halogen-free and flame-retardant characteristics of the new sheath material reduce potential fire hazards. The SABorganic S 1000 Control is also resistant against mineral oil-based lubricants and many chemicals.

Outstanding features

  • reduced carbon footprint
  • low capacity construction
  • sustainable plastic materials
  • PWIS uncritical
    (PWIS = paint-wetting impairment substances)
  • flexible at low temperatures
  • halogen-free
  • flame retardant and self-extinguishing
  • travel > 10 m is possible
  • high abrasion resistance
  • small bending radius
  • small outer diameter

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7000)

Technical Data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Torsion angle

± 60°/1 m

Min. bending radius

fixed laying: 3 x d

flexible application: 7,5 x d

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

limited time of use: +125 °C (up to 2000h)

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Continuous flexibility

very good

Sunlight resistance

acc. to HD 605

Ozone resistance

acc. to DIN EN 50396

Salt water resistance

acc. to UL 1309

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Torsion angle

± 60°/1 m

Min. bending radius

fixed laying: 3 x d

flexible application: 7,5 x d

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

limited time of use: +125 °C (up to 2000h)

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Continuous flexibility

very good

Sunlight resistance

acc. to HD 605

Ozone resistance

acc. to DIN EN 50396

Salt water resistance

acc. to UL 1309

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Description No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
L27740505multi-core cable unscreened5 x 0,50 mm²0,16 mm5,424,0 kg/km43 kg/km Send inquiry
L27740705multi-core cable unscreened7 x 0,50 mm²0,16 mm6,433,6 kg/km60 kg/km Send inquiry
L27741205multi-core cable unscreened12 x 0,50 mm²0,16 mm7,657,6 kg/km86 kg/km Send inquiry
L27741805multi-core cable unscreened18 x 0,50 mm²0,16 mm9,086,4 kg/km125 kg/km Send inquiry
L27742505multi-core cable unscreened25 x 0,50 mm²0,16 mm11,0120,0 kg/km173 kg/km Send inquiry
L27741210multi-core cable unscreened12 x 1,00 mm²0,16 mm9,1115,2 kg/km148 kg/km Send inquiry
L27741810multi-core cable unscreened18 x 1,00 mm²0,16 mm11,0172,8 kg/km226 kg/km Send inquiry
L27740315multi-core cable unscreened3 x 1,50 mm²0,16 mm6,043,2 kg/km63 kg/km Send inquiry
L27740515multi-core cable unscreened5 x 1,50 mm²0,16 mm7,372,0 kg/km99 kg/km Send inquiry
L27740361multi-core cable unscreened3 x 10,0 mm²0,21 mm13,6288,0 kg/km394 kg/km Send inquiry
L27841205multi-core cable screened12 x 0,50 mm²0,16 mm8,181,4 kg/km103 kg/km Send inquiry
L27840707multi-core cable screened7 x 0,75 mm²0,16 mm7,774,1 kg/km98 kg/km Send inquiry
L27842510multi-core cable screened25 x 1,00 mm²0,16 mm14,7336,9 kg/km384 kg/km Send inquiry
L27840315multi-core cable screened3 x 1,50 mm²0,16 mm6,560,9 kg/km77 kg/km Send inquiry
L27840325multi-core cable screened3 x 2,50 mm²0,16 mm8,095,8 kg/km117 kg/km Send inquiry
item no.
Description
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
L27740505
multi-core cable unscreened
5 x 0,50 mm²
0,16 mm
5,4
24,0 kg/km
43 kg/km
L27740705
multi-core cable unscreened
7 x 0,50 mm²
0,16 mm
6,4
33,6 kg/km
60 kg/km
L27741205
multi-core cable unscreened
12 x 0,50 mm²
0,16 mm
7,6
57,6 kg/km
86 kg/km
L27741805
multi-core cable unscreened
18 x 0,50 mm²
0,16 mm
9,0
86,4 kg/km
125 kg/km
L27742505
multi-core cable unscreened
25 x 0,50 mm²
0,16 mm
11,0
120,0 kg/km
173 kg/km
L27741210
multi-core cable unscreened
12 x 1,00 mm²
0,16 mm
9,1
115,2 kg/km
148 kg/km
L27741810
multi-core cable unscreened
18 x 1,00 mm²
0,16 mm
11,0
172,8 kg/km
226 kg/km
L27740315
multi-core cable unscreened
3 x 1,50 mm²
0,16 mm
6,0
43,2 kg/km
63 kg/km
L27740515
multi-core cable unscreened
5 x 1,50 mm²
0,16 mm
7,3
72,0 kg/km
99 kg/km
L27740361
multi-core cable unscreened
3 x 10,0 mm²
0,21 mm
13,6
288,0 kg/km
394 kg/km
L27841205
multi-core cable screened
12 x 0,50 mm²
0,16 mm
8,1
81,4 kg/km
103 kg/km
L27840707
multi-core cable screened
7 x 0,75 mm²
0,16 mm
7,7
74,1 kg/km
98 kg/km
L27842510
multi-core cable screened
25 x 1,00 mm²
0,16 mm
14,7
336,9 kg/km
384 kg/km
L27840315
multi-core cable screened
3 x 1,50 mm²
0,16 mm
6,5
60,9 kg/km
77 kg/km
L27840325
multi-core cable screened
3 x 2,50 mm²
0,16 mm
8,0
95,8 kg/km
117 kg/km

Other dimensions and colours are possible on request.
