SABdynamic 910 Data
continuously flexible PUR data cable, suitable for robots, robust, oil resistant and flame retardant

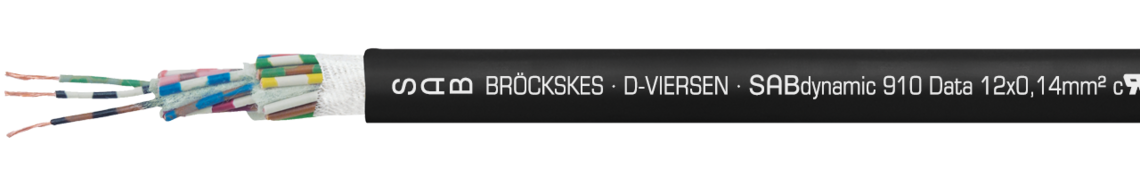

Marking example: SAB BRÖCKSKES · D-VIERSEN · SABdynamic 910 Data 12x0,14mm² cURus AWM Style 20233 AWM I/II A/B 80°C 300V FT1 FT2 0910-1201 CE
Application
The SABdynamic 910 Data is a highly flexible data cable that has been specially developed for use in drag chains with long travel distances. It is also characterized by its torsional capability and is able to withstand torsional cycles of up to ±180°/m over more than 10 million cycles and up to ±360°/m over more than 5 million cycles. These features make them particularly suitable for use in robotics applications that require high mechanical loads. The robust polyurethane (PUR) jacket also offers excellent protection against abrasion, oil and chemicals, so that the cable operates reliably even in harsh industrial environments.
Outstanding features
- UL/cUL recognized
- PWIS uncritical (PWIS = paint-wetting impairment substances)
- suitable for robots
- extremely large temperature range
- halogen-free
- high abrasion resistance
- suitable for long travel
- small bending radius
- small outer diameter
Construction
| Conductor | bare copper strands with reference to IEC 60228, VDE 0295, class 6 |
|---|---|
| Insulation | SABIX® |
| Colour code | with reference to DIN 47100 |
| Stranding | specially adjusted layering with non-woven tape over each layer, from 23 cores twisted to paird |
| Sheath material | PUR with mat surface |
| Sheath colour | black (RAL 9005) |
bare copper strands with reference to IEC 60228, VDE 0295, class 6
SABIX®
with reference to DIN 47100
specially adjusted layering with non-woven tape over each layer, from 23 cores twisted to paird
PUR with mat surface
black (RAL 9005)
Technical Data
| Peak operating voltage | max. 350 V |
|---|---|
| Voltage UL/cUL | 300 V |
| Testing voltage | core/core 2000 V |
| Torsion cycles | up to ± 180°/m > 10 Mio. up to ± 360°/m > 5 Mio. |
| Min. bending radius | fixed laying: 3 x d flexible application: ≤ 5 m 7,5 x d > 5 m 10 x d bending cycles: > 10 Mio. |
| Temperature range | DIN VDE fixed laying: -50/+90 °C flexible application: -40/+90 °C
UL/cUL: up to +80 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flammhemmend und selbstverlöschend nach IEC 60332-1-2 + VDE 0482-332-1-2, cUL FT1, FT2 |
| Oil resistance | sehr gut - TMPU nach EN 50363-10-2 + VDE 0207-363-10-2 |
| Chem. resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Continuous Flexibility | very good |
| Sunlight resistance | acc. to HD 605 |
| Ozone resistance | acc. to DIN EN 50396 |
| Salt water resistance | acc. to UL 1309 |
| Absence of harmful substances | gemäß RoHS-Richtlinie der Europäischen Union |
max. 350 V
300 V
core/core 2000 V
up to ± 180°/m > 10 Mio.
up to ± 360°/m > 5 Mio.
fixed laying: 3 x d
flexible application: ≤ 5 m 7,5 x d
> 5 m 10 x d
bending cycles: > 10 Mio.
DIN VDE
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
UL/cUL: up to +80 °C
acc. to IEC 60754-1 + VDE 0482-754-1
flammhemmend und selbstverlöschend nach IEC 60332-1-2 + VDE 0482-332-1-2, cUL FT1, FT2
sehr gut - TMPU nach EN 50363-10-2 + VDE 0207-363-10-2
good against acids, alkalines, solvents, hydraulic liquids etc.
very good
acc. to HD 605
acc. to DIN EN 50396
acc. to UL 1309
gemäß RoHS-Richtlinie der Europäischen Union
Dimensions
| item no. | Screen |
No. of cores x cross section |
Largest single wire-ø | Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|---|
| L09011201 | unscreened | 12 x 0,14 mm² | 0,11 mm | 5,5 mm | 15,6 kg/km | 36 kg/km | Send inquiry |
| L09102401 | unscreened | 12 x 2 x 0,14 mm² | 0,11 mm | 7,9 mm | 31,2 kg/km | 65 kg/km | Send inquiry |
| L09110601 | screened | 6 2 x 0,14 mm² | 0,11 mm | 6,3 mm | 30,0 kg/km | 52 kg/km | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
