SABdynamic 910 Control

continuously flexible PUR control cable, suitable for cable robots, robust, oil resistant and flame retardant

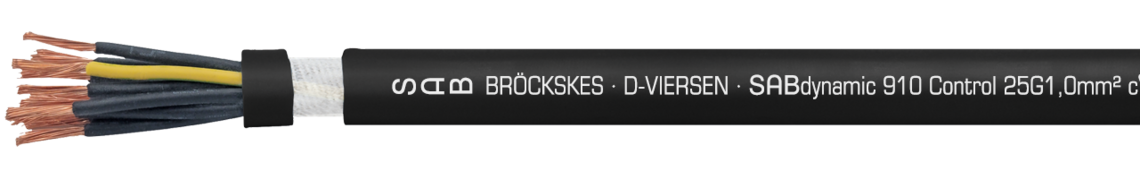

Marking example:
SAB BRÖCKSKES · D-VIERSEN · SABdynamic 910 Control 25G1,0mm² cURus AWM Style 21223 AWM I/II A/B 80°C 600V FT1 FT2 0910-2510  CE

Marking example: SAB BRÖCKSKES · D-VIERSEN · SABdynamic 910 Control 25G1,0mm² cURus AWM Style 21223 AWM I/II A/B 80°C 600V FT1 FT2 0910-2510 CE

Application

The SABdynamic 910 Control is a flexible control cable with UL/cUL approval that has been specially developed for permanent and dynamic movements, e.g. in drag chains with long travel distances of >10 meters. The UL/cUL approved cable is also characterized by its ability to withstand torsion cycles of up to ±180°/m over more than 10 million cycles, making it ideal for dynamic robot applications. The robust PUR outer jacket provides excellent protection against abrasion, oil and chemicals, while the high flame resistance increases operational safety. These properties ensure reliable performance and durability of the cable under extreme mechanical loads.

Outstanding features

  • UL/cUL recognized
  • PWIS uncritical (PWIS = paint-wetting impairment substances)
  • suitable for robots
  • extremely large temperature range
  • halogen-free
  • high abrasion resistance
  • suitable for long travel
  • small bending radius
  • small outer diameter

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, Klasse 6

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer, from 15 cores twisted to bundles

Sheath material

PUR with mat surface

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, Klasse 6

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer, from 15 cores twisted to bundles

Sheath material

PUR with mat surface

Sheath colour

black (RAL 9005)

Technical Data

Nominal voltage

Uo/U 300/500 V

Voltage UL/cUL

600 V

Testing voltage

core/core 2000 V

Torsion cycles

up to ± 180°/m > 10 Mio.

up to ± 360°/m > 5 Mio.

Min. bending radius

fixed laying: 3 x d

flexible application: ≤ 5 m 7,5 x d

> 5 m 10 x d

bending cycles: > 10 Mio.

Temperature range

DIN VDE

fixed laying: -50/+90 °C

flexible application: -40/+90 °C



UL/cUL: up to +80 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flammhemmend und selbstverlöschend nach IEC 60332-1-2 + VDE 0482-332-1-2, cUL FT1, FT2

Oil resistance

sehr gut - TMPU nach EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Continuous Flexibility

very good

Sunlight resistance

acc. to HD 605

Ozone resistance

acc. to DIN EN 50396

Salt water resistance

acc. to UL 1309

Schadstofffrei

gemäß RoHS-Richtlinie der Europäischen Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/cUL

600 V

Testing voltage

core/core 2000 V

Torsion cycles

up to ± 180°/m > 10 Mio.

up to ± 360°/m > 5 Mio.

Min. bending radius

fixed laying: 3 x d

flexible application: ≤ 5 m 7,5 x d

> 5 m 10 x d

bending cycles: > 10 Mio.

Temperature range

DIN VDE

fixed laying: -50/+90 °C

flexible application: -40/+90 °C



UL/cUL: up to +80 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flammhemmend und selbstverlöschend nach IEC 60332-1-2 + VDE 0482-332-1-2, cUL FT1, FT2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Continuous Flexibility

very good

Sunlight resistance

acc. to HD 605

Ozone resistance

acc. to DIN EN 50396

Salt water resistance

acc. to UL 1309

Schadstofffrei

gemäß RoHS-Richtlinie der Europäischen Union

Dimensions

item no. Screen No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 10% Copper figure Cable weight ≈
L09100315unscreened3 x 1,50 mm²0,16 mm6,2 mm43,2 kg/km64 kg/km Send inquiry
L09101515unscreened15 x 1,50 mm²0,16 mm15,6 mm216,0 kg/km338 kg/km Send inquiry
L09112510screened3 x 1,50 mm²0,16 mm6,5 mm57,6 kg/km76 kg/km Send inquiry
L09111511screened15 x 1,50 mm²0,16 mm16,3 mm296,2 kg/km403 kg/km Send inquiry
item no.
Screen
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 10%
Copper figure
Cable weight ≈
L09100315
unscreened
3 x 1,50 mm²
0,16 mm
6,2 mm
43,2 kg/km
64 kg/km
L09101515
unscreened
15 x 1,50 mm²
0,16 mm
15,6 mm
216,0 kg/km
338 kg/km
L09112510
screened
3 x 1,50 mm²
0,16 mm
6,5 mm
57,6 kg/km
76 kg/km
L09111511
screened
15 x 1,50 mm²
0,16 mm
16,3 mm
296,2 kg/km
403 kg/km

Other dimensions and colours are possible on request.
