S 960 red

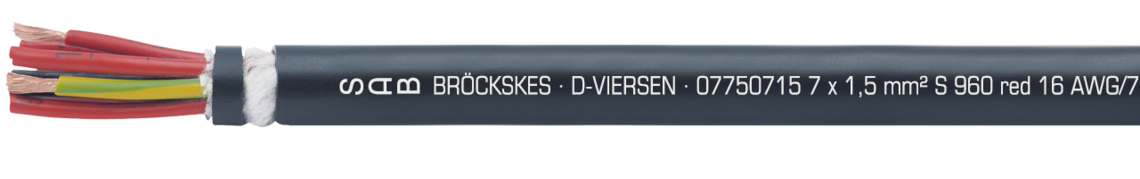

Continuously flexible PVC control cable with numbered red cores

Marking for S 960 red 07751215: SAB BRÖCKSKES · D-VIERSEN · 07750715 7 x 1,5 mm² S 960 red 16 AWG/7c 07751607 UL AWM Style 2587 90°C 600V CSA AWM I/II A/B 90°C 600V FT1 FT2 CE

Download data sheet for S 960 red

Questions about our products?

Application

S 960 red is a continuously flexible PVC control with numbered red cores and reinforced outer sheath. This superfine stranded cable is recommended for use in wood working and packaging machines, assembly lines, automation plants, and it is also suitable for the American market.

Outstanding features

very good flexibility
superfine stranded conductors (class 6)
small bending radius
reinforced outer sheath

Additional information

Possible on request!

with grey outer sheath and black or blue cores

Construction

Conductor	bare copper strands acc. to IEC 60228, VDE 0295, class 6
Insulation	PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
Colour code	red cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Stranding	specially adjusted layering with non-woven tape over each layer
Sheath material	PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3
Sheath colour	black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

red cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with

non-woven tape over each layer

Sheath material

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage	Uo/U 300/500 V
Voltage UL/CSA	600 V
Testing voltage	core/core 2000 V
Min. bending radius	continuously flexible: 7,5 x d
Radiation resistance	8 x 10⁷ cJ/kg
Temperature range	DIN VDE fixed laying: -40/+70°C DIN VDE flexible application: +5/+70°C UL/CSA: up to +90°C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL VW-1, CSA FT1, FT2
Oil resistance	acc. to internal standard
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA: up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1, CSA FT1, FT2

Oil resistance

acc. to internal standard

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L07750205	2 x 0,50 mm²	0,16 mm	5,5 mm	10,6 kg/km	40 kg/km	Send inquiry
L07750305	3 x 0,50 mm²	0,16 mm	5,8 mm	15,8 kg/km	47 kg/km	Send inquiry
L07750405	4 x 0,50 mm²	0,16 mm	6,3 mm	21,1 kg/km	57 kg/km	Send inquiry
L07750505	5 x 0,50 mm²	0,16 mm	7 mm	26,4 kg/km	71 kg/km	Send inquiry
L07750705	7 x 0,50 mm²	0,16 mm	8,2 mm	37 kg/km	98 kg/km	Send inquiry
L07751205	12 x 0,50 mm²	0,16 mm	10,1 mm	63,4 kg/km	144 kg/km	Send inquiry
L07751805	18 x 0,50 mm²	0,16 mm	12 mm	95 kg/km	212 kg/km	Send inquiry
L07752505	25 x 0,50 mm²	0,16 mm	14,4 mm	132 kg/km	284 kg/km	Send inquiry
L07753405	34 x 0,50 mm²	0,16 mm	16,2 mm	179,5 kg/km	378 kg/km	Send inquiry
L07755005	50 x 0,50 mm²	0,16 mm	19,1 mm	264 kg/km	523 kg/km	Send inquiry
L07756105	61 x 0,50 mm²	0,16 mm	21,1 mm	322,1 kg/km	655 kg/km	Send inquiry
L07750207	2 x 0,75 mm²	0,16 mm	5,9 mm	14,4 kg/km	47 kg/km	Send inquiry
L07750307	3 x 0,75 mm²	0,16 mm	6,3 mm	21,6 kg/km	57 kg/km	Send inquiry
L07750407	4 x 0,75 mm²	0,16 mm	6,8 mm	28,8 kg/km	68 kg/km	Send inquiry
L07750507	5 x 0,75 mm²	0,16 mm	7,5 mm	36 kg/km	85 kg/km	Send inquiry
L07750707	7 x 0,75 mm²	0,16 mm	9,1 mm	50,4 kg/km	122 kg/km	Send inquiry
L07751207	12 x 0,75 mm²	0,16 mm	11 mm	86,4 kg/km	177 kg/km	Send inquiry
L07751807	18 x 0,75 mm²	0,16 mm	13,1 mm	129,6 kg/km	261 kg/km	Send inquiry
L07752507	25 x 0,75 mm²	0,16 mm	15,8 mm	180 kg/km	354 kg/km	Send inquiry
L07753407	34 x 0,75 mm²	0,16 mm	17,9 mm	244,8 kg/km	474 kg/km	Send inquiry
L07755007	50 x 0,75 mm²	0,16 mm	21,1 mm	360 kg/km	670 kg/km	Send inquiry
L07756107	61 x 0,75 mm²	0,16 mm	23,5 mm	439,2 kg/km	831 kg/km	Send inquiry
L07750210	2 x 1,00 mm²	0,16 mm	6,2 mm	19,2 kg/km	55 kg/km	Send inquiry
L07750310	3 x 1,00 mm²	0,16 mm	6,5 mm	28,8 kg/km	66 kg/km	Send inquiry
L07750410	4 x 1,00 mm²	0,16 mm	7,2 mm	38,4 kg/km	82 kg/km	Send inquiry
L07750510	5 x 1,00 mm²	0,16 mm	7,9 mm	48 kg/km	101 kg/km	Send inquiry
L07750710	7 x 1,00 mm²	0,16 mm	9,4 mm	67,2 kg/km	142 kg/km	Send inquiry
L07751210	12 x 1,00 mm²	0,16 mm	11,5 mm	115,2 kg/km	212 kg/km	Send inquiry
L07751810	18 x 1,00 mm²	0,16 mm	13,7 mm	172,8 kg/km	313 kg/km	Send inquiry
L07752510	25 x 1,00 mm²	0,16 mm	16,5 mm	240 kg/km	424 kg/km	Send inquiry
L07753410	34 x 1,00 mm²	0,16 mm	18,7 mm	326,4 kg/km	569 kg/km	Send inquiry
L07755010	50 x 1,00 mm²	0,16 mm	22,5 mm	480 kg/km	826 kg/km	Send inquiry
L07756110	61 x 1,00 mm²	0,16 mm	24,5 mm	585,6 kg/km	998 kg/km	Send inquiry
L07750215	2 x 1,50 mm²	0,16 mm	6,8 mm	28,8 kg/km	70 kg/km	Send inquiry
L07750315	3 x 1,50 mm²	0,16 mm	7,3 mm	43,2 kg/km	88 kg/km	Send inquiry
L07750415	4 x 1,50 mm²	0,16 mm	8 mm	57,6 kg/km	109 kg/km	Send inquiry
L07750515	5 x 1,50 mm²	0,16 mm	8,8 mm	72 kg/km	135 kg/km	Send inquiry
L07750715	7 x 1,50 mm²	0,16 mm	10,6 mm	100,8 kg/km	192 kg/km	Send inquiry
L07751215	12 x 1,50 mm²	0,16 mm	13 mm	172,8 kg/km	288 kg/km	Send inquiry
L07751815	18 x 1,50 mm²	0,16 mm	15,4 mm	259,2 kg/km	425 kg/km	Send inquiry
L07752515	25 x 1,50 mm²	0,16 mm	18,7 mm	360 kg/km	580 kg/km	Send inquiry
L07753415	34 x 1,50 mm²	0,16 mm	21,1 mm	489,6 kg/km	777 kg/km	Send inquiry
L07755015	50 x 1,50 mm²	0,16 mm	25,1 mm	720 kg/km	1115 kg/km	Send inquiry
L07756115	61 x 1,50 mm²	0,16 mm	27,6 mm	878,4 kg/km	1362 kg/km	Send inquiry
L07750225	2 x 2,50 mm²	0,16 mm	8,9 mm	48 kg/km	117 kg/km	Send inquiry
L07750325	3 x 2,50 mm²	0,16 mm	9,5 mm	72 kg/km	144 kg/km	Send inquiry
L07750425	4 x 2,50 mm²	0,16 mm	10,4 mm	96 kg/km	178 kg/km	Send inquiry
L07750525	5 x 2,50 mm²	0,16 mm	11,6 mm	120 kg/km	223 kg/km	Send inquiry
L07750725	7 x 2,50 mm²	0,16 mm	14 mm	168 kg/km	319 kg/km	Send inquiry
L07751225	12 x 2,50 mm²	0,16 mm	17,3 mm	288 kg/km	480 kg/km	Send inquiry
L07751825	18 x 2,50 mm²	0,16 mm	20,7 mm	432 kg/km	715 kg/km	Send inquiry
L07752525	25 x 2,50 mm²	0,16 mm	25,1 mm	600 kg/km	973 kg/km	Send inquiry
L07750340	3 x 4,00 mm²	0,16 mm	11,3 mm	115,2 kg/km	223 kg/km	Send inquiry
L07750440	4 x 4,00 mm²	0,16 mm	12,4 mm	153,6 kg/km	267 kg/km	Send inquiry
L07750540	5 x 4,00 mm²	0,16 mm	13,8 mm	192 kg/km	342 kg/km	Send inquiry
L07750740	7 x 4,00 mm²	0,16 mm	16,7 mm	268,8 kg/km	493 kg/km	Send inquiry
L07750360	3 x 6,00 mm²	0,21 mm	13,1 mm	172,8 kg/km	319 kg/km	Send inquiry
L07750460	4 x 6,00 mm²	0,21 mm	14,5 mm	230,4 kg/km	381 kg/km	Send inquiry
L07750560	5 x 6,00 mm²	0,21 mm	16,2 mm	288 kg/km	490 kg/km	Send inquiry
L07750760	7 x 6,00 mm²	0,21 mm	19,4 mm	403,2 kg/km	700 kg/km	Send inquiry
L07750361	3 x 10,0 mm²	0,21 mm	16,2 mm	288 kg/km	502 kg/km	Send inquiry
L07750461	4 x 10,0 mm²	0,21 mm	18 mm	384 kg/km	637 kg/km	Send inquiry
L07750561	5 x 10,0 mm²	0,21 mm	20,1 mm	480 kg/km	787 kg/km	Send inquiry
L07750362	3 x 16,0 mm²	0,21 mm	19,4 mm	460,8 kg/km	754 kg/km	Send inquiry
L07750462	4 x 16,0 mm²	0,21 mm	21,5 mm	614,4 kg/km	954 kg/km	Send inquiry
L07750562	5 x 16,0 mm²	0,21 mm	24,1 mm	768 kg/km	1188 kg/km	Send inquiry
L07750463	4 x 25,0 mm²	0,21 mm	26 mm	960 kg/km	1391 kg/km	Send inquiry
L07750563	5 x 25,0 mm²	0,21 mm	29 mm	1200 kg/km	1779 kg/km	Send inquiry
L07750464	4 x 35,0 mm²	0,21 mm	29,8 mm	1344 kg/km	1911 kg/km	Send inquiry
L07750564	5 x 35,0 mm²	0,21 mm	32,9 mm	1680 kg/km	2354 kg/km	Send inquiry
L07750465	4 x 50,0 mm²	0,21 mm	34,9 mm	1920 kg/km	2672 kg/km	Send inquiry
