S 960 blue

UL/CSA flexible PVC control cable with numbered blue cores

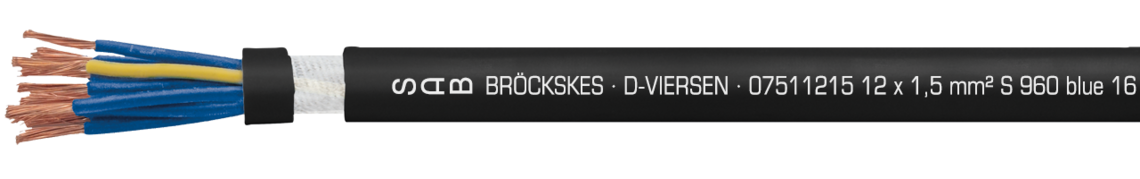

Marking for S 960 blue 07511215: SAB BRÖCKSKES · D-VIERSEN · 07511215 12 x 1,5 mm² S 960 blue 16 AWG/12c 07511612 UL AWM Style 2587 90°C 600V CSA AWM I/II A/B 90°C 600V FT1 FT2 CE

Download data sheet for S 960 blue

Questions about our products?

Application

S 960 blue is a continuously flexible PVC control with numbered blue cores and a small bending radius. This track cable with UL AWM Style 2587 is recommended for use in wood working and packaging machines, assembly lines, automation plants, and it is also suitable for the American market.

Outstanding features

very good flexibility
small bending radius
reinforced outer sheath

Additional information

Possible on request!

with grey outer sheath and black or red cores

Construction

Conductor	bare copper strands acc. to IEC 60228, VDE 0295, class 6
Insulation	PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
Colour code	blue cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Stranding	specially adjusted layering with non-woven tape over each layer
Sheath material	PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3
Sheath colour	black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

blue cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with

non-woven tape over each layer

Sheath material

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage	Uo/U 300/500 V
Voltage UL/CSA	600 V
Testing voltage	core/core 2000 V
Min. bending radius	continuously flexible: 7,5 x d
Radiation resistance	8 x 10⁷ cJ/kg
Temperature range	DIN VDE fixed laying: -40/+70°C DIN VDE flexible application: +5/+70°C UL/CSA: up to: + 90°C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL VW-1, CSA FT1, FT2
Oil resistance	acc. to internal standard
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 2000 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA: up to: + 90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1, CSA FT1, FT2

Oil resistance

acc. to internal standard

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L07510205	2 x 0,50 mm²	0,16 mm	5,5 mm	10,6 kg/km	40 kg/km	Send inquiry
L07510305	3 x 0,50 mm²	0,16 mm	5,8 mm	15,8 kg/km	47 kg/km	Send inquiry
L07510405	4 x 0,50 mm²	0,16 mm	6,3 mm	21,1 kg/km	57 kg/km	Send inquiry
L07510505	5 x 0,50 mm²	0,16 mm	7 mm	26,4 kg/km	71 kg/km	Send inquiry
L07510705	7 x 0,50 mm²	0,16 mm	8,2 mm	37 kg/km	98 kg/km	Send inquiry
L07511205	12 x 0,50 mm²	0,16 mm	10,1 mm	63,4 kg/km	144 kg/km	Send inquiry
L07511805	18 x 0,50 mm²	0,16 mm	12 mm	95 kg/km	212 kg/km	Send inquiry
L07512505	25 x 0,50 mm²	0,16 mm	14,4 mm	132 kg/km	284 kg/km	Send inquiry
L07513405	34 x 0,50 mm²	0,16 mm	16,2 mm	179,5 kg/km	378 kg/km	Send inquiry
L07515005	50 x 0,50 mm²	0,16 mm	19,1 mm	264 kg/km	523 kg/km	Send inquiry
L07516105	61 x 0,50 mm²	0,16 mm	21,1 mm	322,1 kg/km	655 kg/km	Send inquiry
L07510207	2 x 0,75 mm²	0,16 mm	5,9 mm	14,4 kg/km	47 kg/km	Send inquiry
L07510307	3 x 0,75 mm²	0,16 mm	6,3 mm	21,6 kg/km	57 kg/km	Send inquiry
L07510407	4 x 0,75 mm²	0,16 mm	6,8 mm	28,8 kg/km	68 kg/km	Send inquiry
L07510507	5 x 0,75 mm²	0,16 mm	7,5 mm	36 kg/km	85 kg/km	Send inquiry
L07510707	7 x 0,75 mm²	0,16 mm	9,1 mm	50,4 kg/km	122 kg/km	Send inquiry
L07511207	12 x 0,75 mm²	0,16 mm	11 mm	86,4 kg/km	177 kg/km	Send inquiry
L07511807	18 x 0,75 mm²	0,16 mm	13,1 mm	129,6 kg/km	261 kg/km	Send inquiry
L07512507	25 x 0,75 mm²	0,16 mm	15,8 mm	180 kg/km	354 kg/km	Send inquiry
L07513407	34 x 0,75 mm²	0,16 mm	17,9 mm	244,8 kg/km	474 kg/km	Send inquiry
L07515007	50 x 0,75 mm²	0,16 mm	21,1 mm	360 kg/km	670 kg/km	Send inquiry
L07516107	61 x 0,75 mm²	0,16 mm	23,5 mm	439,2 kg/km	831 kg/km	Send inquiry
L07510210	2 x 1,00 mm²	0,16 mm	6,2 mm	19,2 kg/km	55 kg/km	Send inquiry
L07510310	3 x 1,00 mm²	0,16 mm	6,5 mm	28,8 kg/km	66 kg/km	Send inquiry
L07510410	4 x 1,00 mm²	0,16 mm	7,2 mm	38,4 kg/km	82 kg/km	Send inquiry
L07510510	5 x 1,00 mm²	0,16 mm	7,9 mm	48 kg/km	101 kg/km	Send inquiry
L07510710	7 x 1,00 mm²	0,16 mm	9,4 mm	67,2 kg/km	142 kg/km	Send inquiry
L07511210	12 x 1,00 mm²	0,16 mm	11,5 mm	115,2 kg/km	212 kg/km	Send inquiry
L07511810	18 x 1,00 mm²	0,16 mm	13,7 mm	172,8 kg/km	313 kg/km	Send inquiry
L07512510	25 x 1,00 mm²	0,16 mm	16,5 mm	240 kg/km	424 kg/km	Send inquiry
L07513410	34 x 1,00 mm²	0,16 mm	18,7 mm	326,4 kg/km	569 kg/km	Send inquiry
L07515010	50 x 1,00 mm²	0,16 mm	22,5 mm	480 kg/km	826 kg/km	Send inquiry
L07516110	61 x 1,00 mm²	0,16 mm	24,5 mm	585,6 kg/km	998 kg/km	Send inquiry
L07510215	2 x 1,50 mm²	0,16 mm	6,8 mm	28,8 kg/km	70 kg/km	Send inquiry
L07510315	3 x 1,50 mm²	0,16 mm	7,3 mm	43,2 kg/km	88 kg/km	Send inquiry
L07510415	4 x 1,50 mm²	0,16 mm	8 mm	57,6 kg/km	109 kg/km	Send inquiry
L07510515	5 x 1,50 mm²	0,16 mm	8,8 mm	72 kg/km	135 kg/km	Send inquiry
L07510715	7 x 1,50 mm²	0,16 mm	10,6 mm	100,8 kg/km	192 kg/km	Send inquiry
L07511215	12 x 1,50 mm²	0,16 mm	13 mm	172,8 kg/km	288 kg/km	Send inquiry
L07511815	18 x 1,50 mm²	0,16 mm	15,4 mm	259,2 kg/km	425 kg/km	Send inquiry
L07512515	25 x 1,50 mm²	0,16 mm	18,7 mm	360 kg/km	580 kg/km	Send inquiry
L07513415	34 x 1,50 mm²	0,16 mm	21,1 mm	489,6 kg/km	777 kg/km	Send inquiry
L07515015	50 x 1,50 mm²	0,16 mm	25,1 mm	720 kg/km	1115 kg/km	Send inquiry
L07516115	61 x 1,50 mm²	0,16 mm	27,6 mm	878,4 kg/km	1362 kg/km	Send inquiry
L07510225	2 x 2,50 mm²	0,16 mm	8,9 mm	48 kg/km	117 kg/km	Send inquiry
L07510325	3 x 2,50 mm²	0,16 mm	9,5 mm	72 kg/km	144 kg/km	Send inquiry
L07510425	4 x 2,50 mm²	0,16 mm	10,4 mm	96 kg/km	178 kg/km	Send inquiry
L07510525	5 x 2,50 mm²	0,16 mm	11,6 mm	120 kg/km	223 kg/km	Send inquiry
L07510725	7 x 2,50 mm²	0,16 mm	14 mm	168 kg/km	319 kg/km	Send inquiry
L07511225	12 x 2,50 mm²	0,16 mm	17,3 mm	288 kg/km	480 kg/km	Send inquiry
L07511825	18 x 2,50 mm²	0,16 mm	20,7 mm	432 kg/km	715 kg/km	Send inquiry
L07512525	25 x 2,50 mm²	0,16 mm	25,1 mm	600 kg/km	973 kg/km	Send inquiry
L07510340	3 x 4,00 mm²	0,16 mm	11,3 mm	115,2 kg/km	223 kg/km	Send inquiry
L07510440	4 x 4,00 mm²	0,16 mm	12,4 mm	153,6 kg/km	267 kg/km	Send inquiry
L07510540	5 x 4,00 mm²	0,16 mm	13,8 mm	192 kg/km	342 kg/km	Send inquiry
L07510740	7 x 4,00 mm²	0,16 mm	16,7 mm	268,8 kg/km	493 kg/km	Send inquiry
L07510360	3 x 6,00 mm²	0,21 mm	13,1 mm	172,8 kg/km	319 kg/km	Send inquiry
L07510460	4 x 6,00 mm²	0,21 mm	14,5 mm	230,4 kg/km	381 kg/km	Send inquiry
L07510560	5 x 6,00 mm²	0,21 mm	16,2 mm	288 kg/km	490 kg/km	Send inquiry
L07510760	7 x 6,00 mm²	0,21 mm	19,4 mm	403,2 kg/km	700 kg/km	Send inquiry
L07510361	3 x 10,0 mm²	0,21 mm	16,2 mm	288 kg/km	502 kg/km	Send inquiry
L07510461	4 x 10,0 mm²	0,21 mm	18 mm	384 kg/km	637 kg/km	Send inquiry
L07510561	5 x 10,0 mm²	0,21 mm	20,1 mm	480 kg/km	787 kg/km	Send inquiry
L07510362	3 x 16,0 mm²	0,21 mm	19,4 mm	460,8 kg/km	754 kg/km	Send inquiry
L07510462	4 x 16,0 mm²	0,21 mm	21,5 mm	614,4 kg/km	954 kg/km	Send inquiry
L07510562	5 x 16,0 mm²	0,21 mm	24,1 mm	768 kg/km	1188 kg/km	Send inquiry
L07510463	4 x 25,0 mm²	0,21 mm	26 mm	960 kg/km	1391 kg/km	Send inquiry
L07510563	5 x 25,0 mm²	0,21 mm	29 mm	1200 kg/km	1779 kg/km	Send inquiry
L07510464	4 x 35,0 mm²	0,21 mm	29,8 mm	1344 kg/km	1911 kg/km	Send inquiry
L07510564	5 x 35,0 mm²	0,21 mm	32,9 mm	1680 kg/km	2354 kg/km	Send inquiry
L07510465	4 x 50,0 mm²	0,21 mm	34,9 mm	1920 kg/km	2672 kg/km	Send inquiry
