S 180 HT

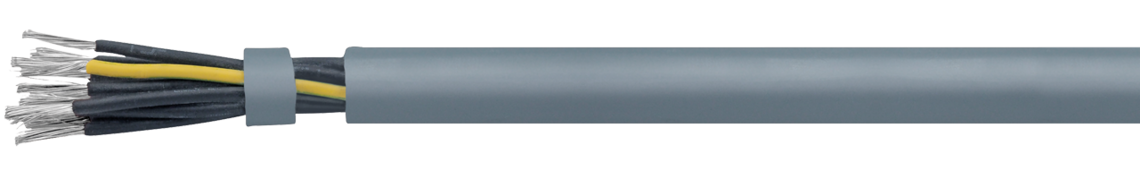

Continuously flexible high temperature control cable with numbered cores and Besilen® outer sheath

Application

High Temperature Cable with numbered cores and Silicone outer sheath for use in conveyor systems in steel production and steel processing industries or at feeding lines for blast furnaces. This high flexible control cable is for use in cable tracks with extremely high ambient temperatures like in steel industry.

Outstanding features

extreme temperature resistance
high notch resistance
very good flexibility

Construction

Conductor	tinned copper strands acc. to IEC 60228, VDE 0295, class 6
Insulation	FEP
Colour code	black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Stranding	specially adjusted layering with non-woven tape over each layer
Wrapping	tape
Sheath material	special Besilen ®
Sheath colour	grey (similar RAL 7000)

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

FEP

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with non-woven tape over each layer

Wrapping

tape

Sheath material

special Besilen ®

Sheath colour

grey (similar RAL 7000)

Technical data

Nominal voltage	Uo/U 0,6/1 kV
Testing voltage	core/core 4000 V
Min. bending radius	continuously flexible:10 x d
Temperature range	fixed laying: -25/+180°C flexible application: -25/+180°C short-time use: +200°C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Flexibility	very good
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

Min. bending radius

continuously flexible:10 x d

Temperature range

fixed laying: -25/+180°C

flexible application: -25/+180°C

short-time use: +200°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L31800315	3 x 1,50 mm²	0,16 mm	7,7 mm	43,2 kg/km	94 kg/km	Send inquiry
L31800415	4 x 1,50 mm²	0,16 mm	8,3 mm	57,6 kg/km	116 kg/km	Send inquiry
L31800515	5 x 1,50 mm²	0,16 mm	9,2 mm	72,0 kg/km	147 kg/km	Send inquiry
L31800715	7 x 1,50 mm²	0,16 mm	10,6 mm	100,8 kg/km	200 kg/km	Send inquiry
L31800325	3 x 2,50 mm²	0,16 mm	9,4 mm	72,0 kg/km	144 kg/km	Send inquiry
L31800425	4 x 2,50 mm²	0,16 mm	10,1 mm	96,0 kg/km	177 kg/km	Send inquiry
L31800525	5 x 2,50 mm²	0,16 mm	11,5 mm	120,0 kg/km	228 kg/km	Send inquiry
L31800625	6 x 2,50 mm²	0,16 mm	12,8 mm	144,0 kg/km	268 kg/km	Send inquiry
L31800725	7 x 2,50 mm²	0,16 mm	13,5 mm	168,0 kg/km	320 kg/km	Send inquiry
L31801225	12 x 2,50 mm²	0,16 mm	16,5 mm	288,0 kg/km	470 kg/km	Send inquiry
L31802025	20 x 2,50 mm²	0,16 mm	20,2 mm	480,0 kg/km	762 kg/km	Send inquiry
L31800440	4 x 4,00 mm²	0,16 mm	12,2 mm	153,6 kg/km	263 kg/km	Send inquiry
L31800540	5 x 4,00 mm²	0,16 mm	13,4 mm	192,0 kg/km	333 kg/km	Send inquiry
L31800740	7 x 4,00 mm²	0,16 mm	15,9 mm	268,8 kg/km	469 kg/km	Send inquiry
L31801240	12 x 4,00 mm²	0,16 mm	19,6 mm	460,8 kg/km	707 kg/km	Send inquiry
L31800360	3 x 6,00 mm²	0,21 mm	13,4 mm	172,8 kg/km	302 kg/km	Send inquiry
L31800460	4 x 6,00 mm²	0,21 mm	14,6 mm	230,4 kg/km	408 kg/km	Send inquiry
L31800560	5 x 6,00 mm²	0,21 mm	16,4 mm	288,0 kg/km	495 kg/km	Send inquiry
L31800760	7 x 6,00 mm²	0,21 mm	19,4 mm	403,2 kg/km	697 kg/km	Send inquiry
L31800361	3 x 10,0 mm²	0,21 mm	15,3 mm	288,0 kg/km	457 kg/km	Send inquiry
L31800461	4 x 10,0 mm²	0,21 mm	17,0 mm	384,0 kg/km	609 kg/km	Send inquiry
L31800561	5 x 10,0 mm²	0,21 mm	18,9 mm	480,0 kg/km	745 kg/km	Send inquiry
L31800462	4 x 16,0 mm²	0,21 mm	20,7 mm	614,4 kg/km	912 kg/km	Send inquiry
L31800562	5 x 16,0 mm²	0,21 mm	23,2 mm	768,0 kg/km	1146 kg/km	Send inquiry
L31800363	3 x 25,0 mm²	0,21 mm	21,5 mm	720,0 kg/km	999 kg/km	Send inquiry
L31800463	4 x 25,0 mm²	0,21 mm	24,0 mm	960,0 kg/km	1312 kg/km	Send inquiry
L31800164	1 x 35,0 mm²	0,21 mm	12,9 mm	336,0 kg/km	429 kg/km	Send inquiry
L31800464	4 x 35,0 mm²	0,21 mm	28,2 mm	1344,0 kg/km	1800 kg/km	Send inquiry
L31800167	1 x 95,0 mm²	0,31 mm	21,1 mm	912,0 kg/km	1116 kg/km	Send inquiry
L31800169	1 x 150,0 mm²	0,31 mm	25,5 mm	1440,0 kg/km	1745 kg/km	Send inquiry
