Silicone (Besilen®) insulated cable with alu foil screen, 1,5 mm² wire
Application

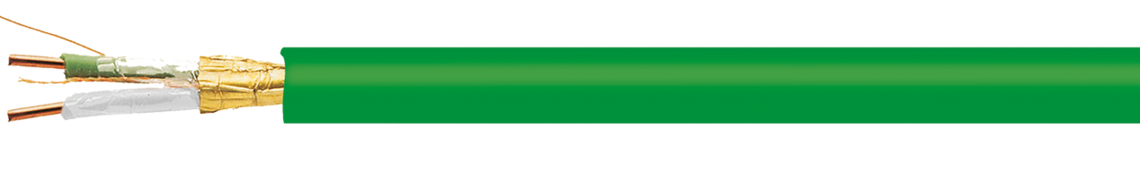

The thermocouple type K, type J or type T cable is screened by alu-foil and has a PETP foil wrapping with bare copper earth wire of 0,5 mm ∅. It is available as compensating and extension cable.
Additional information
With alu foil screen!
DIN 43710 / 43714 (not valid for type B*)
* Not standardized compensating cable for thermocouples type B with application temperatures up to 100 °C resp. 200 °C.
C = compensating cables · X = extension cables
Construction
| Insulation | Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1 |
|---|---|
| Stranding | 2 cores together |
| Wrapping | PETP foil, with bare copper earth wire 0,5 mm Ø |
| Screen | Alu-foil |
| Sheath material | Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1 |
| Shape | round |
| Conductor construction | wire |
| Conductor cross section | 1,5 mm² |
| Outer diameter | approx. 6,4 mm |
| Weight/100m | approx. 5,7 kg |
Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1
2 cores together
PETP foil,
with bare copper earth wire 0,5 mm Ø
Alu-foil
Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1
round
wire
1,5 mm²
approx. 6,4 mm
approx. 5,7 kg
Technical data
| Min. bending radius | 12 x d |
|---|---|
| Radiation resistance | 2 x 10^7 cJ/kg |
| Temperature range of insulation | fixed laying: -40/+180°C flexible application: -25/+180°C short-time use: +250°C |
| Insulation resistance | > 1 M Ω x km |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Corrosiveness of conflagration gases | in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
12 x d
2 x 10^7 cJ/kg
fixed laying: -40/+180°C
flexible application: -25/+180°C
short-time use: +250°C
> 1 M Ω x km
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
acc. to RoHS directive of the European Union
Dimensions
| item no. | Colour code | For thermocouple |
Thermocouple material +Pol/-Pol | Cable type |
Colour code core insulation +Pol/-Pol (Sheath) | EMF at 100 °C | |
|---|---|---|---|---|---|---|---|
| L04283958 | IEC 60584 | Type T | Cu - CuNi | TX | brown/white (brown) | 4,28 mV | Send inquiry |
| L04283952 | IEC 60584 | Type J | Fe - CuNi | JX | black/white (black) | 5,27 mV | Send inquiry |
| L04283995 | IEC 60584 | Type K | NiCr - Ni | KCA | green/white (green) | 4,10 mV | Send inquiry |
| L04283999 | IEC 60584 | Type K | NiCr - Ni | KCB | green/white (green) | 4,10 mV | Send inquiry |
| L04283954 | IEC 60584 | Type K | NiCr - Ni | KX | green/white (green) | 4,10 mV | Send inquiry |
| L04283953 | IEC 60584 | Type E | NiCr - CuNi | EX | purple/white (purple) | 6,32 mV | Send inquiry |
| L04283997 | IEC 60584 | Type R/S | PtRh13 - PTPtRh10 - PT | R/SCB | orange/white (orange) | 0,65 mV | Send inquiry |
| L04283991 | IEC 60584 | Type N | NiCrSi - NiSi | NC | rosa/white (rosa) | 2,77 mV | Send inquiry |
| L04283992 | DIN 43710 / 43714 | Type L | Fe CuNi | LX | red/blue (blue) | 5,37 mV | Send inquiry |
| L04283994 | DIN 43710 / 43715 | Type K | ─ | KCA | ─ | 4,10 mV | Send inquiry |
| L04283996 | DIN 43710 / 43716 | Type R/S | ─ | R/SCB | ─ | 0,65 mV | Send inquiry |
| L04283998 | DIN 43710 / 43717 | Type U | Cu - CuNi | UX | red/brown (brown) | 4,25 mV | Send inquiry |
| L04283901 | DIN 43710 / 43718 | Type B* | ─ | BC-100 | ─ | 0,00 mV | Send inquiry |
| L04283902 | DIN 43710 / 43719 | Type B* | ─ | BC-200 | ─ | 0,033 mV | Send inquiry |
material +Pol/-Pol
core insulation
+Pol/-Pol (Sheath)
We continue to manufacture compensating and extension cables with colour code acc. to DIN 43714 and the basic values of DIN 43710.
