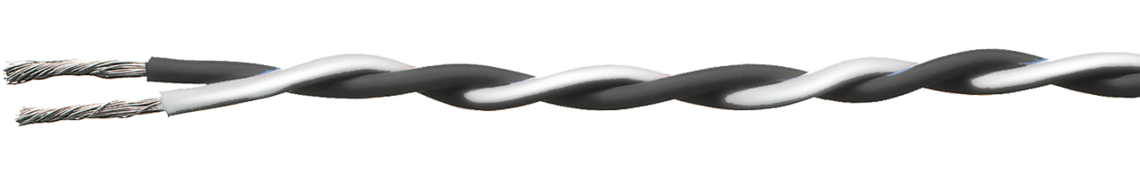

A 1 L twisted
PVC-insulated cores, twisted
Application
The PVC insulated cable with twisted strands is flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2. This cable type is available as compensating and extension cable.
Additional information
Also available with cross-sections 1,0 mm², 0,75 mm², 0,5 mm² and 0,22 mm²!
DIN 43710 / 43714 (not valid for type B*)
* Not standardized compensating cable for thermocouples type B with application temperatures up to 100 °C resp. 200 °C.
C = compensating cables · X = extension cables
Construction
| Insulation | PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3 |
|---|---|
| Stranding | 2 cores together |
| Shape | round |
| Conductor construction | strand |
| Conductor cross section | 1,5 mm² |
| Outer diameter | approx. 4,8 mm |
| Weight/100m | approx. 3,2 kg |
PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
2 cores together
round
strand
1,5 mm²
approx. 4,8 mm
approx. 3,2 kg
Technical data
| Min. bending radius | 7,5 x d |
|---|---|
| Radiation resistance | 8 x 10^7 cJ/kg |
| Temperature range of insulation | fixed laying: -40/+70°C flexible application: +5/+70°C |
| Insulation resistance | > 1 M Ω x km |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
7,5 x d
8 x 10^7 cJ/kg
fixed laying: -40/+70°C
flexible application: +5/+70°C
> 1 M Ω x km
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
acc. to RoHS directive of the European Union
Dimensions
| item no. | Colour code | For thermocouple |
Thermocouple material +Pol/-Pol | Cable type |
Colour code core insulation +Pol/-Pol (Sheath) | EMF at 100 °C | |
|---|---|---|---|---|---|---|---|
| L04018958 | IEC 60584 | Type T | Cu - CuNi | TX | brown/white (brown) | 4,28 mV | Send inquiry |
| L04018952 | IEC 60584 | Type J | Fe - CuNi | JX | black/white (black) | 5,27 mV | Send inquiry |
| L04018995 | IEC 60584 | Type K | NiCr - Ni | KCA | green/white (green) | 4,10 mV | Send inquiry |
| L04018999 | IEC 60584 | Type K | NiCr - Ni | KCB | green/white (green) | 4,10 mV | Send inquiry |
| L04018954 | IEC 60584 | Type K | NiCr - Ni | KX | green/white (green) | 4,10 mV | Send inquiry |
| L04018953 | IEC 60584 | Type E | NiCr - CuNi | EX | purple/white (purple) | 6,32 mV | Send inquiry |
| L04018997 | IEC 60584 | Type R/S | PtRh13 - PTPtRh10 - PT | RCB/SCB | orange/white (orange) | 0,65 mV | Send inquiry |
| L04018991 | IEC 60584 | Type N | NiCrSi - NiSi | NC | pink/white (pink) | 2,77 mV | Send inquiry |
| L04018992 | DIN 43710 / 43714 | Type L | Fe CuNi | LX | red/blue (blue) | 5,37 mV | Send inquiry |
| L04018994 | DIN 43710 / 43715 | Type K | NiCr - Ni | KCA | red/green (green) | 4,10 mV | Send inquiry |
| L04018996 | DIN 43710 / 43716 | Type R/S | PtRh13 - PTPtRh10 - PT | R/SCB | orange/white (white) | 0,65 mV | Send inquiry |
| L04018998 | DIN 43710 / 43717 | Type U | Cu - CuNi | UX | red/brown (brown) | 4,25 mV | Send inquiry |
| L04018901 | DIN 43710 / 43718 | Type B* | ─ | BC-100 | ─ | 0,00 mV | Send inquiry |
| L04018902 | DIN 43710 / 43719 | Type B* | ─ | BC-200 | ─ | 0,033 mV | Send inquiry |
material +Pol/-Pol
core insulation
+Pol/-Pol (Sheath)
We continue to manufacture compensating and extension cables with colour code acc. to DIN 43714 and the basic values of DIN 43710.
