SABclean CATLine CAT 5e S
Industrial Ethernet CAT 5e Cable, suitable for cable tracks

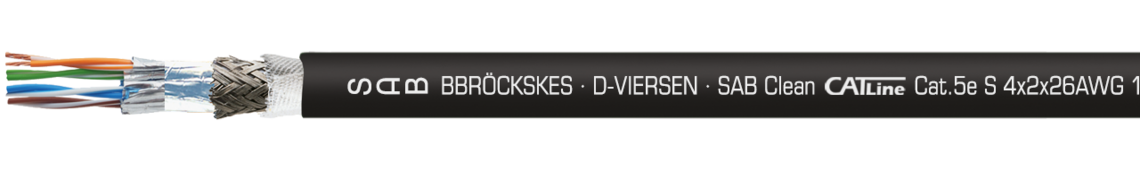

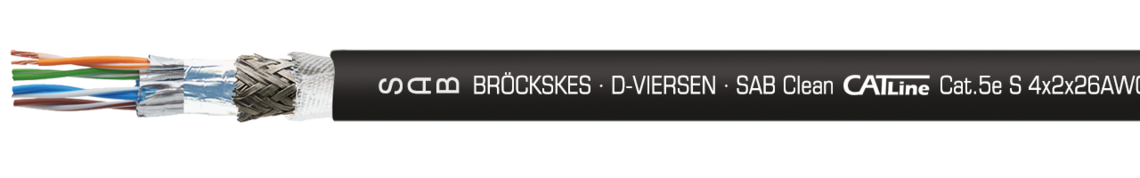

Marking for SABClean CATLine CAT 5e S: SAB BRÖCKSKES · D-VIERSEN · SABClean Cat.5e S 4x2x26AWG 1577-9001 UL AWM Style 20549 80°C 300V CE RoHS and current meter marking
Application
Highly flexible, drag chain Industrial Ethernet cable CAT 5e for clean room applications. This drag chain cable has a small bending radius of 10 x d (flexible application) and 15 x d (continuously flexible). The cable is oil resistant according to UL 758 and has a good fire performance (flame retardant and self-extinguishing according to IEC 60332-1-2 + VDE 0482-332-1-2 UL Horizontal Flame Test FT2).
Additional information
Cleanroom classification
DIN EN ISO 14644-1 air cleanliness class 1
Also possible as harnessed cable with M12 or RJ 45 plug!

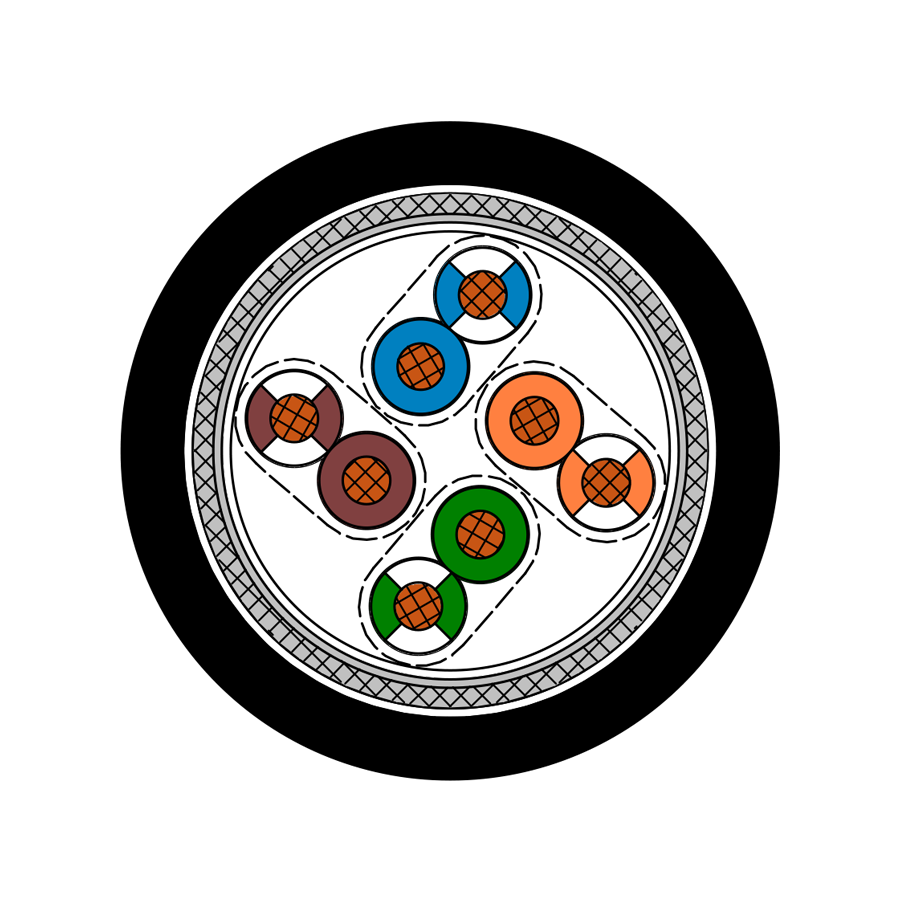

Construction
| Dimension | 4 x 2 x 26 AWG |
|---|---|
| Conductor | bare copper strands, fine wire |
| Insulation | special polymer |
| Colour code | white-blue/blue, white-orange/orange, white-green/green, white-brown/brown |
| Stranding | cores twisted to pairs, pairs together |
| Screen | alu foil and tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | TPE |
| Sheath colour | black (RAL 9005) |
4 x 2 x 26 AWG
bare copper strands, fine wire
special polymer
white-blue/blue, white-orange/orange, white-green/green, white-brown/brown
cores twisted to pairs, pairs together
alu foil and tinned copper braiding
non-woven tape
TPE
black (RAL 9005)
Technical data
| Item number | 1577-9001 |
|---|---|
| Peak operating voltage | max. 90 V |
| Voltage UL | 300 V |
| Testing voltage | core/core 2000 V core/screen 2000 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d continuously flexible: 15 x d |
| Temperature range | UL: up to +80 °C fixed laying: -40/+70 °C flexible application: -30/+70 °C |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Flame test | UL Horizontal Flame Test FT2 |
| Characteristic impedance | 100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-2-2 / CAT 5 |
| Oil resistance | very good - Oil 60 °C acc. to UL 758 |
| Flexibility | very good |
| Air cleanliness class 1 | acc. to DIN EN ISO 14644-1 |
| UL Style | 20549 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
1577-9001
max. 90 V
300 V
core/core 2000 V
core/screen 2000 V
fixed laying: 5 x d
flexible application: 10 x d
continuously flexible: 15 x d
UL: up to +80 °C
fixed laying: -40/+70 °C
flexible application: -30/+70 °C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
UL Horizontal Flame Test FT2
100Ω ± 10Ω,
fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-2-2 / CAT 5
very good - Oil 60 °C acc. to UL 758
very good
acc. to DIN EN ISO 14644-1
20549
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | max. outer-ø | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| L15779001 | 4 x 2 x 26 AWG | 6,4 mm | 31,8 kg/km | 48 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
