DR PN 689 P Highflex
reeling CAT 5 cable

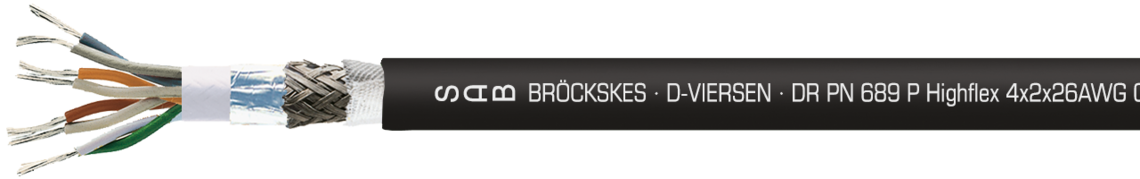

Marking for DR PN 689 P Highflex 06899001: SAB BRÖCKSKES · D-VIERSEN · DR PN 689 P Highflex 4x2x26AWG CE
Application
The DR PN 689 P Highflex is a reeling, special Industrial Ethernet Cat 5 cable with PUR outer jacket and SABIX® core insulation. Industrial Ethernet is a young and rapidly developing network technology. SAB has developed this Ethernet cable especially for the automation industry.
Outstanding features
- halogen-free
- very good oil resistance
- reeling cable
Additional information
also possible as harnessed cable with M12 or RJ 45 plug
Construction
| Dimension | 4 x 2 x 26 AWG |
|---|---|
| Conductor | tinned copper strands, fine wires |
| Insulation | SABIX® |
| Colour code | blue, orange, green, brown + 4 white cores with consecutive numbers |
| Stranding | twisted to pairs and pairs together |
| Wrapping | PETP-foil |
| Inner sheath | SABIX® |
| Screen | alu foil and tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR / supporting braid / PUR |
| Sheath colour | black (similar RAL 9005) |
4 x 2 x 26 AWG
tinned copper strands, fine wires
SABIX®
blue, orange, green, brown + 4 white cores with consecutive numbers
twisted to pairs and pairs together
PETP-foil
SABIX®
alu foil and tinned copper braiding
non-woven tape
PUR / supporting braid / PUR
black (similar RAL 9005)
Technical data
| Peak operating voltage | VDE: max 350 V |
|---|---|
| Testing voltage | core/core: 1500 V core/screen: 1200 V |
| Min. bending radius | for laying and installation (fixed laying): 5 x d for repeated winding action (flexible): 10 x d guided on deflection pulleys(flexible): 12 x d |
| Temperature range | VDE fixed laying: -40/+90 °C VDE flexible application: -30/+90 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Oil resistance | |
| Characteristic impedance | 100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-2-2 (CAT 5 acc. to EN 50173-1) |
| Application | suitable for EtherCAT and EtherNET/IP applications |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
VDE: max 350 V
core/core: 1500 V
core/screen: 1200 V
for laying and installation (fixed laying): 5 x d
for repeated winding action (flexible): 10 x d
guided on deflection pulleys(flexible): 12 x d
VDE fixed laying: -40/+90 °C
VDE flexible application: -30/+90 °C
acc. to IEC 60754-1 + VDE 0482-754-1
100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-2-2 (CAT 5 acc. to EN 50173-1)
suitable for EtherCAT and EtherNET/IP applications
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Approx. outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C acc. to VDE 0812 max. Ω/km |
Tensile strength max. | |
|---|---|---|---|---|---|---|---|
| L06892202 | 2 x 2 x 26 AWG | 8,7 mm | 34,3 mm | 85 kg/km | 139 Ω/km | 200 N | Send inquiry |
| L06899001 | 4 x 2 x 26 AWG | 8,7 mm | 34,3 kg/km | 85 kg/km | 139 Ω/km | 200 N | Send inquiry |
at 20°C acc. to VDE 0812
max. Ω/km
max.
Other dimensions and colours are possible on request.
