PN 679
PUR Ethernet cable type B for flexible applications, twisted pairs

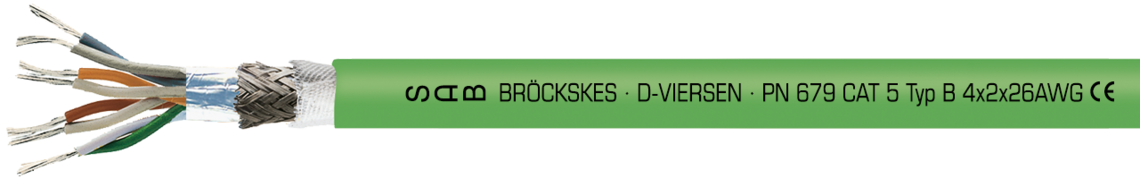

Marking for PN 679 Type B 06792604: SAB BRÖCKSKES · D-VIERSEN · PN 679 CAT 5 Typ B 4x2x26AWG CE
Application
Ethernet cable type B with an operating peak voltage of max. 350 V for flexible use. The cable was developed especially for the high requirements in the automation industry.
Outstanding features
- halogen-free
- very good oil resistance
Additional information
also possible as harnessed cable with M12 or RJ 45 plug
Construction
| Dimension | 4 x 2 x 26 AWG |
|---|---|
| Conductor | tinned copper strands, fine wires acc. to VDE 0812 |
| Insulation | PE, L/MD acc. to EN 50290-2-23 |
| Colour code | white cores with numbers 1 - 4 (+ blue, orange, green, brown) |
| Stranding | twisted to pairs and pairs together |
| Wrapping | PETP foil |
| Screen | alu foil and tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR |
| Sheath colour | green (similar RAL 6018) |
4 x 2 x 26 AWG
tinned copper strands, fine wires acc. to VDE 0812
PE, L/MD acc. to EN 50290-2-23
white cores with numbers 1 - 4 (+ blue, orange, green, brown)
twisted to pairs and pairs together
PETP foil
alu foil and tinned copper braiding
non-woven tape
PUR
green (similar RAL 6018)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Testing voltage | core/core: 1500 V core/screen: 1200 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d |
| Temperature range | VDE fixed laying: -40/+70°C VDE flexible application: -40/+70°C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Oil resistance | very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Characteristic impedance | 100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1) |
| Application | suitable for EtherCAT and EtherNET/IP applications |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
core/core: 1500 V
core/screen: 1200 V
fixed laying: 5 x d
flexible application: 10 x d
VDE fixed laying: -40/+70°C
VDE flexible application: -40/+70°C
acc. to IEC 60754-1 + VDE 0482-754-1
very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency
with reference to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)
suitable for EtherCAT and EtherNET/IP applications
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | max. core-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C acc. to VDE 0812 max. Ω/km | |
|---|---|---|---|---|---|---|---|
| L06792604 | 4 x 2 x 26 AWG | 1,05 mm | 6,9 mm | 35 kg/km | 54 kg/km | 148 Ω/km | Send inquiry |
at 20°C acc. to VDE 0812
max. Ω/km
Other dimensions and colours are possible on request.
