PN 678
PVC Ethernet cable type A for fixed installation, twisted pairs

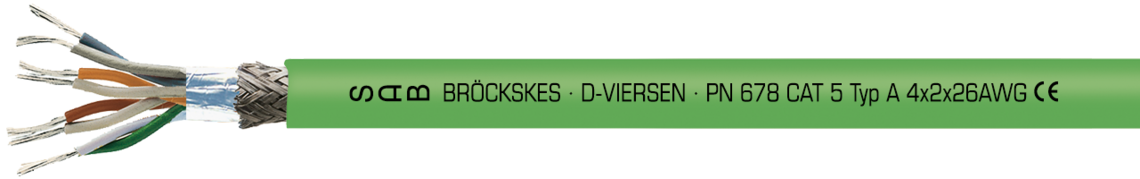

Marking for PN 678 Type A 06782604: SAB BRÖCKSKES · D-VIERSEN · PN 678 CAT 5 Typ A 4x2x26AWG CE
Application
The PVC Ethernet cable type A for fixed laying is twisted in pairs and has a minimum bending radius of 5 x d. The cable is specially designed for data transmission in the automation industry.
Additional information
also possible as harnessed cable with M12 or RJ 45 plug
Construction
| Dimension | 4 x 2 x 26 AWG |
|---|---|
| Conductor | tinned copper wire |
| Insulation | PE, L/MD acc. to EN 50290-2-23 |
| Colour code | white cores with numbers 1-4 + (blue, orange, green, brown) |
| Stranding | twisted to pairs and pairs together |
| Screen | alu foil and tinned copper braiding |
| Sheath material | PVC |
| Sheath colour | green (similar RAL 6018) |
4 x 2 x 26 AWG
tinned copper wire
PE, L/MD acc. to EN 50290-2-23
white cores with numbers 1-4 + (blue, orange, green, brown)
twisted to pairs and pairs together
alu foil and tinned copper braiding
PVC
green (similar RAL 6018)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Testing voltage | core/core: 1500 V core/screen: 1200 V |
| Min. bending radius | fixed laying: 5 x d |
| Temperature range | VDE fixed laying: -30/+70°C VDE flexible application: -5/+70°C |
| Oil resistance | |
| Characteristic impedance | 100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1) |
| Application | suitable for EtherCAT and EtherNET/IP applications |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
core/core: 1500 V
core/screen: 1200 V
fixed laying: 5 x d
VDE fixed laying: -30/+70°C
VDE flexible application: -5/+70°C
100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency
with reference to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)
suitable for EtherCAT and EtherNET/IP applications
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | max. core-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C acc. to VDE 0812 max. Ω/km | |
|---|---|---|---|---|---|---|---|
| L06782604 | 4 x 2 x 26 AWG | 1,1 mm | 6,2 mm | 33 kg/km | 48 kg/km | 150 | Send inquiry |
at 20°C acc. to VDE 0812
max. Ω/km
Other dimensions and colours are possible on request.
