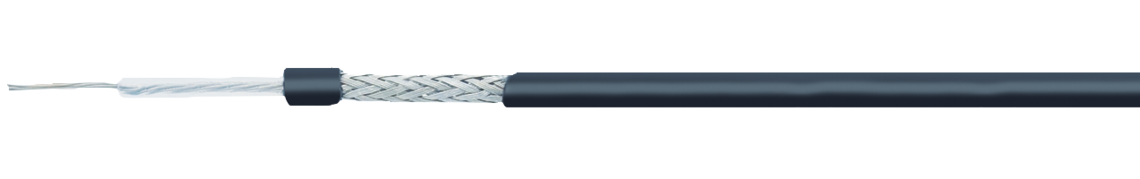

RG 179 FEP

FEP insulated coaxial cable with FEP sheath in reference to RG 179 (75 Ω )

Application

RG 179 FEP is a FEP-insulated coaxial cable with FEP jacket. Moreover, it has an excellent resistance against chemicals and solvents. Application is in high broadband transmission.

Outstanding features

  • excellent resistance against chemicals and solvents
  • excellent temperature resistance and flexibility at low temperatures
  • excellent electrical insulating characteristics with low, nearly frequency-independent dielectric characteristics

Construction

Conductor

silver-plated strands, fine wires (7 wires)

Insulation

FEP

Colour code

nature

Screen

silver-plated braiding

Sheath material

FEP

Sheath colour

black (RAL 9005)

Conductor

silver-plated strands, fine wires (7 wires)

Insulation

FEP

Colour code

nature

Screen

silver-plated braiding

Sheath material

FEP

Sheath colour

black (RAL 9005)

Technical data

Frequency range

max. 1 GHz

Peak operating voltage

900 V

Testing voltage

2000 V

Min. bending radius

7,5 x d

Intrinsic impedance

75 Ω +/- 5 Ω

Spreading velocity

approx. 69 %

Capacitance

max. 75 pF/m

Conductor resistance

max. 363 Ω/km

Attenuation at 20°C

50 MHz approx. 18 dB/100 m

100 MHz approx. 25 dB/100 m

400 MHz approx. 55 dB/100 m

900 MHz approx. 85 dB/100 m

1000 MHz approx. 90 dB/100 m

1800 MHz approx. 130 dB/100 m

3000 MHz approx. 175 dB/100 m

Regularity

50 MHz up to 400 MHz approx. 26 dB

400 MHz up to 1000 MHz approx. 24 dB

1000 MHz up to 3000 MHz approx. 20 dB

Temperature range

fixed laying: -90/+180°C

flexible application: -55/+180°C

Chem. resistance

very good against acids, halogens, bases, chlorinated solvents as well as organic and inorganic compounds

Absence of harmful substances

acc. to RoHS directive of the European Union

Frequency range

max. 1 GHz

Peak operating voltage

900 V

Testing voltage

2000 V

Min. bending radius

7,5 x d

Intrinsic impedance

75 Ω +/- 5 Ω

Spreading velocity

approx. 69 %

Capacitance

max. 75 pF/m

Conductor resistance

max. 363 Ω/km

Attenuation at 20°C

50 MHz approx. 18 dB/100 m

100 MHz approx. 25 dB/100 m

400 MHz approx. 55 dB/100 m

900 MHz approx. 85 dB/100 m

1000 MHz approx. 90 dB/100 m

1800 MHz approx. 130 dB/100 m

3000 MHz approx. 175 dB/100 m

Regularity

50 MHz up to 400 MHz approx. 26 dB

400 MHz up to 1000 MHz approx. 24 dB

1000 MHz up to 3000 MHz approx. 20 dB

Temperature range

fixed laying: -90/+180°C

flexible application: -55/+180°C

Chem. resistance

very good against acids, halogens, bases, chlorinated solvents as well as organic and inorganic compounds

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Nominal cross
section
nominal single
wire-ø
Outer-ø Copper figure Cable weight ≈
L362000621 x 0,055 mm²0,11 mm2,54 ± 0,12 mm9,5 kg/km16 kg/km Send inquiry
item no.
Nominal cross
section
nominal single
wire-ø
Outer-ø
Copper figure
Cable weight ≈
L36200062
1 x 0,055 mm²
0,11 mm
2,54 ± 0,12 mm
9,5 kg/km
16 kg/km

Other dimensions and colours are possible on request.
