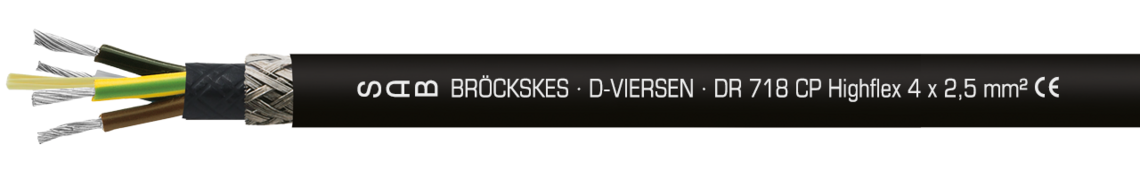

Reeling cable, 300/500 V with overall copper screen

bare copper strands acc. to IEC 60228, VDE 0295, class 5

special polymer

coloured acc. to HD 308 (VDE 0293 part 308); from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wire

specially adjusted layering around central suspension unit

PUR TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

tinned copper braiding

PUR TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

black (RAL 9005)

Uo/U 300/500 V

core/core 2000 V

core/screen 2000 V

acc. to DIN VDE 0298-4 see chapter N „Technical Data“

for laying and installation (fixed laying): 5 x d

for repeated winding action (flexible): 7,5 x d

guided on pulleys (flexible): 10 x d

fixed laying: -50/+90°C

flexible application: -40/+90°C

acc. to IEC 60754-1 + VDE 0482-754-1

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

good against acids, alkalines, solvents, hydraulic liquids, etc.

very good - enhanced due to black sheath colour

with reference to VDE 0298-3 section 7.1

the main mechanical characteristics fulfils by the PUR outer sheath are:

-high tensile strength

-high tear strength

-high abrasion resistance

-high notch resistance

acc. to RoHS directive of the European Union
