YK11Y-J
PUR connection cable with coloured cores, flexible at low temperatures

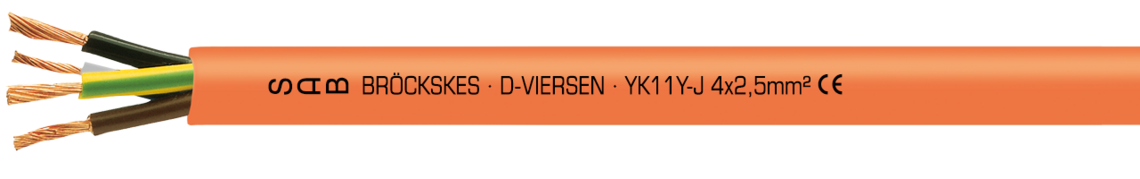

Marking for YK11Y-J 02660425: SAB BRÖCKSKES · D-VIERSEN · YK11Y-J 4 x 2,5 mm² CE
Application
YK11Y-J is a PUR connection cable with coloured cores and flexibility at low temperatures. It is recommended for use in electric appliance construction, electric tool construction, and in brick and cement works. It is made for partial outdoor use.
Outstanding features
- oil resistant
- abrasion resistant
- notch resistant
- good chemical resistance
- flexible at low temperatures
Construction
| Conductor | bare copper strands acc. to IEC 60228, VDE 0295, class 5 |
|---|---|
| Insulation | PVC, TI5 acc. to EN 50363-3 + VDE 0207-363-3, additional stabilized for low temperatures |
| Colour code | coloured acc. to HD 308 (VDE 0293-308); green-yellow earth wire from 3 cores |
| Stranding | in layers |
| Sheath material | PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Sheath colour | orange (RAL 2003) |
bare copper strands acc. to IEC 60228, VDE 0295, class 5
PVC, TI5 acc. to EN 50363-3 + VDE 0207-363-3,
additional stabilized for low temperatures
coloured acc. to HD 308 (VDE 0293-308); green-yellow earth wire from 3 cores
in layers
PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
orange (RAL 2003)
Technical data
| Nominal voltage | Uo/U 300/500 V |
|---|---|
| Testing voltage | core/core 2000 V |
| Min. bending radius | fixed laying: 4 x d flexible application: 6 x d |
| Radiation resistance | 5 x 10^7 cJ/kg |
| Temperature range | fixed laying: -40/+70°C flexible application: -20/+70°C |
| Oil resistance | very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Chem. resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Weather resistance | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 300/500 V
core/core 2000 V
fixed laying: 4 x d
flexible application: 6 x d
5 x 10^7 cJ/kg
fixed laying: -40/+70°C
flexible application: -20/+70°C
very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
good against acids, alkalines, solvents, hydraulic liquids etc.
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø | Copper figure | Cable weight ≈ | Outer-ø ± 5% | |
|---|---|---|---|---|---|---|
| L02660207 | 2 x 0,75 mm² | 0,21 mm | 14,4 kg/km | 48 kg/km | 6,5 mm | Send inquiry |
| L02660307 | 3 x 0,75 mm² | 0,21 mm | 21,6 kg/km | 59 kg/km | 6,8 mm | Send inquiry |
| L02660407 | 4 x 0,75 mm² | 0,21 mm | 28,8 kg/km | 72 kg/km | 7,4 mm | Send inquiry |
| L02660507 | 5 x 0,75 mm² | 0,21 mm | 36 kg/km | 89 kg/km | 8,3 mm | Send inquiry |
| L02660210 | 2 x 1,00 mm² | 0,21 mm | 19,2 kg/km | 54 kg/km | 6,7 mm | Send inquiry |
| L02660310 | 3 x 1,00 mm² | 0,21 mm | 28,8 kg/km | 67 kg/km | 7 mm | Send inquiry |
| L02660410 | 4 x 1,00 mm² | 0,21 mm | 38,4 kg/km | 85 kg/km | 7,8 mm | Send inquiry |
| L02660510 | 5 x 1,00 mm² | 0,21 mm | 48 kg/km | 103 kg/km | 8,6 mm | Send inquiry |
| L02660215 | 2 x 1,50 mm² | 0,26 mm | 28,8 kg/km | 75 kg/km | 7,7 mm | Send inquiry |
| L02660315 | 3 x 1,50 mm² | 0,26 mm | 43,2 kg/km | 95 kg/km | 8,3 mm | Send inquiry |
| L02660415 | 4 x 1,50 mm² | 0,26 mm | 57,6 kg/km | 119 kg/km | 9,2 mm | Send inquiry |
| L02660515 | 5 x 1,50 mm² | 0,26 mm | 72 kg/km | 148 kg/km | 10,3 mm | Send inquiry |
| L02660225 | 2 x 2,50 mm² | 0,26 mm | 48 kg/km | 113 kg/km | 9,3 mm | Send inquiry |
| L02660325 | 3 x 2,50 mm² | 0,26 mm | 72 kg/km | 146 kg/km | 10,2 mm | Send inquiry |
| L02660425 | 4 x 2,50 mm² | 0,26 mm | 96 kg/km | 177 kg/km | 10,8 mm | Send inquiry |
| L02660525 | 5 x 2,50 mm² | 0,26 mm | 120 kg/km | 219 kg/km | 12,1 mm | Send inquiry |
| L02660440 | 4 x 4,00 mm² | 0,31 mm | 153,6 kg/km | 310 kg/km | 14,5 mm | Send inquiry |
| L02660540 | 5 x 4,00 mm² | 0,31 mm | 192 kg/km | 371 kg/km | 15,7 mm | Send inquiry |
| L02660460 | 4 x 6,00 mm² | 0,31 mm | 230,4 kg/km | 403 kg/km | 15,7 mm | Send inquiry |
| L02660560 | 5 x 6,00 mm² | 0,31 mm | 288 kg/km | 484 kg/km | 17,1 mm | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
