SAB A 531 Rugged
rugged, flexible control cable for indoor and outdoor use

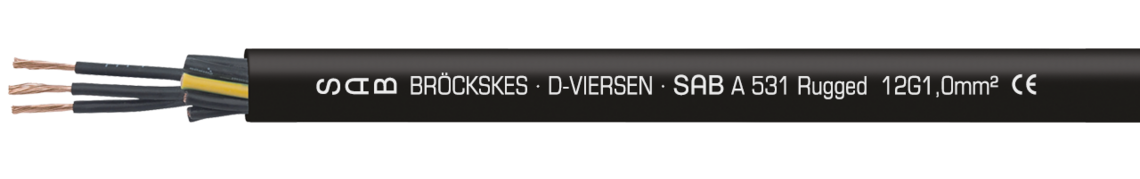

marking example: SAB BRÖCKSKES · D-VIERSEN · SAB A 531 Rugged 12G1,0mm² CE
Application
Outstanding features
- halogen-free
- flame retardant and self-extinguishing
- large temperature range
- very good abrasion resistance
- for indoor and outdoor use
- designed for unprotected outdoor installation under rough environmental conditions
Construction
| Conductor | bare copper strands acc. to IEC 60228, VDE 0295, class 5 |
|---|---|
| Insulation | SABIX® |
| Colour code | black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores |
| Sheath material | PUR |
| Sheath colour | black (RAL 9005) |
bare copper strands acc. to IEC 60228, VDE 0295, class 5
SABIX®
black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
PUR
black (RAL 9005)
Technical data
| Nominal voltage | Uo/U 300/500 V |
|---|---|
| Testing voltage | core/core 3000 V |
| Min. bending radius | fixed laying: 4 x d flexible application: 10 x d |
| Temperature range | fixed laying: -50/+90 °C flexible application: -40/+90 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flammhemmend und selbstverlöschend nach IEC 60332-1-2 + VDE 0482-332-1-2 |
| Oil resistance | sehr gut - TMPU nach EN 50363-10-2 + VDE 0207-363-10-2 |
| Chem. resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Hydrolysis and microbe resistance | sehr gut - nach EN 50363-10-2 + VDE 0207-363-10-2 |
| UV and weather resistance | very good acc. to HD 605 |
| Salt water resistance | very good acc. to UL 1309 |
| Ozone resistance | very good acc. to UL 1309 |
| Mechanical characteristics | The main mechanical characteristics accomplished by the PUR outer sheath are: - high tensile strength - high tear strength - high abrasion resistance - high notch resistance - high transverse stregth |
| Absence of harmful substances | gemäß RoHS-Richtlinie der Europäischen Union |
Uo/U 300/500 V
core/core 3000 V
fixed laying: 4 x d
flexible application: 10 x d
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
acc. to IEC 60754-1 + VDE 0482-754-1
flammhemmend und selbstverlöschend nach IEC 60332-1-2 + VDE 0482-332-1-2
sehr gut - TMPU nach EN 50363-10-2 + VDE 0207-363-10-2
good against acids, alkalines, solvents, hydraulic liquids etc.
sehr gut - nach EN 50363-10-2 + VDE 0207-363-10-2
very good acc. to HD 605
very good acc. to UL 1309
very good acc. to UL 1309
The main mechanical characteristics accomplished by the PUR outer sheath are:
- high tensile strength
- high tear strength
- high abrasion resistance
- high notch resistance
- high transverse stregth
gemäß RoHS-Richtlinie der Europäischen Union
Abmessungen
| item no. |
No. of cores x cross section |
Largest single wire-ø | Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L53101210 | 12 x 1,00 mm² | 0,21 mm | 10,7 mm | 115,2 kg/km | 170 kg/km | Send inquiry |
| L53100315 | 3 x 1,50 mm² | 0,26 mm | 6,8 mm | 43,2 kg/km | 73 kg/km | Send inquiry |
| L53100715 | 7 x 1,50 mm² | 0,26 mm | 9,0 mm | 100,8 kg/km | 142 kg/km | Send inquiry |
| L53100325 | 3 x 2,50 mm² | 0,26 mm | 8,3 mm | 72,0 kg/km | 114 kg/km | Send inquiry |
| L53100525 | 5 x 2,50 mm² | 0,26 mm | 10,1 mm | 120,0 kg/km | 173 kg/km | Send inquiry |
| L53100740 | 7 x 2,50 mm² | 0,26 mm | 11,2 mm | 168,0 kg/km | 229 kg/km | Send inquiry |
| L53100440 | 4 x 4,00 mm² | 0,31 mm | 11,1 mm | 153,6 kg/km | 220 kg/km | Send inquiry |
cross section
wire-ø
Weitere Abmessungen und Farben auf Anfrage.
