H05VVC4V5-K

PVC control cable with numbered cores, inner sheath and overall copper screen

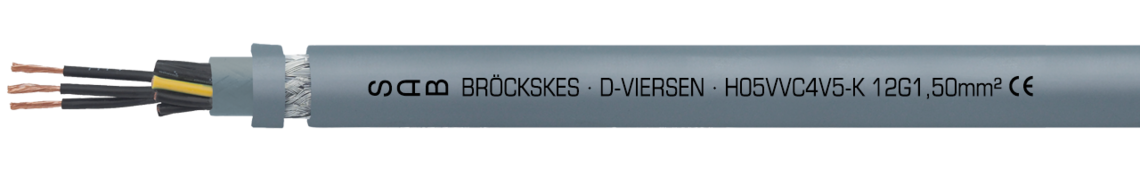

Marking for H05VVC4V5-K 02551215: SAB BRÖCKSKES · D-VIERSEN · H05VVC4V5-K 12 G 1,50 mm² CE

Download data sheet for H05VVC4V5-K

Questions about our products?

Application

H05VVC4V5-K is a PVC control cable with numbered cores, inner sheath, and overall copper screen. It is recommended for use in machine tool and packaging machine construction, material handling and automation technologies, car manufacturing industry, and CNC-machines.

Outstanding features

good EMV characteristics
flexible
oil resistant
VDE resp. HAR standardized

Construction

Conductor	bare copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
Colour code	black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Stranding	in layers
Inner sheath	PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1
Screen	tinned copper braiding
Sheath material	PVC, TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1
Sheath colour	grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Inner sheath

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Screen

tinned copper braiding

Sheath material

PVC, TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage	Uo/U 300/500 V
Testing voltage	Ader/Ader 3000 V Ader/Schirm 2000 V
Min. bending radius	fixed laying: 5 x d flexible application: 10 x d
Radiation resistance	8 x 10^7 cJ/kg
Temperature range	fixed laying: -40/+70 °C flexible application: +5/+70°C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Oil resistance	very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1
Chem. resistance	see "Technical Data" - Chemical resistance
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

Ader/Ader 3000 V

Ader/Schirm 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70 °C

flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Copper figure	Cable weight ≈	Outer-ø ± 5%
L02550305	3 x 0,50 mm²	0,21 mm	47,3 kg/km	115 kg/km	8,8 mm	Send inquiry
L02550405	4 x 0,50 mm²	0,21 mm	54,4 kg/km	130 kg/km	9,4 mm	Send inquiry
L02550505	5 x 0,50 mm²	0,21 mm	67,2 kg/km	157 kg/km	10,2 mm	Send inquiry
L02550705	7 x 0,50 mm²	0,21 mm	78,1 kg/km	199 kg/km	11,7 mm	Send inquiry
L02551205	12 x 0,50 mm²	0,21 mm	116,2 kg/km	280 kg/km	14,1 mm	Send inquiry
L02551805	18 x 0,50 mm²	0,21 mm	148,2 kg/km	376 kg/km	16,4 mm	Send inquiry
L02552505	25 x 0,50 mm²	0,21 mm	220,7 kg/km	516 kg/km	19,6 mm	Send inquiry
L02553205	32 x 0,50 mm²	0,21 mm	269,0 kg/km	617 kg/km	21,0 mm	Send inquiry
L02553405	34 x 0,50 mm²	0,21 mm	280,6 kg/km	648 kg/km	21,7 mm	Send inquiry
L02554205	42 x 0,50 mm²	0,21 mm	322,7 kg/km	756 kg/km	23,1 mm	Send inquiry
L02555005	50 x 0,50 mm²	0,21 mm	376,8 kg/km	882 kg/km	25,5 mm	Send inquiry
L02556005	60 x 0,50 mm²	0,21 mm	429,2 kg/km	999 kg/km	26,8 mm	Send inquiry
L02550307	3 x 0,75 mm²	0,21 mm	57,0 kg/km	134 kg/km	9,5 mm	Send inquiry
L02550407	4 x 0,75 mm²	0,21 mm	72,0 kg/km	163 kg/km	10,5 mm	Send inquiry
L02550507	5 x 0,75 mm²	0,21 mm	80,0 kg/km	184 kg/km	11,0 mm	Send inquiry
L02550707	7 x 0,75 mm²	0,21 mm	99,9 kg/km	246 kg/km	12,9 mm	Send inquiry
L02551207	12 x 0,75 mm²	0,21 mm	147,1 kg/km	344 kg/km	15,6 mm	Send inquiry
L02551807	18 x 0,75 mm²	0,21 mm	221,6 kg/km	488 kg/km	18,3 mm	Send inquiry
L02552507	25 x 0,75 mm²	0,21 mm	299,3 kg/km	669 kg/km	22,5 mm	Send inquiry
L02553207	32 x 0,75 mm²	0,21 mm	351,8 kg/km	765 kg/km	23,2 mm	Send inquiry
L02553407	34 x 0,75 mm²	0,21 mm	368,8 kg/km	816 kg/km	24,2 mm	Send inquiry
L02554207	42 x 0,75 mm²	0,21 mm	440,9 kg/km	977 kg/km	26,0 mm	Send inquiry
L02555007	50 x 0,75 mm²	0,21 mm	518,7 kg/km	1125 kg/km	28,4 mm	Send inquiry
L02556007	60 x 0,75 mm²	0,21 mm	596,5 kg/km	1295 kg/km	30,1 mm	Send inquiry
L02550310	3 x 1,00 mm²	0,21 mm	64,5 kg/km	149 kg/km	9,9 mm	Send inquiry
L02550410	4 x 1,00 mm²	0,21 mm	81,8 kg/km	174 kg/km	10,5 mm	Send inquiry
L02550510	5 x 1,00 mm²	0,21 mm	92,3 kg/km	202 kg/km	11,5 mm	Send inquiry
L02550710	7 x 1,00 mm²	0,21 mm	117,6 kg/km	265 kg/km	13,4 mm	Send inquiry
L02551210	12 x 1,00 mm²	0,21 mm	176,6 kg/km	377 kg/km	16,0 mm	Send inquiry
L02551810	18 x 1,00 mm²	0,21 mm	272,5 kg/km	551 kg/km	19,0 mm	Send inquiry
L02552510	25 x 1,00 mm²	0,21 mm	359,3 kg/km	725 kg/km	22,5 mm	Send inquiry
L02553210	32 x 1,00 mm²	0,21 mm	430,8 kg/km	862 kg/km	24,1 mm	Send inquiry
L02553410	34 x 1,00 mm²	0,21 mm	462,5 kg/km	938 kg/km	25,3 mm	Send inquiry
L02554210	42 x 1,00 mm²	0,21 mm	544,4 kg/km	1104 kg/km	27,0 mm	Send inquiry
L02555010	50 x 1,00 mm²	0,21 mm	641,8 kg/km	1271 kg/km	29,4 mm	Send inquiry
L02556010	60 x 1,00 mm²	0,21 mm	744,9 kg/km	1468 kg/km	31,2 mm	Send inquiry
L02550315	3 x 1,50 mm²	0,26 mm	87,2 kg/km	188 kg/km	11,0 mm	Send inquiry
L02550415	4 x 1,50 mm²	0,26 mm	102,3 kg/km	220 kg/km	11,9 mm	Send inquiry
L02550515	5 x 1,50 mm²	0,26 mm	122,0 kg/km	270 kg/km	13,2 mm	Send inquiry
L02550715	7 x 1,50 mm²	0,26 mm	161,4 kg/km	357 kg/km	15,3 mm	Send inquiry
L02551215	12 x 1,50 mm²	0,26 mm	272,3 kg/km	536 kg/km	18,9 mm	Send inquiry
L02551815	18 x 1,50 mm²	0,26 mm	377,2 kg/km	736 kg/km	21,9 mm	Send inquiry
L02552515	25 x 1,50 mm²	0,26 mm	499,2 kg/km	985 kg/km	26,2 mm	Send inquiry
L02553215	32 x 1,50 mm²	0,26 mm	618,7 kg/km	1199 kg/km	28,2 mm	Send inquiry
L02553415	34 x 1,50 mm²	0,26 mm	651,4 kg/km	1278 kg/km	29,4 mm	Send inquiry
L02554215	42 x 1,50 mm²	0,26 mm	774,5 kg/km	1513 kg/km	31,4 mm	Send inquiry
L02555015	50 x 1,50 mm²	0,26 mm	899,6 kg/km	1704 kg/km	33,8 mm	Send inquiry
L02556015	60 x 1,50 mm²	0,26 mm	1067,3 kg/km	1973 kg/km	35,7 mm	Send inquiry
L02550325	3 x 2,50 mm²	0,26 mm	180,9 kg/km	249 kg/km	12,6 mm	Send inquiry
L02550425	4 x 2,50 mm²	0,26 mm	154,4 kg/km	308 kg/km	13,8 mm	Send inquiry
L02550525	5 x 2,50 mm²	0,26 mm	180,2 kg/km	367 kg/km	15,1 mm	Send inquiry
L02550725	7 x 2,50 mm²	0,26 mm	259,2 kg/km	509 kg/km	17,8 mm	Send inquiry
L02551225	12 x 2,50 mm²	0,26 mm	405,4 kg/km	741 kg/km	21,7 mm	Send inquiry
L02551825	18 x 2,50 mm²	0,26 mm	569,5 kg/km	1049 kg/km	25,7 mm	Send inquiry
L02552525	25 x 2,50 mm²	0,26 mm	765,7 kg/km	1381 kg/km	30,4 mm	Send inquiry
L02553225	32 x 2,50 mm²	0,26 mm	943,0 kg/km	1667 kg/km	32,7 mm	Send inquiry
L02553425	34 x 2,50 mm²	0,26 mm	995,6 kg/km	1759 kg/km	33,8 mm	Send inquiry
L02554225	42 x 2,50 mm²	0,26 mm	1213,1 kg/km	2112 kg/km	36,1 mm	Send inquiry
