CC 600 World

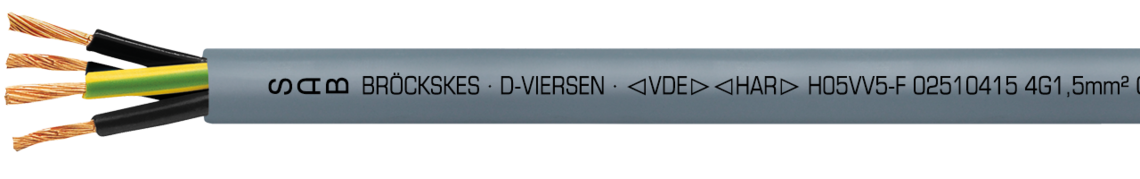

PVC control cable with numbered cores acc. to HAR/UL/CSA/VD

Marking for CC 600 World 02511805: SAB BRÖCKSKES · D-VIERSEN · <VDE> <HAR> H05VV5-F 02511805 18G0,5 mm² CC 600 World 20 AWG/18c 02512018 UL AWM Style 21216 90°C Oil 60°C 600V CSA AWM I/II A/B 90°C F 600V FT1 FT2 CE

Marking for CC 600 World 02511805: SAB BRÖCKSKES · D-VIERSEN · <VDE> <HAR> H05VV5-F 02511805 18G0,5 mm² CC 600 World 20 AWG/18c 02512018 UL AWM Style 21216 90°C Oil 60°C 600V CSA AWM I/II A/B 90°C F 600V FT1 FT2 CE

Application

CC 600 World is a PVC control cable with numbered cores, high flexibility, and it is VDE resp. HAR, UL, and CSA standardized. Additionally, it is oil resistant and flexible. This cable is recommended for use in machine tool and packaging machine construction, material handling and automation technologies, car manufacturing industry, CNC-machines.

Outstanding features

  • flexible
  • oil resistant
  • VDE resp. HAR, UL and CSA standardized

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

PVC, TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

PVC, TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

DIN VDE: Uo/U 300/500 V

UL/CSA: 600 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA fixed laying: up to +90°C

UL/CSA flexible application: up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1, CSA FT1, FT2

Oil resistance

very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

DIN VDE: Uo/U 300/500 V

UL/CSA: 600 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA fixed laying: up to +90°C

UL/CSA flexible application: up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1, CSA FT1, FT2

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Cross section Copper figure Cable weight ≈ Outer-ø ± 5%
L025103053 x 0,50 mm²20 AWG15,4 kg/km60 kg/km6,5 mm Send inquiry
L025104054 x 0,50 mm²20 AWG20,5 kg/km74 kg/km7,2 mm Send inquiry
L025105055 x 0,50 mm²20 AWG25,6 kg/km91 kg/km7,9 mm Send inquiry
L025107057 x 0,50 mm²20 AWG35,9 kg/km129 kg/km9,5 mm Send inquiry
L0251120512 x 0,50 mm²20 AWG61,5 kg/km182 kg/km11,5 mm Send inquiry
L0251180518 x 0,50 mm²20 AWG92,3 kg/km269 kg/km13,8 mm Send inquiry
L025103073 x 0,75 mm²19 AWG21,6 kg/km73 kg/km7,1 mm Send inquiry
L025104074 x 0,75 mm²19 AWG28,8 kg/km90 kg/km7,9 mm Send inquiry
L025105075 x 0,75 mm²19 AWG36 kg/km97 kg/km8 mm Send inquiry
L025107077 x 0,75 mm²19 AWG50,4 kg/km157 kg/km10,4 mm Send inquiry
L0251120712 x 0,75 mm²19 AWG86,4 kg/km229 kg/km12,9 mm Send inquiry
L0251180718 x 0,75 mm²19 AWG129,6 kg/km333 kg/km15,3 mm Send inquiry
L025103103 x 1,00 mm²18 AWG28,8 kg/km83 kg/km7,4 mm Send inquiry
L025104104 x 1,00 mm²18 AWG38,4 kg/km101 kg/km8,1 mm Send inquiry
L025105105 x 1,00 mm²18 AWG48 kg/km128 kg/km9,1 mm Send inquiry
L025107107 x 1,00 mm²18 AWG67,2 kg/km179 kg/km10,8 mm Send inquiry
L0251121012 x 1,00 mm²18 AWG115,2 kg/km261 kg/km13,3 mm Send inquiry
L0251181018 x 1,00 mm²18 AWG172,8 kg/km384 kg/km15,9 mm Send inquiry
L025103153 x 1,50 mm²16 AWG43,2 kg/km112 kg/km8,4 mm Send inquiry
L025104154 x 1,50 mm²16 AWG57,6 kg/km141 kg/km9,5 mm Send inquiry
L025105155 x 1,50 mm²16 AWG72 kg/km177 kg/km10,6 mm Send inquiry
L025107157 x 1,50 mm²16 AWG100,8 kg/km252 kg/km12,8 mm Send inquiry
L0251121512 x 1,50 mm²16 AWG172,8 kg/km368 kg/km15,7 mm Send inquiry
L0251181518 x 1,50 mm²16 AWG259,2 kg/km541 kg/km18,8 mm Send inquiry
L025103253 x 2,50 mm²14 AWG72 kg/km166 kg/km10,1 mm Send inquiry
L025104254 x 2,50 mm²14 AWG96 kg/km209 kg/km11,3 mm Send inquiry
L025105255 x 2,50 mm²14 AWG120 kg/km258 kg/km12,5 mm Send inquiry
L025107257 x 2,50 mm²14 AWG168 kg/km367 kg/km15 mm Send inquiry
L0251122512 x 2,50 mm²14 AWG288 kg/km546 kg/km18,6 mm Send inquiry
L0251182518 x 2,50 mm²14 AWG432 kg/km821 kg/km22,6 mm Send inquiry
item no.
No. of cores x
cross section
Cross section
Copper figure
Cable weight ≈
Outer-ø ± 5%
L02510305
3 x 0,50 mm²
20 AWG
15,4 kg/km
60 kg/km
6,5 mm
L02510405
4 x 0,50 mm²
20 AWG
20,5 kg/km
74 kg/km
7,2 mm
L02510505
5 x 0,50 mm²
20 AWG
25,6 kg/km
91 kg/km
7,9 mm
L02510705
7 x 0,50 mm²
20 AWG
35,9 kg/km
129 kg/km
9,5 mm
L02511205
12 x 0,50 mm²
20 AWG
61,5 kg/km
182 kg/km
11,5 mm
L02511805
18 x 0,50 mm²
20 AWG
92,3 kg/km
269 kg/km
13,8 mm
L02510307
3 x 0,75 mm²
19 AWG
21,6 kg/km
73 kg/km
7,1 mm
L02510407
4 x 0,75 mm²
19 AWG
28,8 kg/km
90 kg/km
7,9 mm
L02510507
5 x 0,75 mm²
19 AWG
36 kg/km
97 kg/km
8 mm
L02510707
7 x 0,75 mm²
19 AWG
50,4 kg/km
157 kg/km
10,4 mm
L02511207
12 x 0,75 mm²
19 AWG
86,4 kg/km
229 kg/km
12,9 mm
L02511807
18 x 0,75 mm²
19 AWG
129,6 kg/km
333 kg/km
15,3 mm
L02510310
3 x 1,00 mm²
18 AWG
28,8 kg/km
83 kg/km
7,4 mm
L02510410
4 x 1,00 mm²
18 AWG
38,4 kg/km
101 kg/km
8,1 mm
L02510510
5 x 1,00 mm²
18 AWG
48 kg/km
128 kg/km
9,1 mm
L02510710
7 x 1,00 mm²
18 AWG
67,2 kg/km
179 kg/km
10,8 mm
L02511210
12 x 1,00 mm²
18 AWG
115,2 kg/km
261 kg/km
13,3 mm
L02511810
18 x 1,00 mm²
18 AWG
172,8 kg/km
384 kg/km
15,9 mm
L02510315
3 x 1,50 mm²
16 AWG
43,2 kg/km
112 kg/km
8,4 mm
L02510415
4 x 1,50 mm²
16 AWG
57,6 kg/km
141 kg/km
9,5 mm
L02510515
5 x 1,50 mm²
16 AWG
72 kg/km
177 kg/km
10,6 mm
L02510715
7 x 1,50 mm²
16 AWG
100,8 kg/km
252 kg/km
12,8 mm
L02511215
12 x 1,50 mm²
16 AWG
172,8 kg/km
368 kg/km
15,7 mm
L02511815
18 x 1,50 mm²
16 AWG
259,2 kg/km
541 kg/km
18,8 mm
L02510325
3 x 2,50 mm²
14 AWG
72 kg/km
166 kg/km
10,1 mm
L02510425
4 x 2,50 mm²
14 AWG
96 kg/km
209 kg/km
11,3 mm
L02510525
5 x 2,50 mm²
14 AWG
120 kg/km
258 kg/km
12,5 mm
L02510725
7 x 2,50 mm²
14 AWG
168 kg/km
367 kg/km
15 mm
L02511225
12 x 2,50 mm²
14 AWG
288 kg/km
546 kg/km
18,6 mm
L02511825
18 x 2,50 mm²
14 AWG
432 kg/km
821 kg/km
22,6 mm

Other dimensions and colours are possible on request.
