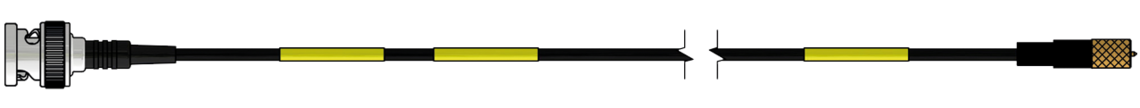

Sensor Charge Cable
with Microdot male connector 10-32 and BNC male connector
Application
For the connection of an uniaxial acceleration sensor with charge outlet (Charge).
Additional information
Further service aspects:
Individual marking by shrinkable sleeve as for example material number or barcode
Connector
| side 1 | BNC male connector |
|---|---|
| side 2 | Mircodot male connector 10-32 UNF |
side 1
BNC male connector
side 2
Mircodot male connector 10-32 UNF
Cable data
| construction | 1 x 0,20 mm Ø |
|---|---|
| insulation | TPFK |
| outer sheath | TPFK |
| sheath colour | black |
| outer diameter | approx. 1,7 mm |
| operating voltage | max. 375 V |
| temperature range | -55°C / +250°C |
| special characteristics | chargeable resistant to high temperature |
construction
1 x 0,20 mm Ø
insulation
TPFK
outer sheath
TPFK
sheath colour
black
outer diameter
approx. 1,7 mm
operating voltage
max. 375 V
temperature range
-55°C / +250°C
special characteristics
chargeable
resistant to high temperature
Configuration examples
| item no. | Sheath material | length "L" [mm] | |
|---|---|---|---|
| S3021-3032-00100 | TPFK | 1000 mm | Send inquiry |
item no.
Sheath material
length "L" [mm]
SAB identification: item number, batch number
