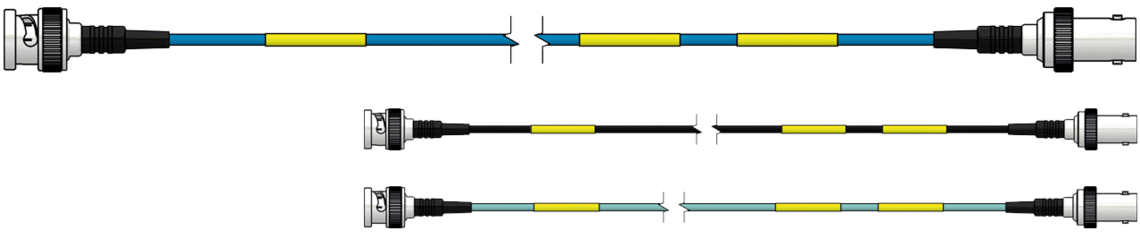

Low noise coax cable
with BNC male and female connector
Application
For example for the connection of an uniaxial acceleration sensor (IEPE).
Outstanding features
- resistant to high temperatures up to +250°C (TPFK)
- mechanically more robust (PUR)
- highest flexibility (Silicone)
Additional information
Further service aspects:
Individual marking by shrinkable sleeve as for example material number or barcode.

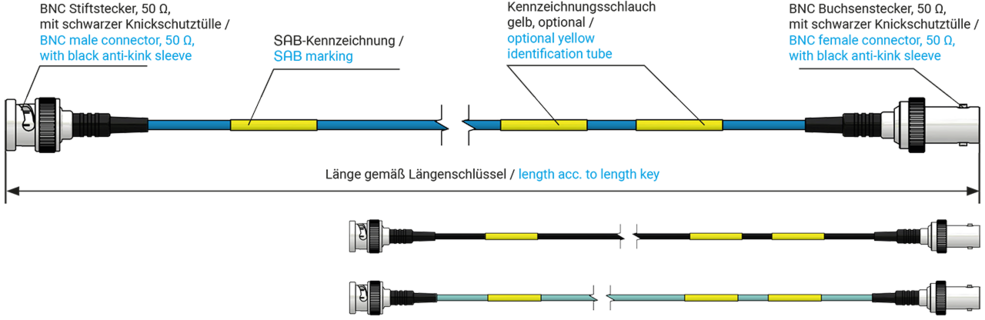

Connector
| side 1 | BNC male connector |
|---|---|
| side 2 | BNC female connector |
side 1
BNC male connector
side 2
BNC female connector
Cable data (TPFK)
| construction | 1 x 0,20 mm Ø |
|---|---|
| insulation | TPFK |
| outer sheath | TPFK |
| sheath colour | blue |
| outer diameter | approx. 1,7 mm |
| operating voltage | max. 375 V |
| temperature range | -55°C / +250°C |
construction
1 x 0,20 mm Ø
insulation
TPFK
outer sheath
TPFK
sheath colour
blue
outer diameter
approx. 1,7 mm
operating voltage
max. 375 V
temperature range
-55°C / +250°C
Cable data (PUR)
| construction | 1 x 0,20 mm Ø |
|---|---|
| insulation | TPFK |
| outer sheath | PUR |
| sheath colour | black |
| outer diameter | approx. 2,1 mm |
| operating voltage | max. 350 V |
| temperature range | -40°C / +90°C (125°C 2500h) |
construction
1 x 0,20 mm Ø
insulation
TPFK
outer sheath
PUR
sheath colour
black
outer diameter
approx. 2,1 mm
operating voltage
max. 350 V
temperature range
-40°C / +90°C (125°C 2500h)
Cable data (Silicone)
| construction | 1 x 0,20 mm Ø |
|---|---|
| insulation | TPFK |
| outer sheath | Silicone |
| sheath colour | turquoise |
| outer diameter | approx. 2,1 mm |
| operating voltage | max. 350 V |
| temperature range | -25°C / +180°C |
construction
1 x 0,20 mm Ø
insulation
TPFK
outer sheath
Silicone
sheath colour
turquoise
outer diameter
approx. 2,1 mm
operating voltage
max. 350 V
temperature range
-25°C / +180°C
Configuration examples
| item no. | Sheath material | length "L" [mm] | |
|---|---|---|---|
| S3011-3031-00100 | TPFK | 1000 mm | Send inquiry |
| S3012-3031-00100 | PUR | 1000 mm | Send inquiry |
| S3013-3031-00100 | Silicone | 1000 mm | Send inquiry |
item no.
Sheath material
length "L" [mm]
SAB identification: item number, batch number
