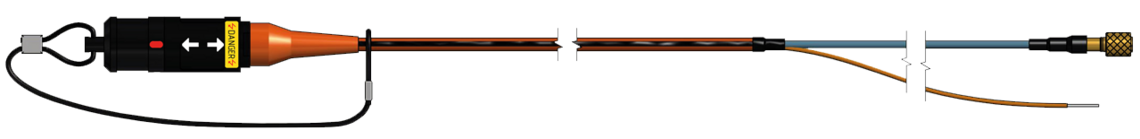

HV connection cable

4-pole ¼ -28 UNF female connectorand Lemo Redel connector

Application

HV acceleration measurement together with CSM HV IEPE FL 100 measuring module

Outstanding features

  • scoop-proof*

*please not the marked scoop-proof area!

Additional information

  • You can find more HV sensors in our HV brochure “E-Mobility High-voltage measurement technology
  • issue of HV test certificate with batch number for gapless traceability!
  • optional: test + repair of already used sensors on request.

Connector

Connector

Lemo Redel male connector with orange kink predection sleeve and black predecting cap, 8 pole, C coded

1000 V AC tension proof – IP 67 plugged

Connector

Lemo Redel male connector with orange kink predection sleeve and black predecting cap, 8 pole, C coded

1000 V AC tension proof – IP 67 plugged

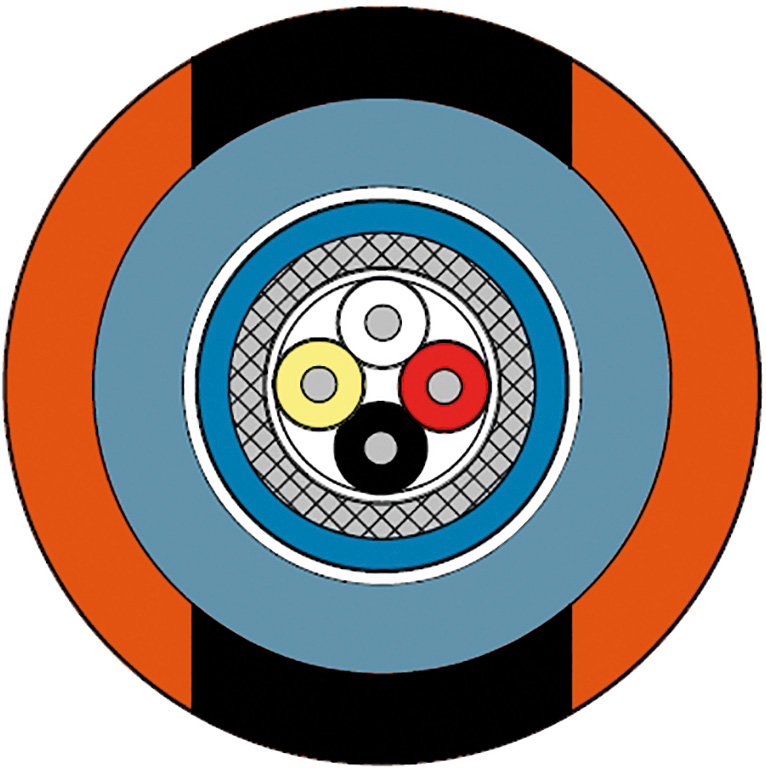

Cable data

Connection cable

HV IEPE sensor cable

core insulation

PFA – red, white, black, yellow

bundle sheath

PFA – blue acc. to RAL 5015

inner sheath

PUR – blue acc. to RAL 5024

outer sheath

PUR

sheath colour

orange with black longitudinal stripes

stranding

optimised in layers

outer diameter

approx. 4,3 mm

dialectric strength

1000 V AC over second inner sheath

temperature range

fixed laying: -50/+150 °C

flexible application: -40/+150 °C

Connection cable

HV IEPE sensor cable

core insulation

PFA – red, white, black, yellow

bundle sheath

PFA – blue acc. to RAL 5015

inner sheath

PUR – blue acc. to RAL 5024

outer sheath

PUR

sheath colour

orange with black longitudinal stripes

stranding

optimised in layers

outer diameter

approx. 4,3 mm

dialectric strength

1000 V AC over second inner sheath

temperature range

fixed laying: -50/+150 °C

flexible application: -40/+150 °C

Sensor connection side

male connector

4-pin ¼ -28 UNF for the connection to an triaxial IEPE acceleration sensor

(also with 4-pin 8-36 UNF and 4-pin M4,5)

screen

bundle led out and insulated with shrinkable sleeve

temperature range

bundle channel: -55°C / +250°C

male connector

4-pin ¼ -28 UNF for the connection to an triaxial IEPE acceleration sensor

(also with 4-pin 8-36 UNF and 4-pin M4,5)

screen

bundle led out and insulated with shrinkable sleeve

temperature range

bundle channel: -55°C / +250°C

Tests

Cable test

via single channel in water bath – 5000 V

AC – 5 min – with reference to EN 50264-2-1

Sensor test

routine test of harnessed connector with reference to the new standard for measuring devices 61010-1 as well as VDE indications in our in-house ball bath (testing equipment has been released by VDE). Control of safety to touch towards outside – 3000 V/1 min. AC

Cable test

via single channel in water bath – 5000 V

AC – 5 min – with reference to EN 50264-2-1

Sensor test

routine test of harnessed connector with reference to the new standard for measuring devices 61010-1 as well as VDE indications in our in-house ball bath (testing equipment has been released by VDE). Control of safety to touch towards outside – 3000 V/1 min. AC

Configuration examples

item no. Connection cable length Einzelkanal-Länge Connector
T642-062-6663000 mmchannel 1:100 mm / ground:200 mm4-Pin ¼ -28 UNF Send inquiry
T642-062-7946000 mmchannel 1:100 mm / ground:200 mm4-Pin ¼ -28 UNF Send inquiry
T642-062-6353000 mmchannel 1:100 mm / ground:200 mm4-Pin 8-36 UNF Send inquiry
item no.
Connection cable length
Einzelkanal-Länge
Connector
T642-062-666
3000 mm
channel 1:100 mm / ground:200 mm
4-Pin ¼ -28 UNF
T642-062-794
6000 mm
channel 1:100 mm / ground:200 mm
4-Pin ¼ -28 UNF
T642-062-635
3000 mm
channel 1:100 mm / ground:200 mm
4-Pin 8-36 UNF

total and channel length can be led out individually.
