Extension cable

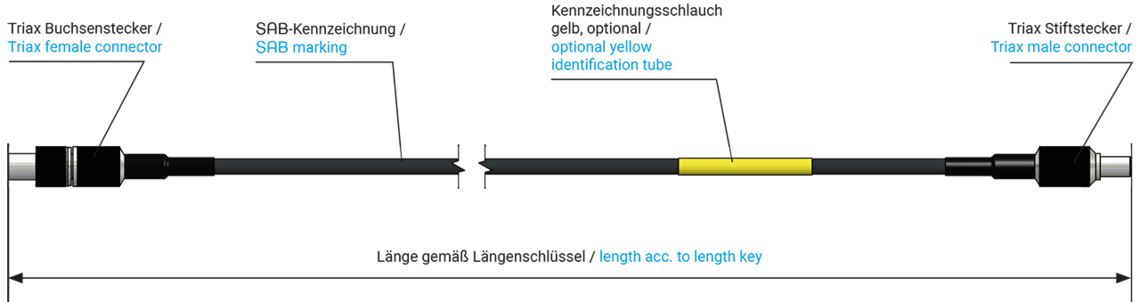

with Triax male and female connector on both sides (engine indexing)
Application
extension cable for the connection of Piezo pressure sensors at the charge amplifier for engine indexing
Additional information
Further service aspects:
Individual marking by shrinkable sleeve as for example internal material number or barcode
Connector
| side 1 | Triax female connector |
|---|---|
| side 2 | Triax male connector |
side 1
Triax female connector
side 2
Triax male connector
Cable data
| construction | 1 x 0,055 mm² |
|---|---|
| insulation | TPFK |
| inner sheath | TPFK |
| outer sheath | PUR |
| sheath colour | black |
| outer diameter | approx. 3,4 mm |
| operating voltage | max. 350 V |
| temperature range | -55°C / +90°C (+125°C) |
| special characterstics | double screening |
construction
1 x 0,055 mm²
insulation
TPFK
inner sheath
TPFK
outer sheath
PUR
sheath colour
black
outer diameter
approx. 3,4 mm
operating voltage
max. 350 V
temperature range
-55°C / +90°C (+125°C)
special characterstics
double screening
Configuration example
| item no. | Sheath material | length "L" [mm] | |
|---|---|---|---|
| S3600-4100-00100 | PUR | 1000 mm | Send inquiry |
item no.
Sheath material
length "L" [mm]
SAB identification: item number, batch number
