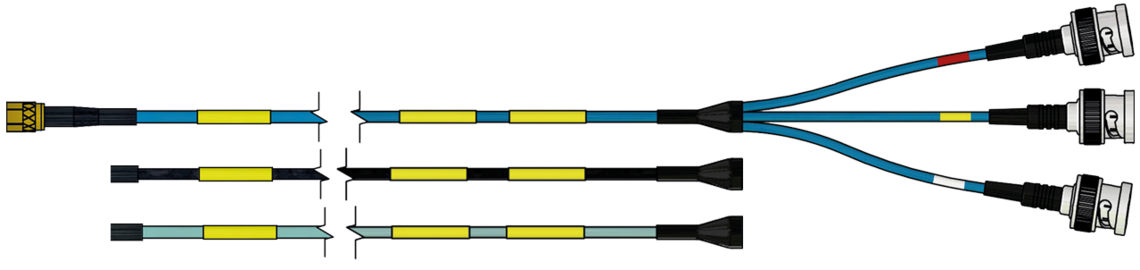

Connection cable
with waterproof female connector ¼-28 UNF IP68, 4-pole and 3 x BNC male connector
Application
connection cable with waterproof sensor connector IP 68 for triaxial acceleration sensors on IEPE Basis
Outstanding features
- resistant to high temperatures (TPFP)
- mechanically more robust (PUR)
- highest flexibility (Silicone)
Additional information
Further service aspects:
Individual marking by shrinkable sleeve as for example material number or barcode
Connector
| side 1 | 4-pin ¼-28 UNF IP68 female connector* * please indicate your sensor type! |
|---|---|
| side 2 | 3 x BNC male connector |
4-pin ¼-28 UNF
IP68 female connector*
* please indicate your sensor type!
3 x BNC male connector
Cable data (TPFP)
| construction | 4 x AWG 34 |
|---|---|
| insulation | TPFP |
| outer sheath | TPFP |
| sheath colour | blue |
| outer diameter | approx. 2,1 mm |
| operating voltage | max. 150 V |
| temperature range | -55°C / +250°C |
4 x AWG 34
TPFP
TPFP
blue
approx. 2,1 mm
max. 150 V
-55°C / +250°C
Cable data (PUR)
| construction | 4 x AWG 34 |
|---|---|
| insulation | TPFP |
| outer sheath | PUR |
| sheath colour | black |
| outer diameter | approx. 2,5 mm |
| operating voltage | max. 150 V |
| temperature range | -40°C / +90°C (+125°C 2500h) |
4 x AWG 34
TPFP
PUR
black
approx. 2,5 mm
max. 150 V
-40°C / +90°C (+125°C 2500h)
Cable data (Silicone)
| construction | 4 x AWG 30 |
|---|---|
| insulation | TPFP |
| outer sheath | Silicone |
| sheath colour | turquoise |
| outer diameter | approx. 2,7 mm |
| operating voltage | max. 150 V |
| temperature range | -25°C / +180°C |
4 x AWG 30
TPFP
Silicone
turquoise
approx. 2,7 mm
max. 150 V
-25°C / +180°C
Configuration examples
| item no. | Sheath material | length "L" [mm] | |
|---|---|---|---|
| S3031-1430-00300 | TPFP | 3000 | Send inquiry |
| S3032-1430-00300 | PUR | 3000 | Send inquiry |
| S3033-1430-00300 | Silicone | 3000 | Send inquiry |
SAB identification: item number, batch number
