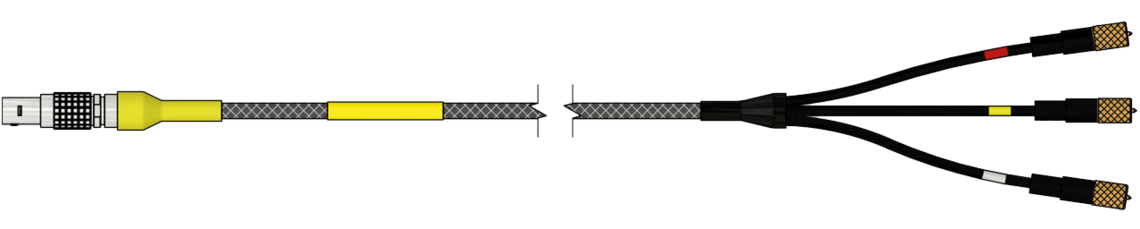

Connection cable

Lemo male connector 9-pin, G coded and 3x Microdot male connector 10-32

Application

Sensor connection cable for triaxial acceleration sensors with charge output and connection to e.g. Müller BBM PAK Messtechnik

Outstanding features

  • low-noise
  • chargeable
  • resistant to high temperatures up to +250°C

Additional information

Further service aspects:

Individual marking by shrinkable sleeve as for example material number or barcode

Connector

side 1

Lemo male connector 9-pin, G coded

side 2

3x Microdot male connector 10-32 UNF

side 1

Lemo male connector 9-pin, G coded

side 2

3x Microdot male connector 10-32 UNF

Cable data

construction

3x (1 x 0,20 mm Ø) braiding tubee

insulation

TPFK

outer sheath

TPFK

sheath colour

black

outer diameter

approx. 1,7 mm

operating voltage

max. 48 V

temperature range

-55°C / +250°C

construction

3x (1 x 0,20 mm Ø) braiding tubee

insulation

TPFK

outer sheath

TPFK

sheath colour

black

outer diameter

approx. 1,7 mm

operating voltage

max. 48 V

temperature range

-55°C / +250°C

Configuration example

item no. Sheath material length "L" [mm]
S3041-4032-00100TPFK1000 mm Send inquiry
item no.
Sheath material
length "L" [mm]
S3041-4032-00100
TPFK
1000 mm

SAB identification: item number, batch number
