Connection cable

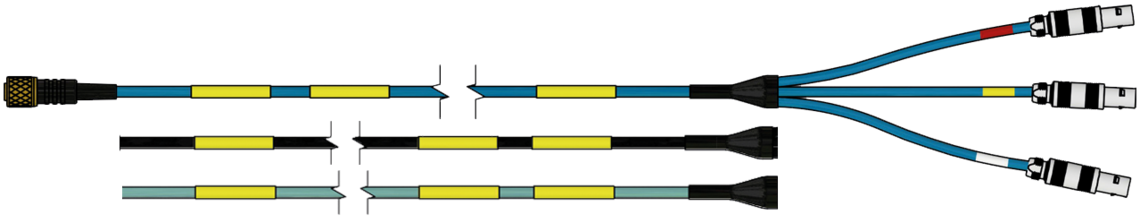

female connector 4-pole ¼- 28 and 3x Lemo coax male connector 00

Application

sensor cable for triaxial acceleration sensors (IEPE) and the connection of e.g. Siemens LMS SCADAS measuring technique

Outstanding features

  • resistant to high temperatures up to +250°C (TPFK)
  • mechanically more robust (PUR)
  • highest flexibility (Silicone)

Additional information

Further service aspects:

Individual marking by shrinkable sleeve as for example material number or barcode

Connector

side 1

female connector 4-pin ¼- 28*

*please indicate your sensor type!

side 2

3x Lemo coax male connector A coded

side 1

female connector 4-pin ¼- 28*

*please indicate your sensor type!

side 2

3x Lemo coax male connector A coded

Cable data (TPFK)

construction

4 x AWG 34

insulation

TPFK

outer sheath

TPFK

sheath colour

blue

outer diameter

approx. 2,1 mm

operating voltage

max. 150 V

temperature range

-55°C / +250°C

construction

4 x AWG 34

insulation

TPFK

outer sheath

TPFK

sheath colour

blue

outer diameter

approx. 2,1 mm

operating voltage

max. 150 V

temperature range

-55°C / +250°C

Cable data (PUR)

construction

4 x AWG 34

insulation

TPFK

outer sheath

PUR

sheath colour

black

outer diameter

approx. 2,5 mm

operating voltage

max. 150 V

temperature range

-40°C / +90°C (125°C 2500h)

construction

4 x AWG 34

insulation

TPFK

outer sheath

PUR

sheath colour

black

outer diameter

approx. 2,5 mm

operating voltage

max. 150 V

temperature range

-40°C / +90°C (125°C 2500h)

Cable data (Silicone)

construction

4 x AWG 30

insulation

TPFK

outer sheath

Silicone

sheath colour

turquoise

outer diameter

approx. 2,7 mm

operating voltage

max. 150 V

temperature range

-25°C / +180°C

construction

4 x AWG 30

insulation

TPFK

outer sheath

Silicone

sheath colour

turquoise

outer diameter

approx. 2,7 mm

operating voltage

max. 150 V

temperature range

-25°C / +180°C

Configuration example

item no. Sheath material length "L" [mm]
S3031-1042-00600TPFK6000 mm Send inquiry
S3032-1042-00600PUR6000 mm Send inquiry
S3033-1042-00600Silicone6000 mm Send inquiry
item no.
Sheath material
length "L" [mm]
S3031-1042-00600
TPFK
6000 mm
S3032-1042-00600
PUR
6000 mm
S3033-1042-00600
Silicone
6000 mm

SAB identification: item number, batch number
