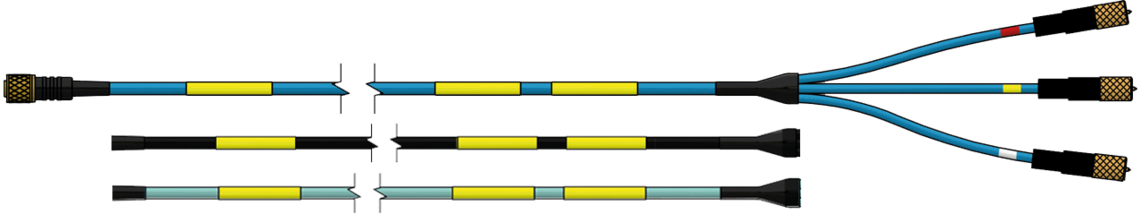

Connection cable
female connector 4-pole ¼- 28 and 3x Microdot male connector 10-32
Application
for the connection of triaxial acceleration sensors with charge outlet (IEPE)
Additional information
Further service aspects:
Individual marking by shrinkable sleeve as for example material number or barcode
Connector
| side | female connector 4-pin ¼- 28* *please indicate your sensor type! |
|---|---|
| side | 3x Microdot male connector 10-32 UNF |
female connector 4-pin ¼- 28*
*please indicate your sensor type!
3x Microdot male connector 10-32 UNF
Cable data (TPFK)
| construction | 4 x AWG 34 |
|---|---|
| insulation | TPFK |
| outer sheath | TPFK |
| sheath colour | blue |
| outer diameter | approx. 2,1 mm |
| operating voltage | max. 150 V |
| temperature range | -55°C / +250°C |
| special characteristics | resistant to high temperatures |
4 x AWG 34
TPFK
TPFK
blue
approx. 2,1 mm
max. 150 V
-55°C / +250°C
resistant to high temperatures
Cable data (PUR)
| construction | 4 x AWG 34 |
|---|---|
| insulation | TPFK |
| outer sheath | PUR |
| sheath colour | black |
| outer diameter | approx. 2,5 mm |
| operating voltage | max. 150 V |
| temperature range | -40°C / +90°C (125°C 2500h) |
| special characteristics | mechanically more robust |
4 x AWG 34
TPFK
PUR
black
approx. 2,5 mm
max. 150 V
-40°C / +90°C (125°C 2500h)
mechanically more robust
Cable data (Silicone)
| construction | 4 x AWG 30 |
|---|---|
| insulation | TPFK |
| outer sheath | Silicone |
| sheath colour | turquoise |
| outer diameter | approx. 2,7 mm |
| operating voltage | max. 150 V |
| temperature range | -25°C / +180°C |
| special characteristics | highest flexibility |
4 x AWG 30
TPFK
Silicone
turquoise
approx. 2,7 mm
max. 150 V
-25°C / +180°C
highest flexibility
Configuration example
| item no. | Sheath material | length "L" [mm] | |
|---|---|---|---|
| S3031-1032-00100 | TPFK | 6000 mm | Send inquiry |
| S3032-1032-00100 | PUR | 6000 mm | Send inquiry |
| S3033-1032-00100 | Silicone | 6000 mm | Send inquiry |
SAB identification: item number, batch number
