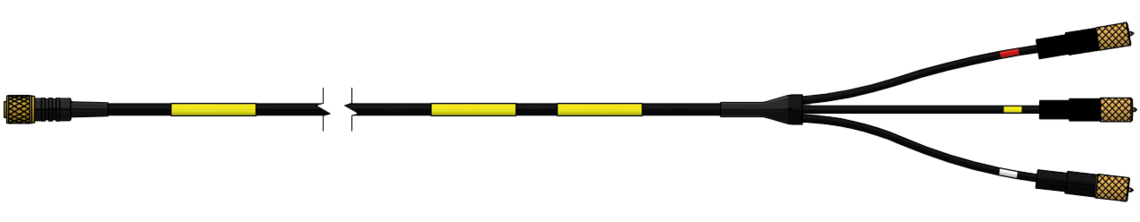

Connection cable

4-pole ¼ 28 female connector and 3x Microdot male connector 10-32

Application

Sensor cable for connecting a triaxial acceleration sensor with charge output (Charge)

Outstanding features

  • chargeable
  • resistant to high temperatures up to +250°C

Additional information

  • Further service aspects: Individual marking by shrinkable sleeve as for example internal material number or barcode
  • also possible with Microdot female connector

Connector

side 1

4-pole ¼ 28 UNF female connector*

*please indicate your sensor type!

side

Microdot male connector 10-32 UNF

side 1

4-pole ¼ 28 UNF female connector*

*please indicate your sensor type!

side

Microdot male connector 10-32 UNF

Cable data

construction

3x (1 x 0,20 mm Ø)

insulation

TPFK

outer sheath

TPFK

sheath colour

black

outer diameter

approx. 3,2 mm

operating voltage

max. 375 V

temperature range

-55°C / +250°C

construction

3x (1 x 0,20 mm Ø)

insulation

TPFK

outer sheath

TPFK

sheath colour

black

outer diameter

approx. 3,2 mm

operating voltage

max. 375 V

temperature range

-55°C / +250°C

Configuration example

item no. Sheath material length "L" [mm]
S3041-1032-00400TPFK4000 mm Send inquiry
item no.
Sheath material
length "L" [mm]
S3041-1032-00400
TPFK
4000 mm

SAB identification: item number, batch number
