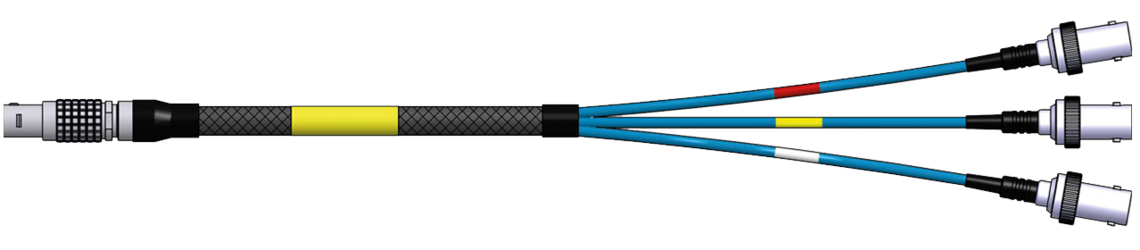

Adapter cable
Lemo male connector 9-pin, G coded and 3x BNC female connector
Application
Adapter cable for the adaptation of a sensor cable with 3x BNC male connector to fo example Müller BBM measuring technique
Additional information
- Further service aspects: Individual marking by shrinkable sleeve as for example internal material number or barcode
- also possible with BNC male connector
Connector
| side 1 | Lemo male connector 9-pin, G coded |
|---|---|
| side 2 | 3x BNC female connector |
side 1
Lemo male connector 9-pin, G coded
side 2
3x BNC female connector
Cable data
| construction | 3 x (1 x 0,20 mm Ø) braiding tube |
|---|---|
| insulation | TPFK |
| outer sheath | TPFK |
| sheath colour | blue |
| outer diameter | approx. 1,7 mm |
| operating voltage | max. 375 V |
| temperature range | -55°C / +250°C |
construction
3 x (1 x 0,20 mm Ø) braiding tube
insulation
TPFK
outer sheath
TPFK
sheath colour
blue
outer diameter
approx. 1,7 mm
operating voltage
max. 375 V
temperature range
-55°C / +250°C
Configuration example
| item no. | Sheath material | length "L" [mm] | |
|---|---|---|---|
| S3061-2011-00030x | TPFK | 500 mm | Send inquiry |
item no.
Sheath material
length "L" [mm]
SAB identification: item number, batch number
